Product Details:
Payment & Shipping Terms:
|
| Brand: | Panasonic | Model Number: | MSMA012S1G |
|---|---|---|---|
| Country Of Origin: | Japan | Rated Power: | 100W |
| Frequency:: | 50/60Hz | Output (W): | 0.18KW-315KW |
| Rated Input Voltage: | 200 V | Frequency Response: | 2.3 KHz |
| Rated Speed: | 3000rpm | Shaft Diameter: | 14 Mm |
| Highlight: | ewing machine servo motor,ac servo motor |
||

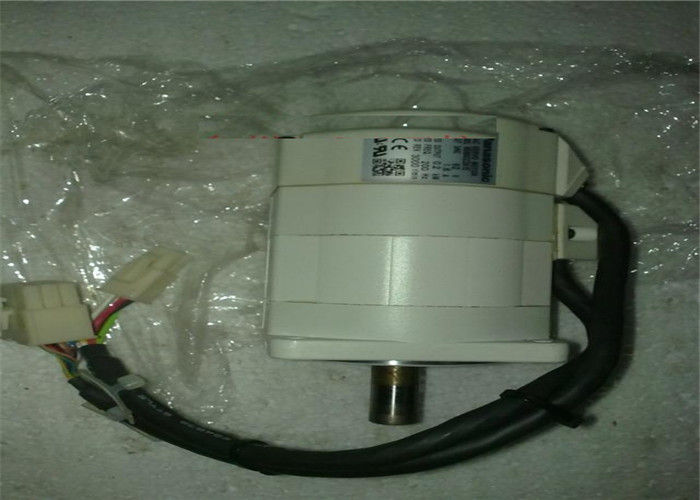

MSMA012S1G Panasonic Industrial Control System Industrial Servo Motor
The Panasonic MSMA012S1G is a high-performance, compact AC servo motor designed for precision industrial automation applications. It belongs to Panasonic's MINAS A4 series, renowned for its advanced control capabilities, high responsiveness, and robust design. This motor is engineered to deliver reliable and accurate motion control in demanding environments, making it suitable for a wide range of automated machinery. It features a sophisticated absolute encoder and supports various control modes for flexible integration into complex systems
Rated Output Power: 0.1 kW
Rotor Inertia: 0.003 kg·cm²
Weight: 0.56 kg
Static Friction Torque: 0.29 N·m or more
Encoder: 23-bit absolute encoder (8,388,608 resolution), 7-wire serial
Control Modes: Supports Position, Speed, Torque, Position/Speed, Position/Torque, Speed/Torque, and Full-closed control modes
Feedback: Supports external scale feedback (Phase A/B)
I/O Interface: 10 general-purpose inputs, 6 general-purpose outputs, 3 analog inputs (16-bit & 12-bit), 2 analog outputs, 2 pulse inputs, 4 pulse outputs
Communication Interfaces: USB (for parameter setting), RS-232 (1:1), RS-485 (1:n, up to 31 units)
Safety Function: Dedicated connector for Functional Safety
Regeneration: External regenerative resistor required
Dynamic Brake: Built-in
Environmental Rating:
Operating Temperature: 0 °C to 55 °C (free from freezing)
Storage Temperature: -20 °C to 65 °C
Humidity: 20% to 85% RH (free from condensation)
Altitude: Below 1000 m
Vibration: 5.88 m/s² or less at 10-60 Hz
While the provided search results do not explicitly detail the specific internal materials, industrial servo motors of this type and caliber typically feature:
Housing: Constructed from high-strength aluminum alloy for effective heat dissipation and to keep the overall weight low.
Shaft: Made from hardened steel to ensure high torsional stiffness and durability.
Bearings: Precision ball bearings are used to support smooth rotation and long service life.
Windings: Utilizes high-grade copper windings with Class F (or higher) insulation to withstand industrial operating temperatures.
Encoder Assembly: Houses a high-resolution optical encoder system for precise feedback.
Connectors: Industrial-grade connectors for reliable electrical connections.
This servo motor is designed for high-precision industrial automation tasks, including:
Precision CNC Machinery: Such as small milling machines, engravers, and lathes.
Industrial Robotics: Arm joints and actuators in compact robotic systems.
Semiconductor Manufacturing Equipment: Pick-and-place machines, wire bonders, and precision stages.
Packaging Machinery: Controlling feeders, cutters, and sealing units.
Printing and Paper Handling Equipment: Accurate paper feeding and registration.
Medical Automation: Diagnostic equipment and automated lab instruments.
Any application requiring precise control of position, speed, or torque.
|
Parameter Category |
Specification |
Unit / Notes |
|---|---|---|
| Model | MSMA012S1G | - |
| Rated Output | 0.1 | kW |
| Rotor Inertia | 0.003 | kg·cm² |
| Weight | 0.56 | kg |
| Static Friction Torque | ≥ 0.29 | N·m |
| Encoder Type | 23-bit Absolute | (8,388,608 resolution) |
| Max. Command Pulse Frequency | 500k (Optocoupler), 8M (Line Driver) | pps |
| Control Input Voltage | Single-phase 100V ~120V or 200V ~240V | 50/60 Hz |
| Operating Temperature | 0 to +55 | °C |
| Communication Interfaces | USB, RS-232, RS-485 | - |
| I/O | 10 GP Inputs, 6 GP Outputs | - |
The following are some of the drive models, both new and used are stocked:
MSDA3A3A1A MSDA5A3A1A MSDA013A1A
MSDA023A1A MSDA043A1A MSDA083A1A
MDDA103A1A MDDA153A1A MDDA203A1A
MDDA253A1A MDDA303A1A MDDA353A1A
MSDA403A1A MSDA503A1A MSD023A1XXV
MSDA083A1XXV MSD043A1X MSDA043D1A
MQDA043A1A MUDS043A1A MUDS023A1A
MUDS083A1A MUMS082A1E0S MUDS083A1M
MUMA012P1T MUMA022P1T MUMA042P1T
MUMA042P1S MUMA012P1S MUMA022P1S
MUMS082P1S MSDA043A1XXV MSDA013A1XXV
MKDET1505P MLDET2310P MUMA082P1T
MLDET2510P MKDET1310P MUMS042A1AOS
MSM041A211 MQMA042A1E MSMA022P1A
MSM042P1B MSM042AJB MSM011P1N
MQMA022S2P MSM012AJA MSM012P1F
MDMA152S1C MSM042AJA MQMA012C2P
MSMA022A1B MSM021DJE MSD043A1X
MSD043A1XX MSM042A1A MSM5AZA1B
MUMS012C2U1S MUMS012A1F0S MSMZ082A1B
MSD013A1XX MSM012A1A MSMA012C1A
MSDA013D1A MSMA5AZS1A MQMA012P1B
MSMD042P1T MUMS022A1B0S MFM082A1C
MQMA042A1E MSMA022C1A MSMA022C1E
