| Brand: | OMRON | Model: | R7D-BP02L |
|---|---|---|---|
| Origin: | China | Type: | Servo Drive |
| High Light: | ewing machine servo motor,ac servo motor |
||

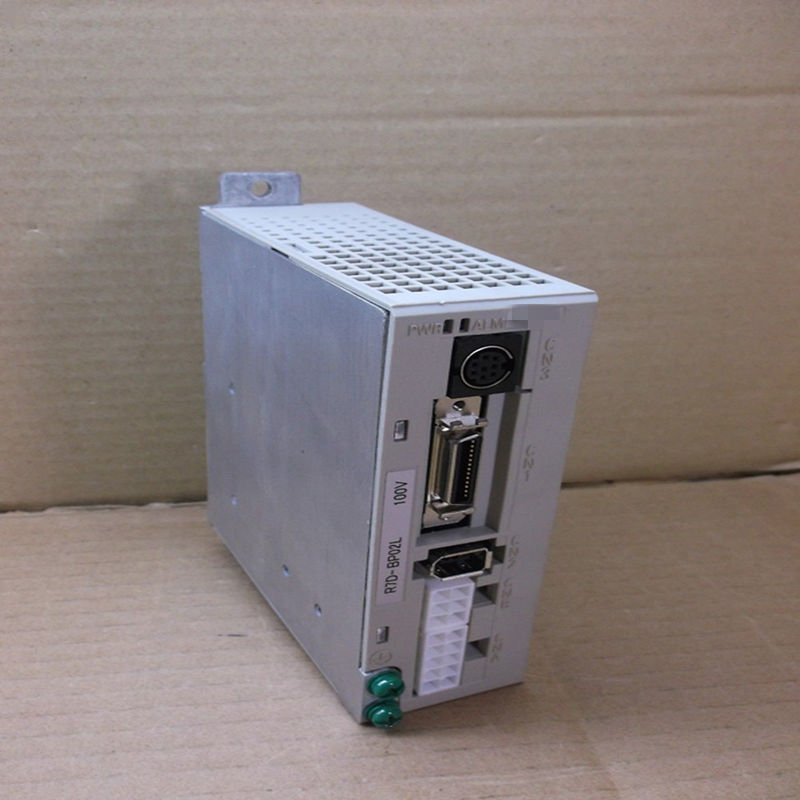

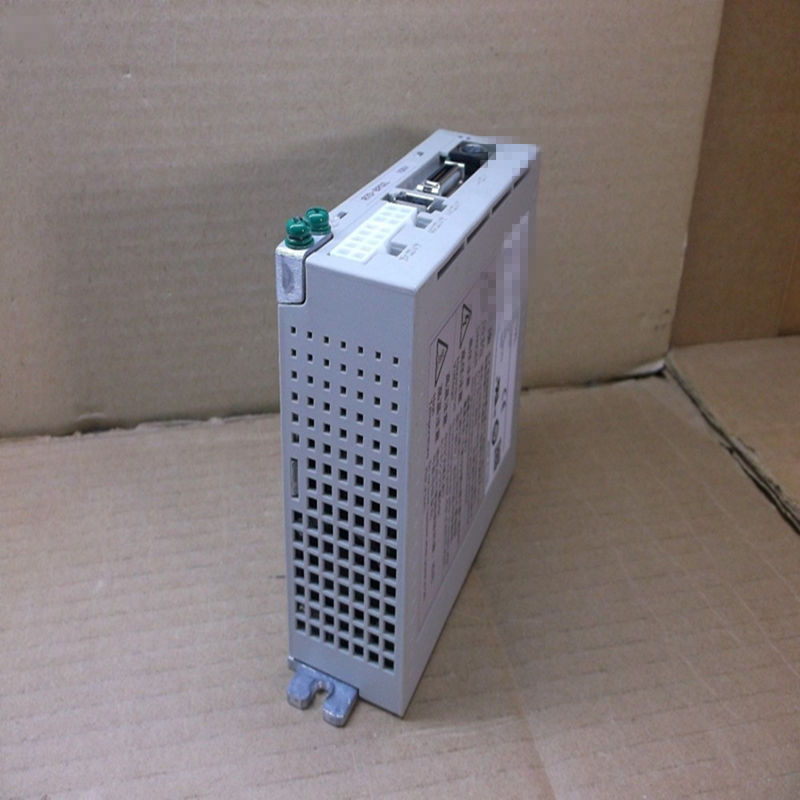

OMRON R7D-BP02L AC Servodriver , Pulse Train Inputs , Single-Phase 100 VAC , 200W
| Item | Specifications | ||
|---|---|---|---|
| Ambient operating temperature Ambient operating humidity |
0 to 55 °C, 90% max. (with no condensation) | ||
| Ambient storage temperature Ambient storage humidity |
-20 to 65 °C, 90% max. (with no condensation) | ||
| Storage and operating atmosphere | No corrosive gasses, no dust, no iron dust, no exposure to moisture or cutting oil |
||
| Vibration resistance | 10 to 60 Hz; acceleration: 5.9 m/s2 (0.6 G) max. | ||
| Impact resistance | Acceleration of 19.6 m/s2 max. 3 times each in X, Y, and Z directions. | ||
| Insulation resistance | Between power supply/power line terminals and frame ground: 0.5 MΩ. min. (at 500 VDC) |
||
| Dielectric strength | Between power supply/power line terminals and frame ground: 1,500 VAC for 1 min at 50/60 Hz Between each control signal and frame ground: 500 VAC for 1 min |
||
| Altitude | 1,000 m above sea level max. (860 hp min.) | ||
| Degree of protection | Built into panel (IP10). | ||
| International standards |
EC Directives |
EMC Directive | EN 55011 class A group 1 EN 61000-6-2 |
| Low Voltage Directive |
EN 50178 | ||
| UL standards | UL 508C | ||
| cUL standards | cUL C22.2 No.14 | ||
| Korean Radio Regulations (KC) |
Certified | ||
| Item | Servo Drive model | ||
|---|---|---|---|
| R7D-BPA5L | R7D-BP01L | R7D-BP02L | |
| Continuous output current (rms) | 1.0 A | 1.6 A | 2.5 A |
| Momentary maximum output current (rms) | 3.3 A | 5.1 A | 7.5 A |
| Power supply capacity | 0.16 KVA | 0.25 KVA | 0.42 KVA |
| Input power supply voltage (main circuit) | Single-phase 100 to 115 VAC (85 to 127 V), 50/60 Hz | ||
| Input power supply current (rms) (main circuit) | 1.4 A | 2.2 A | 3.7 A |
| Heat generated (main circuit) | 12 W | 16 W | 22 W |
| Control method | All-digital servo | ||
| Inverter method | IGBT-driven PWM method | ||
| PWM frequency | 12 kHz | 6 kHz | |
| Maximum response frequency (command pulses) | Line drive: 500 kpps, Open collector: 200 kpps | ||
| Weight | 0.35 kg | 0.42 kg | |
| Applicable motor capacity | 50 W | 100 W | 200 W |
Similar Model Products
| Specifications | Model | |
|---|---|---|
| Single-phase 100 VAC | 50 W | R7D-BPA5L |
| 100 W | R7D-BP01L | |
| 200 W | R7D-BP02L | |
| Single-phase/three-phase 200 VAC | 50 W | R7D-BP01H |
| 100 W | ||
| 400 W | R7D-BP04H | |
| Single-phase 200 VAC | 200 W | R7D-BP02HH |
| Three-phase 200 VAC | 200 W | R7D-BP02H |
