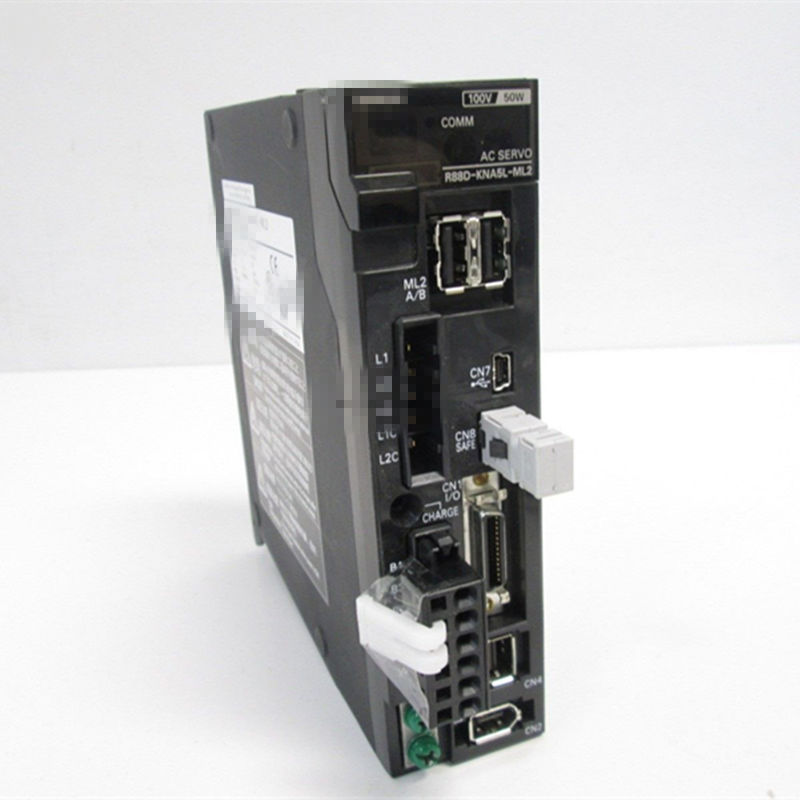

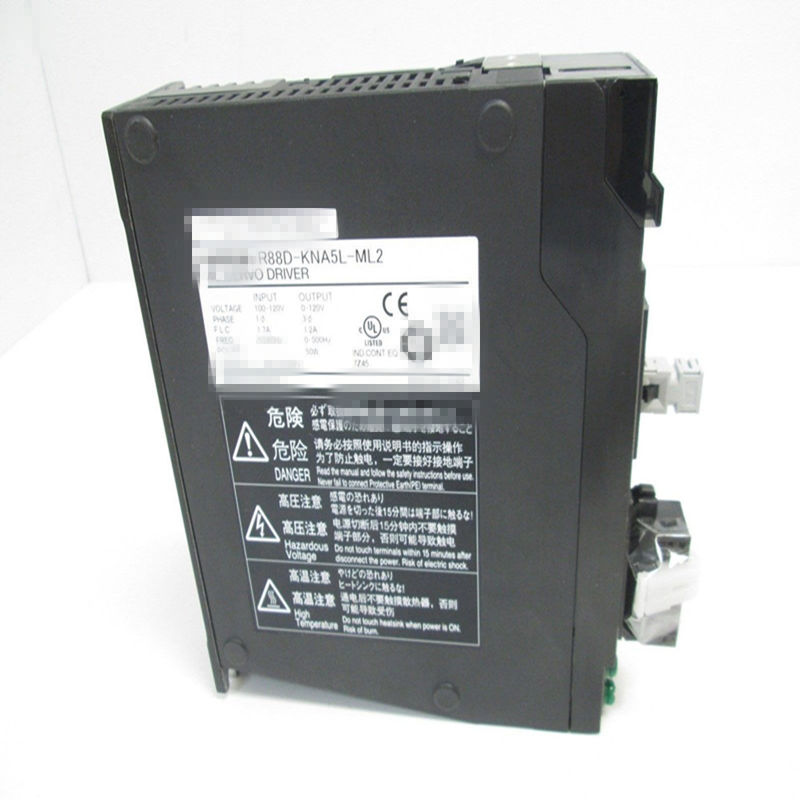

R88D-KNA5L-ML2 OMRON AC Servodriver , MECHATROLINK-II , Single Phase 100 VAC , 50W
Product Details:
| Place of Origin: | China |
| Brand Name: | OMRON |
| Model Number: | R88D-KNA5L-ML2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | New in original box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 |
|
Detail Information |
|||
| Brand: | OMRON | Model: | R88D-KNA5L-ML2 |
|---|---|---|---|
| Origin: | China | ||
| Highlight: | ac servo motor,electric servo motor |
||
Product Description
R88D-KNA5L-ML2 OMRON AC Servodriver , MECHATROLINK-II , Single Phase 100 VAC , 50W
AC Servo Drives
General Specifications
| Item | Specifications | ||
|---|---|---|---|
| Ambient operating temperature and operating humidity |
0 to +55C, 85% max. (with no condensation) | ||
| Storage ambient temperature and humidity | -20 to +65C, 85% max. (with no condensation) | ||
| Operating and storage atmosphere | No corrosive gases | ||
| Vibration resistance | 10 to 60 Hz and at an acceleration of 5.88 m/s2 or less (Not to be run continuously at the resonance point) |
||
| Insulation resistance | Between power supply terminal/power terminal and FG terminal: 0.5 MΩ min. (at 500 VDC Megger) |
||
| Dielectric strength | Between power supply/power line terminals and FG terminal: 1,500 VAC for 1 min at 50/60 Hz |
||
| Protective structure | Built into panel | ||
| International standard |
EC directives | EMC directive | EN55011, EN61000-6-2, IEC61800-3 |
| Low voltage directive |
EN61800-5-1 | ||
| Machinery directives |
EN954-1 (Cat.3), EN ISO 13849-1: 2008 (PLc,d), ISO 13849-1: 2006 (PLc,d), EN61508 (SIL2), EN62061 (SIL2), EN61800-5-2 (STO), IEC61326-3-1 (SIL2) |
||
| UL standards | UL508C | ||
| CSA standards | CSA C22.2 No.14 | ||
| Korean Radio Regulations (KC) | Certified | ||
Note: 1. The above items reflect individual evaluation testing. The results may differ under compound conditions.
Note: 2. Always disconnect all connections to the Servo Drive before you perform insulation resistance tests on it. If you
perform an insulation resistance test while the Servo Drive is connected, the Servo Drive may be damaged.
Never perform dielectric strength tests on the Servo Drive. Failure to follow this precaution may result in
damaging internal elements.
Note: 3. Some Servo Drive parts will require maintenance. For details, refer to the G5 series USER'S MANUAL.
Confirm the Manual No. that is listed in Related Manuals.
Note: 2. Always disconnect all connections to the Servo Drive before you perform insulation resistance tests on it. If you
perform an insulation resistance test while the Servo Drive is connected, the Servo Drive may be damaged.
Never perform dielectric strength tests on the Servo Drive. Failure to follow this precaution may result in
damaging internal elements.
Note: 3. Some Servo Drive parts will require maintenance. For details, refer to the G5 series USER'S MANUAL.
Confirm the Manual No. that is listed in Related Manuals.
Characteristics
Servo Driver with 100 VAC Input Power
for Single-phase input type
| Item | R88D-KNA5L-ML2 | R88D-KN01L-ML2 | R88D-KN02L-ML2 | R88D-KN04L-ML2 | ||
|---|---|---|---|---|---|---|
| Continuous output current (rms) | 1.2 A | 1.7 A | 2.5 A | 4.6 A | ||
| Input power supply |
Main circuit | Power supply capacity |
0.4 KVA | 0.4 KVA | 0.5 KVA | 0.9 KVA |
| Power supply voltage |
Single-phase 100 to 120 VAC (85 to 132 V), 50/60 Hz | |||||
| Rated current | 1.7 A | 2.6 A | 4.3 A | 7.6 A | ||
| Heat value *1 | 11 W | 16.6 W | 21 W | 25 W | ||
| Control circuit |
Power supply voltage |
Single-phase 100 to 120 VAC (85 to 132 V), 50/60 Hz | ||||
| Heat value *1 | 4 W | 4 W | 4 W | 4 W | ||
| Weight | Approx. 0.8 kg | Approx. 0.8 kg | Approx. 1.0 kg | Approx. 1.6 kg | ||
| Maximum applicable motor capacity | 50 W | 100 W | 200 W | 400 W | ||
| Applicable Servo- motors (R88M-) |
3,000 r/min Servomotors |
[INC] | K05030H | K10030L | K20030L | K40030L |
| [ABS] | K05030T | K10030S | K20030S | K40030S | ||
| 2,000 r/min Servomotors |
[ABS] | - | - | - | - | |
| 1,000 r/min Servomotors |
[ABS] | - | - | - | - | |
Similar Model Products
| Specifications | Model | |
|---|---|---|
| Power Model Supply Voltage | Applicable Servomotor Capacity | |
| Single-phase 100 VAC |
50 W | R88D-KNA5L-ML2 |
| 100 W | R88D-KN01L-ML2 | |
| 200 W | R88D-KN02L-ML2 | |
| 400 W | R88D-KN04L-ML2 | |
| Single-phase/three-phase 200 VAC |
100 W | R88D-KN01H-ML2 |
| 200 W | R88D-KN02H-ML2 | |
| 400 W | R88D-KN04H-ML2 | |
| 750 W | R88D-KN08H-ML2 | |
| 1 kW | R88D-KN10H-ML2 | |
| 1.5 kW | R88D-KN15H-ML2 | |
| Three-phase 200 VAC |
2 kW | R88D-KN20H-ML2 |
| 3 kW | R88D-KN30H-ML2 | |
| 5 kW | R88D-KN50H-ML2 | |
| Three-phase 400 VAC |
600 W | R88D-KN06F-ML2 |
| 1 kW | R88D-KN10F-ML2 | |
| 1.5 kW | R88D-KN15F-ML2 | |
| 2 kW | R88D-KN20F-ML2 | |
| 3 kW | R88D-KN30F-ML2 | |
| 5 kW | R88D-KN50F-ML2 | |
