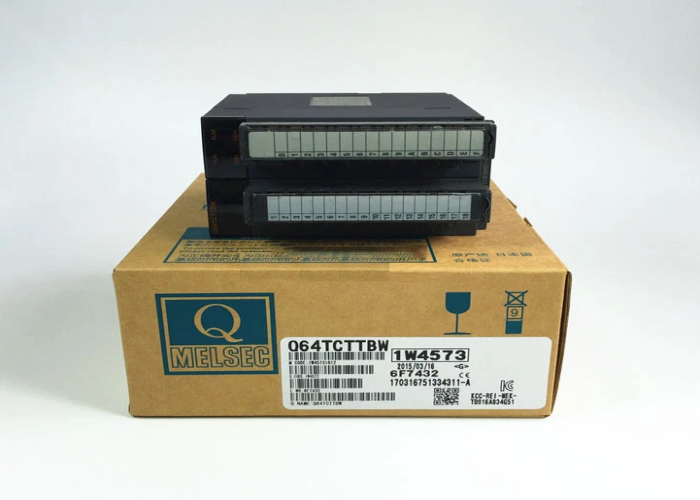

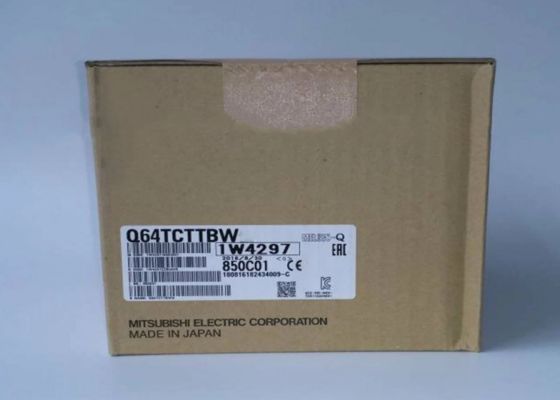

Q64TCTTBW Mitsubishi Universal Model Redundant Power Supply Module 100 To 240 V AC

Q64TCTTBW Description

Q64TCTTBW Features

• •
  Four-Channel Input:Can connect up to four thermocouples simultaneously, saving space and cost compared to using individual transmitters.
• •
  High-Speed Sampling:Offers a fast conversion speed of 80ms per channel (320ms for all 4 channels), enabling quick response to temperature changes.
• •
  Wide Thermocouple Support:Compatible with a broad range of international thermocouple types (e.g., J, K, T, R, S, B, E, N, PLII, W5Re/W26Re), providing great flexibility for different application requirements and temperature ranges.
• •
  High Accuracy:Features high resolution (for some types up to 0.1°C) and accuracy, ensuring reliable temperature measurement for critical processes.
• •
  Built-in Cold Junction Compensation:Includes an integrated compensation circuit, eliminating the need for an external cold junction compensator and simplifying wiring.
• •
  Disconnection Detection Function:Can automatically detect if a thermocouple wire is broken (open circuit) and notify the PLC CPU, which is crucial for alarm and safety functions.
• •
  Easy Configuration with GX Works2:All parameters, including thermocouple type, temperature range, and alarm settings, are easily configured using Mitsubishi's GX Works2 engineering software, eliminating the need for manual scaling in the ladder logic program.

Q64TCTTBW Material & Applications

• •
  Materials:The module casing is constructed from robust, flame-retardant plastic. The terminal block uses high-quality heat-resistant materials. The internal electronic components are mounted on a printed circuit board with precision analog-to-digital converters.
• •
  Primary Applications:
  • •
    Plastic Injection Molding Machines:For barrel and nozzle temperature control.
  • •
    Heat Treatment and Industrial Furnaces:For monitoring and controlling furnace temperatures.
  • •
    Food and Beverage Processing:For cooking, pasteurization, and sterilization processes.
  • •
    Environmental Chambers:For precise temperature monitoring and profiling.
  • •
    HVAC Systems:For monitoring high-temperature stages in large commercial systems.

Q64TCTTBW Important Parameters

性能仕様
