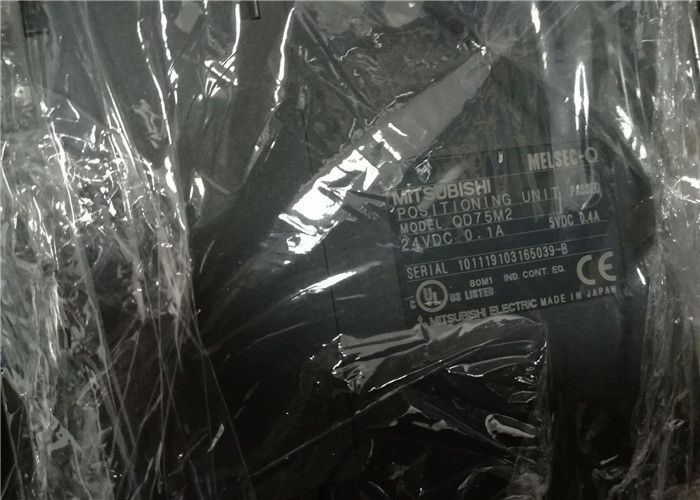

Mitsubishi QD75M2 Universal model Redundant Power Supply Module
Model: QD75M2
2-axes.
2-axis linear interpolation.
QD75M1 2-axis circular interpolation.
control unit: mm.
QD75M1 inch.
degree.
pulse.
no.of positioning data: 600/axis.
40-pin connector.
A connector is not provided.The A6CON1/A6CON2/A6CON3/A6CON4 connector must be ordered separately
Mitsubishi QD75M2
Model: QD75MH4
4-axes.
2-/3-/4-axis linear interpolation.
2-axis circular MITSUBISHI QD75M1 interpolation.
control unit: mm.
inch.
degree.
pulse.
no.of positioning data: 600/axis.
MITSUBISHI QD75M1 40-pin connector.
with SSCNET 3 connectivity.
A connector is not provided.The MITSUBISHI QD75M1 A6CON1/A6CON2/A6CON3/A6CON4 connector must be ordered separately.
Model: QD75MH2
2-axes.
2-axis linear interpolation.
2-axis circular interpolation.
control unit: mm.
inch.
degree.
pulse.
no.of positioning data: 600/axis.
40-pin connector.
with SSCNET 3 connectivity.
A connector is not provided.The A6CON1/A6CON2/A6CON3/A6CON4 connector must be ordered separately.
Model: QD75M1
1-axis.
control unit: mm.
inch.
degree.
pulse.
no.of positioning data: 600/axis.
40-pin connector.
A connector is not provided.The A6CON1/A6CON2/A6CON3/A6CON4 connector must be ordered separately.
Model: QD75MH1
1-axis.
control unit: mm.
inch.
degree.
pulse.
no.of positioning data: 600/axis.
40-pin connector.
with SSCNET 3 connectivity.
A connector is not provided.The A6CON1/A6CONN2/A6CON3/A6CON4 QD75M1 connector must be ordered separately.
| Attribute |
Value |
| For Use With |
MELSEC Q Series |
| Number of I/O |
2048 |
| Manufacturer Series |
MELSEC Q |
| Input Type |
Analogue, Digital |
| Voltage Category |
5 V dc |
| Output Type |
Analogue, Digital |
| Communication Port Type |
RS232C |
| Program Capacity |
32 kB |
| Programming Interface |
Computer, Operating Panel |
| Length |
89.3mm |
| Maximum Inputs/Outputs |
8192 |
| Number of Communication Ports |
1 |
| Width |
27.4mm |
| Maximum Operating Temperature |
+55°C |
| Dimensions |
89.3 x 27.4 x 98 mm |
| Depth |
98mm |
| Battery Backup |
Yes |
| Minimum Operating Temperature |
0°C |
| Mounting Type |
DIN Rail |
| Memory |
94 kB |
