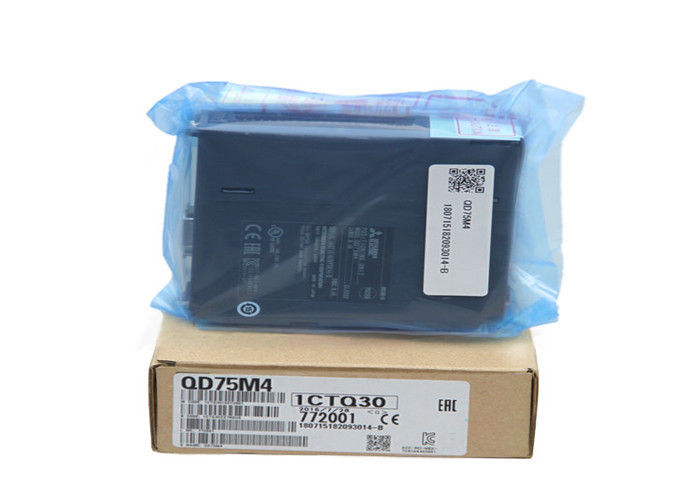

QD75M4 Mitsubishi Universal model Redundant Power Supply Module
QD75M4 Description
The Mitsubishi QD75M4 is a high-performance, 4-axis positioning module designed for the Mitsubishi Q Series PLC. It utilizes Mitsubishi's SSCNET (Servo System Controller Network) high-speed bus connection for communication with servo amplifiers, significantly reducing wiring complexity compared to pulse train output modules
. This module is engineered for precise motion control in industrial automation applications, supporting multiple control units and advanced interpolation functions for complex multi-axis movements
QD75M4 Features
- •
High-Speed SSCNET Connection: Employs a high-speed SSCNET interface for communication with compatible servo drives, enabling faster data exchange and reduced wiring (maximum cable length of 30 meters)
.
- •
Multi-Axis Interpolation: Capable of sophisticated 2-axis, 3-axis, and 4-axis linear interpolation, as well as 2-axis circular interpolation, allowing for complex contouring and path control
.
- •
Extensive Positioning Data Storage: Supports up to 600 positioning data sets per axis, which can be programmed and managed via sequential control programs or dedicated configuration software
.
- •
Versatile Control Modes: Offers a wide range of control modes including PTP (Point-to-Point) control, speed control, path control, and various switching controls (speed-position, position-speed) in both incremental and absolute systems
.
- •
Flexible Control Units: Allows programming and operation in various units: millimeters (mm), inches (inch), degrees (degree), and pulses (pulse), providing flexibility for different mechanical systems and application requirements
.
- •
Software Support: Configuration, monitoring, and debugging are facilitated using software tools like GX Configurator-QP, simplifying setup and maintenance
.
QD75M4 Material & Primary Usage
- •
Material: The module is constructed from electronic components and plastics, housed in a standard module casing designed for installation on a DIN rail or within a control cabinet.
- •
Primary Usage: The QD75M4 is primarily used in industrial automation systems that require precise multi-axis coordinated motion control. Typical applications include
:
- •
CNC machinery and machining centers.
- •
Semiconductor manufacturing and packaging equipment.
- •
Electronic component assembly and insertion machines.
- •
Automated welding systems in automotive manufacturing.
- •
Precision material handling and packaging systems.
- •
Robotics and other applications demanding high-accuracy positioning.
QD75M4 Key Product Parameters
|
Parameter Category
|
Specification Details
|
| Model |
Mitsubishi QD75M4 |
| Control Axes |
4 axes |
| Interface Type |
SSCNET high-speed bus |
| Interpolation Functions |
2/3/4-axis linear interpolation; 2-axis circular interpolation |
| Control Modes |
PTP (Incremental/Absolute), Path Control, Speed Control, Speed-Position Switch, Position-Speed Switch |
| Positioning Data Capacity |
600 data sets per axis |
| Control Units |
Millimeter (mm), Inch (inch), Degree (degree), Pulse (pulse) |
| Positioning Range (Absolute System) |
Pulse: -2147483648 to 2147483647
mm: -214748364.8 to 214748364.7
inch: -21474.83648 to 21474.83647
Degree: 0 to 359.99999 |
| Command Speed Range |
1 to 1000000 Pulse/s
0.01 to 20000000.00 mm/min
0.001 to 2000000.000 inch/min
0.001 to 2000000.000 degree/min |
| Acceleration/Deceleration |
Trapezoidal or S-curve pattern; Time setting range: 1 to 8388608 ms |
| Physical Dimensions (H × W × D) |
98 mm × 27.4 mm × 90 mm |
| Weight |
0.16 kg |
| I/O Points Occupied |
32 dedicated I/O points |
| Internal Current Consumption |
5VDC, 0.4A |
| Connector |
40-pin connector for external I/O signals |
Model: QD75M4
4-axes.
2-/3-/4-axis linear QD75M4 interpolation.
2-axis circular interpolation.
control unit: QD75M4 mm.
inch.
degree.
pulse.
no.of positioning data: 600/axis.
40-pin connector.
A connector is not provided.The A6CON1/A6CON2/A6CON3/A6CON4 connector must be ordered separately.
Mitsubishi QD75M4
Model: QD75MH4
4-axes.
MITSUBISHI QD75M4 2-/3-/4-axis linear interpolation.
2-axis circular interpolation.
control unit: mm.
inch.
MITSUBISHI QD75M4 degree.
pulse.
no.of positioning data: 600/axis.
40-pin connector.
MITSUBISHI QD75M4 with SSCNET 3 connectivity.
A connector is not provided.The A6CON1/A6CON2/A6CON3/A6CON4 qd75m4 connector must be ordered separately.
Model: QD75M2
2-axes.
qd75m4 2-axis linear interpolation.
2-axis circular interpolation.
control unit: mm.
inch.
qd75m4 degree.
pulse.
no.of positioning data: 600/axis.
40-pin connector.
A connector is not provided.The A6CON1/A6CON2/A6CON3/A6CON4 connector must be ordered separately
Model: QD75M1
1-axis.
control unit: mm.
inch.
degree.
pulse.
no.of positioning data: 600/axis.
40-pin connector.
A connector is not provided.The A6CON1/A6CON2/A6CON3/A6CON4 connector must be ordered separately.
Model: QD75MH2
2-axes.
2-axis linear interpolation.
2-axis circular interpolation.
control unit: mm.
inch.
degree.
pulse.
no.of positioning data: 600/axis.
40-pin connector.
with SSCNET 3 connectivity.
A connector is not provided.The A6CON1/A6CONN2/A6CON3/A6CON4 MITSUBISHI QD75M4 connector must be ordered separately.
| Attribute |
Value |
| For Use With |
MELSEC Q Series |
| Number of I/O |
2048 |
| Manufacturer Series |
MELSEC Q |
| Input Type |
Analogue, Digital |
| Voltage Category |
5 V dc |
| Output Type |
Analogue, Digital |
| Communication Port Type |
RS232C |
| Program Capacity |
32 kB |
| Programming Interface |
Computer, Operating Panel |
| Length |
89.3mm |
| Maximum Inputs/Outputs |
8192 |
| Number of Communication Ports |
1 |
| Width |
27.4mm |
| Maximum Operating Temperature |
+55°C |
| Dimensions |
89.3 x 27.4 x 98 mm |
| Depth |
98mm |
| Battery Backup |
Yes |
| Minimum Operating Temperature |
0°C |
| Mounting Type |
DIN Rail |
| Memory |
94 kB |
