QJ71LP21S-25 Mitsubishi Universal Model Redundant Power Supply Module

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

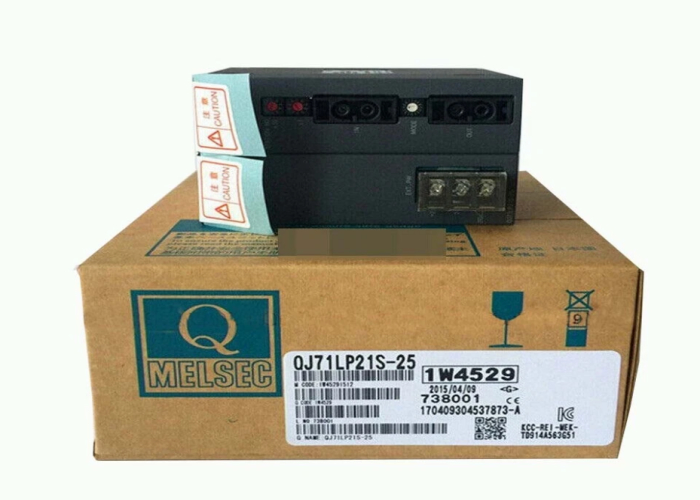

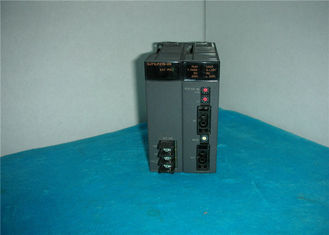

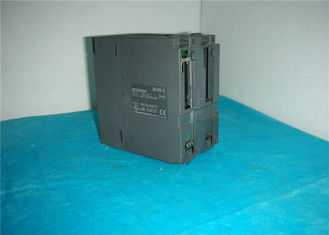

QJ71LP21S-25 Mitsubishi Universal Model Redundant Power Supply Module

Large Image :  QJ71LP21S-25 Mitsubishi Universal Model Redundant Power Supply Module

Product Details:

Place of Origin: Japan
Brand Name: MITSUBISHI
Certification: CE
Model Number: QJ71LP21S-25

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Contact
Packaging Details: new and original
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100
Detailed Product Description
Brand: MITSUBISHI Modenl Number: QJ71LP21S-25
Country Of Origin: Japan Program Capacity: 8 K Steps
Basic Operation Processing Speed (LD Instruction): 0.12 μs Input: 100 To 240 V AC
Output: 5 V DC/3 A Type: Redundant Power Supply Module
Highlight:

analog interface module

,

plc power supply module

QJ71LP21S-25 Mitsubishi Universal model Redundant Power Supply Module





QJ71LP21S-25  Description​

The Mitsubishi QJ71LP21S-25 is a high-performance ​​SI/QSI optical fiber network module​​ designed for the Mitsubishi Q Series programmable logic controller (PLC) systems. It serves as a ​​remote master station​​ within the MELSECNET/H and MELSECNET/10H industrial network systems, supporting high-speed, reliable data communication in large-scale industrial automation applications. This module is engineered for ​​dual-ring​​ network topology, enhancing system redundancy and reliability. It features an ​​external power supply function​​, ensuring stable operation even in demanding environments. It is capable of facilitating communication between PLCs (PLC-to-PLC network) and managing remote I/O stations (remote I/O network), making it ideal for distributed control systems in industries such as manufacturing, process control, and energy



QJ71LP21S-25 Features​

  • ​High-Speed Communication:​​ Supports transmission rates of ​​25 Mbps​​ (10 Mbps in MELSECNET/H mode)

    .



  • ​Dual-Ring Topology:​​ Enhances network reliability and redundancy by providing an alternate communication path in case of a cable break or station failure

    .



  • ​Large Network Capacity:​​ Supports up to ​​64 stations​​ in a PLC-to-PLC network (1 control station, 63 normal stations) and up to ​​65 stations​​ in a remote I/O network (1 remote master station, 64 remote I/O stations)

    .



  • ​Extended Distance:​​ Supports a total network distance of up to ​​30 km​​, with maximum distances between stations varying from 200 meters to 1 kilometer depending on the cable type and transmission speed

    .



  • ​High Data Capacity:​​ Offers substantial network points: LX/LY (8192 points), LB (16384 points), and LW (16384 points)

    .



  • ​External Power Supply:​​ Features an external power supply input (DC 20.4-31.2V) for enhanced operational stability

    .



  • ​Robust Communication Protocol:​​ Utilizes a token bus communication method, frame synchronization, and HDLC frame format with CRC error control and timeout retry for data integrity

    .



QJ71LP21S-25 Material & Primary Applications​

  • ​Material:​​ The module is constructed with industrial-grade electronic components, typically including a printed circuit board (PCB) with integrated circuits, optical interfaces, and a robust plastic or metal housing. The specific material composition is proprietary to Mitsubishi but is designed for durability and reliable operation in industrial environments.

  • ​Primary Applications:​​ It is widely used in large-scale industrial automation systems requiring high-speed and reliable data communication, including:

    • ​Factory Automation:​​ Connecting multiple PLCs, remote I/O stations, and intelligent device stations across a large manufacturing floor

      .



    • ​Process Control:​​ Monitoring and controlling distributed processes in industries like chemical, oil & gas, and water treatment

      .



    • ​Power Distribution Systems:​​ Integrating control and monitoring systems in power generation and distribution facilities

      .



QJ71LP21S-25 Key Parameters​

The following table summarizes the key specifications of the Mitsubishi QJ71LP21S-25 module.

Parameter Category

Specification

Details / Value

​Model Number​   QJ71LP21S-25
​Module Type​   MELSECNET/H Network Module (SI/QSI Optical Fiber, Remote Master Station)
​Network Types​   PLC-to-PLC Network, Remote I/O Network
​Number of Stations​ PLC-to-PLC 64 stations (1 Control, 63 Normal)
  Remote I/O 65 stations (1 Remote Master, 64 Remote I/O)
​Transmission Speed​   25 Mbps, 10 Mbps (MELSECNET/H mode: 10 Mbps)
​Network Topology​   Dual Ring
​Total Network Distance​   30 km
​Station Distance (25Mbps)​ SI Cable 200 m
  H-PCF Cable 400 m
  Broadband H-PCF / QSI 1 km
​I/O Points (Max)​ LX/LY 8192 points
  LB 16384 points
  LW 16384 points
​External Power Supply​ Voltage DC 20.4 - 31.2 V
  Current 0.20 A
​Internal Consumption (DC5V)​   0.55 A
​Connection Cable​   SI, H-PCF, Broadband H-PCF, QSI Fiber Cable
​Connector Type​   2-core Optical Fiber Plug
​Dimensions (H x W x D)​   98 mm x 55.2 mm x 90 mm
​Weight​   0.20 kg
