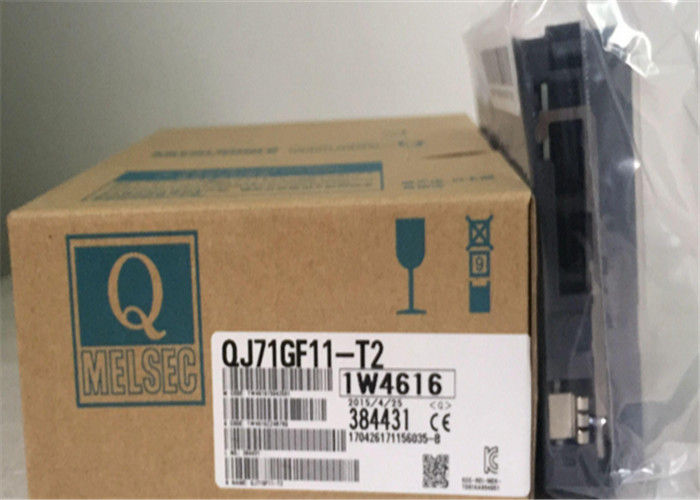

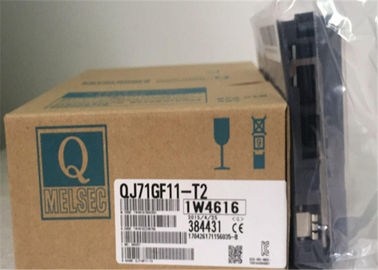

QJ71GF11-T2 Mitsubishi Universal Model Redundant Power Supply Module 100 To 240 V AC
Product Details:
| Place of Origin: | Japan |
| Brand Name: | MITSUBISHI |
| Certification: | CE |
| Model Number: | QJ71GF11-T2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact |
| Packaging Details: | new and original |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, Western Union,paypal |
| Supply Ability: | 100 |
|
Detail Information |
|||
| Brand: | MITSUBISHI | Modenl Number: | QJ71GF11-T2 |
|---|---|---|---|
| Country Of Origin: | Japan | Program Capacity: | 8 K Steps |
| Basic Operation Processing Speed (LD Instruction): | 0.12 μs | Input: | 100 To 240 V AC |
| Output: | 5 V DC/3 A | Type: | Redundant Power Supply Module |
| Highlight: | analog interface module,diode redundancy module |
||
Product Description
QJ71GF11-T2 Mitsubishi Universal model Redundant Power Supply Module
QJ71GF11-T2 Description
The Mitsubishi QJ71GF11-T2 is a CC-Link IE Field Network Master/Local module designed for the MELSEC-Q series of programmable logic controllers (PLCs). It enables high-speed, large-capacity data communication within an industrial network, allowing a master station to communicate with multiple slave stations. This module utilizes Gigabit Ethernet (1000BASE-T) technology, supporting communication speeds of up to 1 Gbps. It is designed to work specifically with Mitsubishi's General-purpose CPUs (with specific serial number requirements) and cannot be used with High-performance CPUs. Its primary function is to facilitate robust and flexible industrial network topologies for streamlined automation control
QJ71GF11-T2 Features
- •
High-Speed Communication: Supports a communication speed of 1 Gbps using standard 1000BASE-T Ethernet technology, enabling extremely fast data exchange and reduced cycle times
. - •
Flexible Network Topologies: Supports linear, star, and ring network topologies, or a mixture of these. This provides significant flexibility for designing network layouts to suit different factory floor configurations
. - •
Large Network Capacity: Can connect up to 121 stations on a single network (1 master station and 120 slave stations), supporting a large number of devices
. - •
High Data Capacity: Offers substantial link points for data exchange, including 16K points each for RX and RY, and 8K points each for RWr and RWw at the network level
. - •
Standard Ethernet Cables: Uses commercially available Category 5e or better shielded twisted-pair (STP) Ethernet cables, which helps reduce wiring costs
. - •
Easy Integration with Programming Tools: Allows for easy connection to programming software like GX Works2. It features automatic cross/straight cable detection and simplified IP setup for direct CPU connections, making network setup easier
.
QJ71GF11-T2 Material & Primary Applications
- •
Material: Constructed from industrial-grade electronic components on printed circuit boards (PCBs), housed within a durable casing designed to withstand the mechanical stress, vibration, and electrical noise typical of industrial environments.
- •
Primary Applications: This module is designed for industrial automation and process control systems where high-speed, reliable data communication is essential. Typical applications include:
- •
Large-scale manufacturing automation lines
- •
Process control systems in industries like chemicals, oil & gas
- •
Building management systems
- •
Water and wastewater treatment plant control
- •
Packaging and material handling systems
- •
QJ71GF11-T2 Key Specifications
