QJ71GF11-T2 Mitsubishi Universal Model Redundant Power Supply Module 100 To 240 V AC

QJ71GF11-T2 Mitsubishi Universal model Redundant Power Supply Module

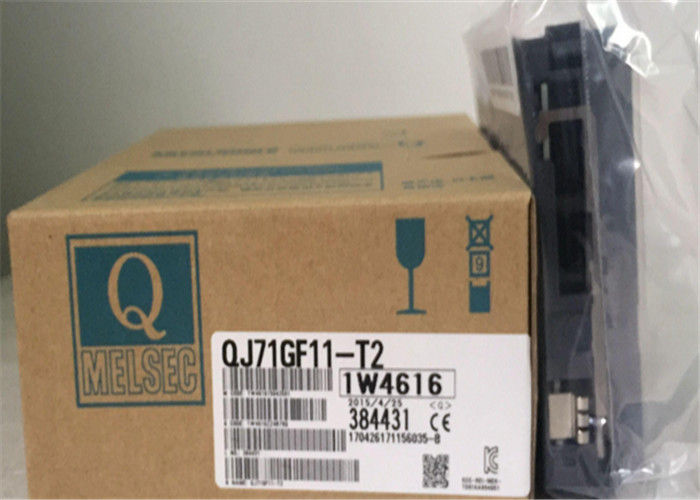

QJ71GF11-T2 Description​​

The Mitsubishi ​​QJ71GF11-T2​​ is a ​​CC-Link IE Field Network Master/Local module​​ designed for the MELSEC-Q series of programmable logic controllers (PLCs). It enables high-speed, large-capacity data communication within an industrial network, allowing a master station to communicate with multiple slave stations. This module utilizes Gigabit Ethernet (1000BASE-T) technology, supporting communication speeds of up to ​​1 Gbps​​. It is designed to work specifically with Mitsubishi's ​​General-purpose CPUs​​ (with specific serial number requirements) and cannot be used with High-performance CPUs. Its primary function is to facilitate robust and flexible industrial network topologies for streamlined automation control

​​QJ71GF11-T2 Features​​

• •

  ​​High-Speed Communication​​: Supports a communication speed of ​​1 Gbps​​ using standard 1000BASE-T Ethernet technology, enabling extremely fast data exchange and reduced cycle times

  .



• •

  ​​Flexible Network Topologies​​: Supports ​​linear​​, ​​star​​, and ​​ring​​ network topologies, or a mixture of these. This provides significant flexibility for designing network layouts to suit different factory floor configurations

  .



• •

  ​​Large Network Capacity​​: Can connect up to ​​121 stations​​ on a single network (1 master station and 120 slave stations), supporting a large number of devices

  .



• •

  ​​High Data Capacity​​: Offers substantial link points for data exchange, including 16K points each for RX and RY, and 8K points each for RWr and RWw at the network level

  .



• •

  ​​Standard Ethernet Cables​​: Uses commercially available Category 5e or better shielded twisted-pair (STP) Ethernet cables, which helps reduce wiring costs

  .



• •

  ​​Easy Integration with Programming Tools​​: Allows for easy connection to programming software like GX Works2. It features automatic cross/straight cable detection and simplified IP setup for direct CPU connections, making network setup easier

  .



​​QJ71GF11-T2 Material & Primary Applications​​

• •

  ​​Material​​: Constructed from industrial-grade electronic components on printed circuit boards (PCBs), housed within a durable casing designed to withstand the mechanical stress, vibration, and electrical noise typical of industrial environments.

• •

  ​​Primary Applications​​: This module is designed for industrial automation and process control systems where high-speed, reliable data communication is essential. Typical applications include:

  • •

    Large-scale manufacturing automation lines

  • •

    Process control systems in industries like chemicals, oil & gas

  • •

    Building management systems

  • •

    Water and wastewater treatment plant control

  • •

    Packaging and material handling systems

​​QJ71GF11-T2 Key Specifications​​
