Q81BD-J61BT11 Mitsubishi Universal model Redundant Power Supply Module
Q81BD-J61BT11 Description

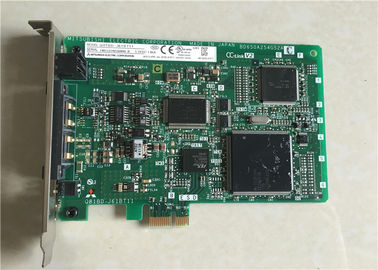

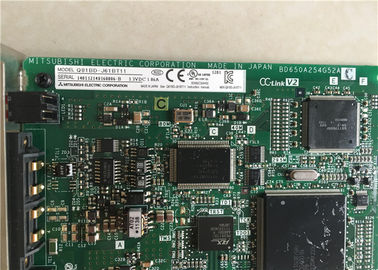

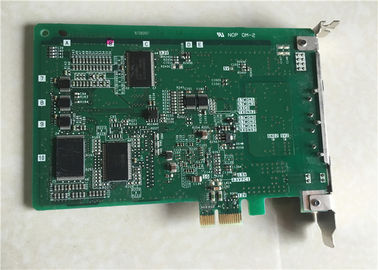

The Mitsubishi Q81BD-J61BT11 is a high-performance CC-Link interface board designed for installation in the PCI Express bus slot of an IBM PC/AT-compatible computer
. It enables the PC to function as a
Master station, Standby Master station, or Local station within a CC-Link network, which is an open-field network system widely used in industrial automation
1. This board is engineered to facilitate high-speed and reliable data exchange between the PC and various CC-Link remote I/O modules, intelligent device stations, and other network components, making it ideal for building integrated control and monitoring systems in manufacturing and process industr
Q81BD-J61BT11 Features
- •
High-Speed Communication: Supports multiple CC-Link transmission rates, including 156 kbps, 625 kbps, 2.5 Mbps, 5 Mbps, and 10 Mbps, allowing optimization based on network distance and requirements
- •
Versatile Station Functionality: Can be configured as a Master (controlling the network), Standby Master (for redundancy), or Local station (for peer-to-peer communication)
.
- •
Large Network Capacity: As a master station, the module can connect to up to 64 logical stations
.
- •
Fast Link Scan Time: Achieves a quick link scan time of 1.2 ms when connecting 64 stations at a transmission rate of 2.5 Mbps, ensuring high-speed data refresh and network responsiveness
.
- •
CC-Link Ver.2 Support: Compatible with the enhanced features of CC-Link Version 2, offering improved performance and functionality
.
- •
Ease of Use: CC-Link/LT remote I/O modules require no parameter settings; only setting the transmission speed on the master module is needed for operation
.
Q81BD-J61BT11 Material & Primary Applications
- •
Material: The board is constructed using industrial-grade electronic components, typically including a printed circuit board (PCB) with integrated circuits, connectors, and a protective bracket. The specific material composition is proprietary to Mitsubishi but is designed for durability and reliable operation in an industrial computing environment.
- •
Primary Applications: It is used in industries such as automotive manufacturing, semiconductor production, and electronics assembly for tasks including
:
- •
Integrating industrial PCs into CC-Link network systems for centralized monitoring and data logging.
- •
Building distributed control systems where a PC acts as a master controller.
- •
Creating redundant network systems using the standby master functionality.
- •
Facilitating communication between a PC and various factory automation devices like PLCs, sensors, actuators, and drives on the CC-Link network.
Q81BD-J61BT11 Key Parameters
The following table summarizes the key specifications of the Mitsubishi Q81BD-J61BT11 module.
|
Parameter Category
|
Specification
|
Details / Value
|
| Model Number |
|
Q81BD-J61BT11 |
| Board Type |
|
CC-Link Interface Board |
| Compatible Bus |
|
PCI Express |
| Supported Station Types |
|
Master, Standby Master, Local Station |
| Maximum Number of Connected Stations (as Master) |
|
64 stations |
| Supported Transmission Rates |
|
156 kbps, 625 kbps, 2.5 Mbps, 5 Mbps, 10 Mbps |
| Link Scan Time |
(64 stations @ 2.5 Mbps) |
1.2 ms |
| CC-Link Protocol Version |
|
Ver. 2 |
| Compatible Operating Systems |
|
Japanese, English |
| Isolation |
