Q80BD-J71LP21S-25 Mitsubishi Universal Model Redundant Power Supply Module

Name: Q80BD-J71LP21S-25 Mitsubishi Universal Model Redundant Power Supply Module
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: Q80BD-J71LP21S-25
Price: 10000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Japan
Brand Name:	MITSUBISHI
Certification:	CE
Model Number:	Q80BD-J71LP21S-25

Detail Information

Place of Origin:

Japan

Brand Name:

MITSUBISHI

Certification:

Model Number:

Q80BD-J71LP21S-25

Brand:

MITSUBISHI

Modenl Number:

Q80BD-J71LP21S-25

Country Of Origin:

Japan

Program Capacity:

8 K Steps

Basic Operation Processing Speed (LD Instruction):

0.12 μs

Input:

100 To 240 V AC

Output:

5 V DC/3 A

Type:

Redundant Power Supply Module

Highlight:

High Light

Highlight:

analog interface module

diode redundancy module

Trading Information

Minimum Order Quantity:

Price:

Contact

Packaging Details:

new and original

Delivery Time:

5-7 days

Payment Terms:

T/T, Western Union,paypal

Supply Ability:

100

Product Description

Mitsubishi Universal model Q80BD-J71LP21S-25 Redundant Power Supply Module

Q80BD-J71LP21S-25 Description

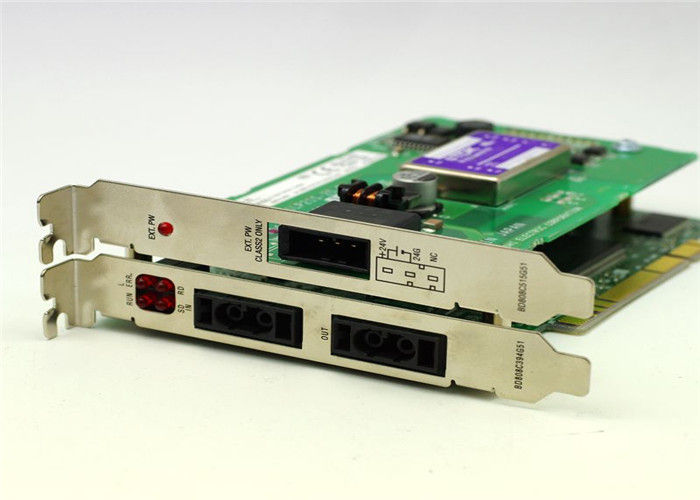

The Mitsubishi Q80BD-J71LP21S-25 is a specialized interface board designed for the MELSEC Q Series of Programmable Logic Controllers (PLCs). This module functions as a main base unit interface, enabling high-speed data communication between the PLC's CPU and a MELSECNET/H network using coaxial bus connections. It is engineered for large-scale, distributed control systems requiring high reliability and deterministic data exchange, such as those found in factory automation, process control, and large-scale machinery. The module allows for the construction of a powerful and resilient control network where multiple PLCs can share data seamlessly.

Q80BD-J71LP21S-25 Features

•
MELSECNET/H Coaxial Bus Connection: Establishes a high-speed, real-time control network using reliable coaxial cables, suitable for creating a data link system between multiple PLC stations.
•
Main Base Unit Interface: Installs directly into the main base unit of a Q Series PLC, serving as the primary network interface for the controlling station.
•
High-Speed Data Transmission: Supports fast cyclic transmission and transient transmission for efficient data sharing and messaging between network modules.
•
Network Diagnostics: Features comprehensive diagnostic functions for monitoring network status, detecting errors, and simplifying system maintenance, thereby improving overall system reliability.
•
Redundant Function Support: Can be used as part of a redundant system to enhance availability and prevent downtime in critical applications.
•
Easy Configuration: Network parameters and data link settings can be conveniently configured using GX Works2, Mitsubishi Electric's standard engineering software.

Q80BD-J71LP21S-25 Material & Applications

•
Material: The module is constructed with a robust metal casing and utilizes high-quality electronic components on a PCB, designed for industrial durability.
•
Primary Applications: This module is used in applications demanding robust and high-speed PLC networking, including:
- •
  Factory Automation (FA) Systems
- •
  High-speed Production Line Control
- •
  Process Control Systems
- •
  Large-scale Building Management Systems
- •
  Systems requiring deterministic data exchange between multiple controllers.

Q80BD-J71LP21S-25 Important Parameters

The following table lists the key technical specifications for the Q80BD-J71LP21S-25 module.

Parameter	Specification
Model	Q80BD-J71LP21S-25
Product Series	MELSEC Q Series
Module Type	MELSECNET/H Coaxial Bus Interface Board (For Main Base)
Network Type	MELSECNET/H (Coaxial Bus)
Transmission Speed	25 Mbps
Connection Method	Coaxial Bus (Dedicated coaxial cable)
Mounting Position	Main Base Unit (Occupies 1 slot)
Required Power Supply	5VDC from the base unit's power supply module
Maximum Stations per Network	64 stations
Maximum Link Points per Station	8,192 points (Cyclic transmission)
Operating Temperature	0°C to 55°C
Storage Temperature	-25°C to 75°C
Compatible Software	GX Works2, GX Developer
Standards / Certifications	CE, UL, cUL, etc. (Please check the latest manual for a complete list)

性能仕様

1ネットワークあたりの最大リンク点数	LX/LY
	LB
	LW
1局あたりの最大リンク点数	PC間ネット
通信速度
最大接続局数	PC間ネット
1ネットワークの総延長距離
最大局間距離
通信ケーブル
適合コネクタ
最大ネットワーク数
最大グループ数
伝送路形式
通信方式
同期方式
符号化方式
伝送フォーマット
誤り制御方式
装着可能枚数
装着スロット
占有スロット
外部供給電源	電圧
	電流
DC5V内部消費電流
質量

8192点

16384点(MELSECNET/10モード時:8192点)

・MELSECNET/Hモード,MELSECNET/10モード:{(LY＋LB)÷8＋(2×LW)}≦2000バイト
・MELSECNET/H拡張モード:{(LY＋LB)÷8＋(2×LW)}≦35840バイト

25Mbps／10Mbps

64局(管理局:1,通常局:63)

30km

SIケーブル:200m(25Mbps),500m(10Mbps)
H-PCFケーブル:400m(25Mbps),1km(10Mbps)
広帯域H-PCFケーブル:1km
QSIケーブル:1km

SI／H-PCF／広帯域H-PCF／QSI　光ファイバケーブル

2芯光コネクタプラグ
F06/F08相当品(JIS C5975/5977準拠)

239

32(MELSECNET/10モード時:9)

二重ループ

トークンリング方式

フレーム同期方式

NRZI方式

HDLC準拠(フレーム形式)

CRC(X¹⁶＋X¹²＋X⁵＋1)およびタイムオーバによるリトライ

最大4枚

PCIスロット(ハーフサイズ)

2スロット

DC20.4～31.2V

0.16A

0.46A

0.20kg

一般仕様

使用周囲温度
保存周囲温度
使用周囲湿度
保存周囲湿度
耐振動	JIS B 3502, IEC 61131-2 に適合	断続的な振動がある場合
		連続的な振動がある場合
耐衝撃
使用雰囲気
使用標高
設置場所
オーバボルテージカテゴリ
汚染度

0～55℃

-25～75℃

5～95％RH,結露なきこと

周波数:5～8.4Hz,片振幅:3.5mm
周波数:8.4～150Hz,定加速度:9.8m/s²
掃引回数:X,Y,Z各方向10回

周波数:5～8.4Hz,片振幅:1.75mm
周波数:8.4～150Hz,定加速度:4.9m/s²

JIS B 3502, IEC 61131-2 に適合
(147m/s²,XYZ3方向各3回)

腐食性ガスがないこと

0～2000m

制御盤内

Ⅱ以下

2以下
