Product Details:
Payment & Shipping Terms:
|
| Brand: | MITSUBISHI | Modenl Number: | Q80BD-J71BR11 |
|---|---|---|---|
| Country Of Origin: | Japan | Program Capacity: | 8 K Steps |
| Basic Operation Processing Speed (LD Instruction): | 0.12 μs | Input: | 100 To 240 V AC |
| Output: | 5 V DC/3 A | Type: | Redundant Power Supply Module |
| Highlight: | analog interface module,diode redundancy module |
||

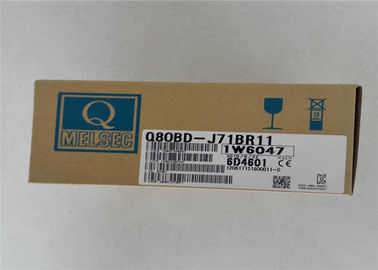

Q80BD-J71BR11 Mitsubishi Universal model Redundant Power Supply Module
The Mitsubishi Q80BD-J71BR11 is a MELSECNET/H coaxial bus interface board designed for the Mitsubishi Q Series PLCs
. It enables high-speed and reliable data communication within industrial automation networks, functioning as either a master or local station in a single-bus system. This board is installed in a PCI slot and supports both Japanese and English operating systems.
High-Speed Network Integration: Facilitates integration into the MELSECNET/H network, a high-performance control network system for PLCs
.
Coaxial Cable Communication: Utilizes 3C-2V/5C-2V coaxial cables for reliable data transmission
.
Large Data Capacity: Supports extensive data exchange points, including 8192 LX/LY points, 16384 LB points, and 16384 LW points, facilitating the handling of large amounts of I/O and register data across the network
.
Seamless System Integration: Part of the Q Series platform, designed for flexible and scalable system configuration to meet diverse control needs
.
CC-Link Compatibility: Offers reliable field bus technology, capable of high-speed transmission of large amounts of bit data (e.g., ON/OFF information) and word data (e.g., analog information), separating cyclic transmission from message (transient transmission) communication to ensure timeliness
.
The primary construction materials are typical for industrial-grade electronic components. The key physical interface involves specific connector plugs (for 3C-2V, 5C-2V, or 5C-FB coaxial cables per JIS standards)
.
Its primary purpose is to provide a high-performance, reliable network connection for Q Series PLCs within a MELSECNET/H control network, enabling efficient data sharing and control between multiple PLCs and intelligent field devices in an industrial automation environment
.
|
Parameter Category |
Specification |
|---|---|
| Network Type |
MELSECNET/H Interface Board (Master/Local Station)
|
| Transmission Medium |
Coaxial Cable (3C-2V/5C-2V per JIS C3501, 5C-FB per JIS C3502)
|
| Connector Type |
Connector plugs for 3C-2V, 5C-2V, 5C-FB
|
| Communication Speed |
10 Mbps
|
| Bus Configuration |
Single-bus
|
| Max. Number of Connectable Stations (PC Network) |
32 stations (1 master, 31 normal stations)
|
| Max. Network Points |
LX/LY: 8192 points
|
| Network Total Distance |
300m (using 3C-2V), 500m (using 5C-2V/5C-FB). Extendable to 2.5km using repeaters
|
| Communication Method |
Token bus
|
| Synchronization Method |
Frame synchronization method
|
| Internal Current Consumption (5VDC) |
0.67 A
|
| Weight |
0.11 kg
|
| Installation Slot | PCI bus |
|
Attribute |
Value |
|---|---|
|
For Use With |
MELSEC Q Series |
|
Number of I/O |
2048 |
|
Manufacturer Series |
MELSEC Q |
|
Input Type |
Analogue, Digital |
|
Voltage Category |
5 V dc |
|
Output Type |
Analogue, Digital |
|
Communication Port Type |
RS232C |
|
Program Capacity |
32 kB |
|
Programming Interface |
Computer, Operating Panel |
|
Length |
89.3mm |
|
Maximum Inputs/Outputs |
8192 |
|
Number of Communication Ports |
1 |
|
Width |
27.4mm |
|
Maximum Operating Temperature |
+55°C |
|
Dimensions |
89.3 x 27.4 x 98 mm |
|
Depth |
98mm |
|
Battery Backup |
Yes |
|
Minimum Operating Temperature |
0°C |
|
Mounting Type |
DIN Rail |
|
Memory |
94 kB |
Model: QJ71FL71-B2-F01
Ver.2.00.
10BASE2
Mitsubishi QJ71FL71-B2-F01
Model: QJ71FL71-B5-F01
Ver.2.00.
10BASE5
Model: MITSUBISHI QJ71FL71-B2-F01 QJ71FL71-B5
Ver.1.00.
10BAASE5
Model: QJ71FL71-B2-F01 QJ71FL71-B2
Ver.1.00.
10BASE2
Similer item we can supply:
|
Q01CPU |
Q02(H)CPU |
Q06HCPU |
|
Q12HCPU |
Q25HCPU |
Q02PHCPU |
|
Q06PHCPU |
Q12PHCPU |
Q25PHCPU |
|
Q00UCPU |
Q01UCPU |
Q02UCPU |
|
Q03UDVCPU |
Q03UD(E)CPU |
Q04UDVCPU |
|
Q04UD(E)HCPU |
Q06UDVCPU |
Q06UD(E)HCPU |
|
Q10UD(E)HCPU |
Q13UDVCPU |
Q13UD(E)HCPU |
|
Q20UD(E)HCPU |
Q26UDVCPU |
Q26UD(E)HCPU |
|
Q50UDEHCPU |
Q50UDEHCPU |
Q50UDEHCPU |
|
Q01UCPU |
Q02CPU |
Q02CPU-A |
