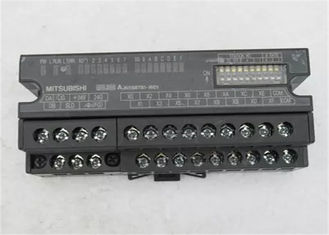

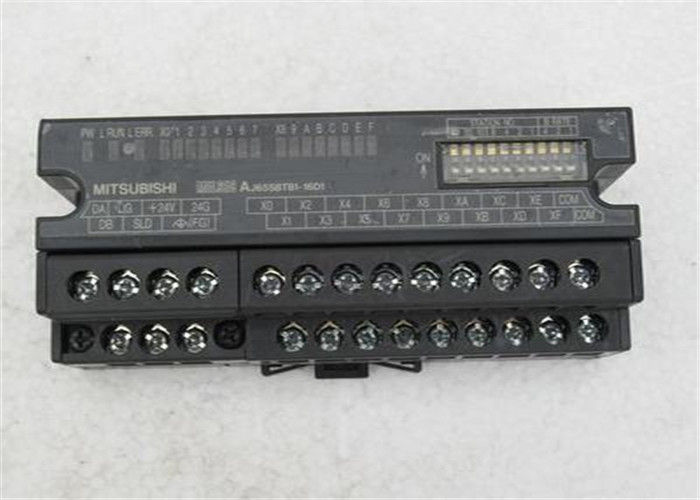

AJ65SBTB1-16D Mitsubishi Universal model Redundant Power Supply Module



AJ65SBTB1-16D Description

The Mitsubishi AJ65SBTB1-16D is a 16-point digital output module designed for the MELSEC-Q series PLC. It functions as a remote terminal block within Mitsubishi's CC-Link network system. This module acts as an interface, receiving output commands from the CC-Link master station (e.g., a Q-series PLC with a master module) and switching the state of its 16 output points to control field devices like relays, solenoids, indicator lamps, and small motors. Its compact, terminal-block style design allows for distributed I/O installation close to the machinery, significantly reducing wiring costs and improving system flexibility.

AJ65SBTB1-16D Features

  • •
    ​​CC-Link Compliance:​​ Fully compatible with the CC-Link open field network, enabling high-speed, reliable communication with the network master station.
  • •
    ​​16 Output Channels:​​ Provides 16 isolated digital output points for controlling various actuators in an automation system.
  • •
    ​​Sinking Output Type:​​ The outputs are of the sinking (current-sinking) type, meaning the common terminal is connected to the positive voltage, and the module sinks current to activate the load.
  • •
    ​​Compact and Space-Saving:​​ The slim, block-type design saves control panel space and allows for installation near sensors and actuators.
  • •
    ​​Easy Wiring:​​ Uses a simple screw terminal block for straightforward and secure wiring connections.
  • •
    ​​Diagnostic LEDs:​​ Equipped with LEDs for power status (PWR), run status (RUN), and communication status (COM), providing quick visual diagnostics for easier maintenance and troubleshooting.
  • •
    ​​Reliable Performance:​​ Designed for high noise immunity and stable performance in industrial environments.

AJ65SBTB1-16D Material and Application

  • •
    ​​Primary Material:​​ The module housing is typically made from robust, flame-retardant plastic (e.g., PBT/PC), suitable for industrial use. The terminals are metal (e.g., plated copper alloy).
  • •
    ​​Usage/Application:​​ This module is used to extend the digital output capabilities of a MELSEC-Q series PLC system via a CC-Link network. It is ideal for applications requiring distributed control, such as:
    • •
      Conveyor systems
    • •
      Packaging machinery
    • •
      Automated assembly lines
    • •
      Material handling systems
    • •
      Any application where centralized control with distributed I/O is beneficial.

AJ65SBTB1-16D Key Parameters

The following table summarizes the most important technical specifications of the AJ65SBTB1-16D.
Parameter
Specification
​​Model​​
AJ65SBTB1-16D
​​Product Type​​
CC-Link Remote Device Station, Digital Output Module
​​Number of Points​​
16 points
​​Output Type​​
Sinking (Current Sinking)
​​Rated Load Voltage​​
24 VDC
​​Maximum Load Current​​
0.5 A / point
​​Maximum Inrush Current​​
3 A / 10 ms or less
​​Leakage Current at OFF​​
0.1 mA or less
​​ON Voltage Drop​​
1.5 V max. (at 0.5 A)
​​Response Time​​
OFF → ON: 1 ms max.
ON → OFF: 1 ms max.
​​Isolation​​
Photocoupler isolation between external power supply and internal logic circuit.
​​External Power Supply​​
24 VDC ±10% (Required for output drives)
​​Power Consumption​​
65 mA (from external 24V supply), 65 mA (from module's 5V bus)
​​Compatible PLC System​​
MELSEC-Q series (via CC-Link master module, e.g., AJ61QBT11)
​​Network​​
CC-Link
​​Connection​​
Screw terminal block


性能仕様

入力仕様
入力形式
入力点数
定格入力電圧
定格入力電流
最大同時入力点数
ON電圧／ON電流
OFF電圧／OFF電流
入力抵抗
入力応答時間 OFF→ON
ON→OFF
入力コモン方式
入力絶縁方式
共通仕様
絶縁耐圧
絶縁抵抗
保護等級
局種別
占有局数
ユニット電源 電圧
電流
外部配線接続方式
外形寸法 高さ(H)
幅(W)
奥行き(D)
質量

DC入力(プラスコモン／マイナスコモン共用タイプ)
16点
DC24V(リップル率5％以内)(許容電圧範囲　DC19.2～26.4V)
約7mA
100％
14V以上／3.5mA以上
6V以下／1.7mA以下
約3.3kΩ
1.5ms以下(DC24V)
1.5ms以下(DC24V)
16点 1コモン(端子台形1線式)
フォトカプラ絶縁

DC外部端子一括とアース間:AC500V　1分間
DC外部端子一括とアース間:DC500V　絶縁抵抗計にて10MΩ以上
IP2X
リモートI/O局
1局
DC20.4～26.4V(リップル率5％以内)
35mA以下(DC24V,全点ON時)
通信部,ユニット電源部:7点2ピース端子台(M3ネジ)
入出力電源部,入出力部:18点直付け端子台(M3ネジ)
50mm
118mm
40mm
0.18kg



一般仕様

使用周囲温度
保存周囲温度
使用周囲湿度
保存周囲湿度
耐振動 JIS B 3502, IEC 61131-2 に適合 断続的な振動がある場合
連続的な振動がある場合
耐衝撃
使用雰囲気
使用標高
設置場所
オーバボルテージカテゴリ
汚染度
0～55℃
-20～75℃
10～90％RH,結露なきこと
10～90％RH,結露なきこと
周波数:5～8.4Hz,片振幅:3.5mm
周波数:8.4～150Hz,定加速度:9.8m/s2
掃引回数:X,Y,Z各方向10回
周波数:5～8.4Hz,片振幅:1.75mm
周波数:8.4～150Hz,定加速度:4.9m/s2
JIS B 3502, IEC 61131-2 に適合
(147m/s2,XYZ3方向各3回)
腐食性ガスがないこと
0～2000m
制御盤内
Ⅱ以下
2以下
