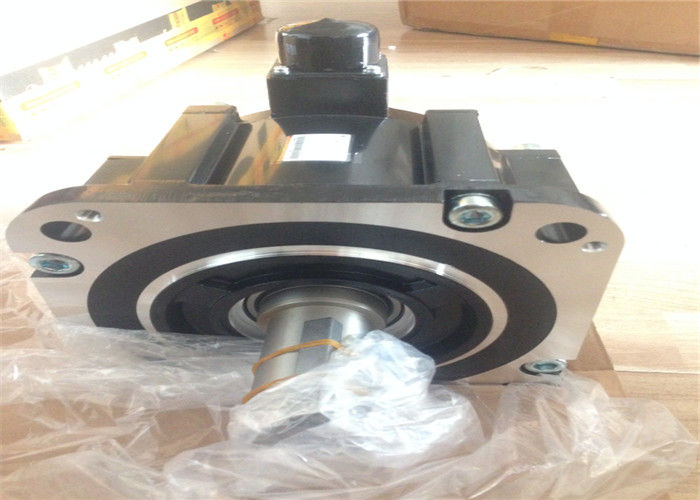

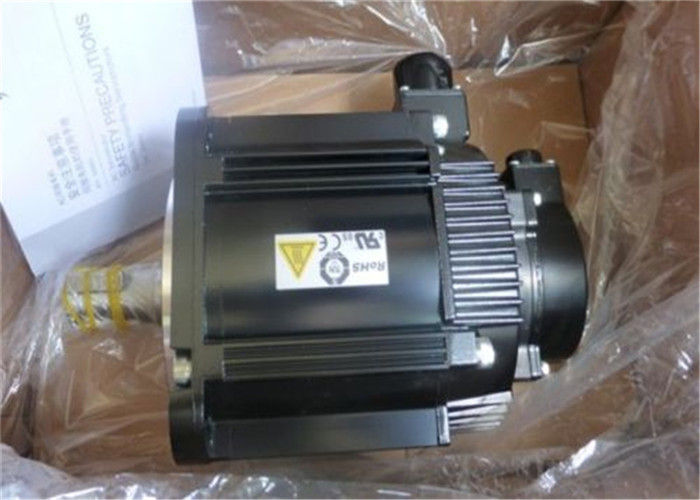

Industrial Yaskawa AC SERVO 2900W 200V MOTOR NEW ORIGINAL SGMGV-30ADB61

Industrial Yaskawa AC SERVO 2900W 200V MOTOR NEW ORIGINAL SGMGV-30ADB61

SPECIFITIONS

Manufacturer: Yaskawa

Product number: SGMGV-30ADB61

Description: SGMGV-30ADB61 is an Motors-AC Servo manufactured by Yaskawa

Servomotor Type: SGMGV

Rated Output: 2900W (0.13HP)

Power Supply: 200V Standard

Encoder Specifications: 12-bit (1024 P/R) Absolute Encoder

Revision Level: Standard or CE Specification

Shaft Specifications: Straight with keyway

Options: 90VDC Brake

OTHER SUPERIOR PRODUCTS

SIMILAR PRODUCTS

Gearmotors may be either integral, meaning the gear reducer and motor share a common shaft, or they may be created from a separate gear reducer and motor, coupled together. Integral gearmotors are common in subfractional horsepower sizes; separate reducers and motors are more often the case in fractional and integral horsepowers. For more on gear reducers
and gearmotors, see Chapter IX

Brakemotors
A brakemotor is a pre-connected package of industrial-duty motor and failsafe, stop-and-hold spring-set brake. In case of power failure, the brake sets, holding the load in position. Brakemotors are commonly used on hoists or other lifting devices. Brake features can also be added to standard motors through conversion kits that attach to the shaft end of either fancooled or open motor.

This electric motor was operating just fine, then one day it mysteriously shut down. The electrician discovered two blown fuses, which he then replaced:

When the on/off switch was closed again, the motor made a loud ”humming” noise, then became quiet after a few seconds. It never turned, though. Upon inspection, the electrician discovered the same two fuses had blown again.
If you were asked to help troubleshoot this electric motor circuit, what would you recommend as the next step?
