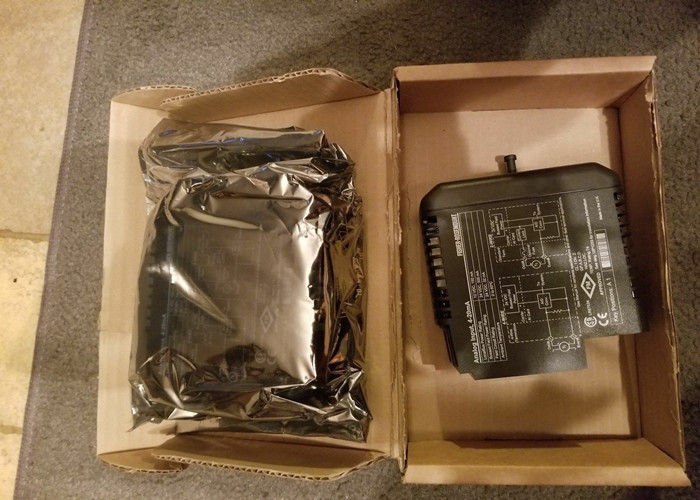

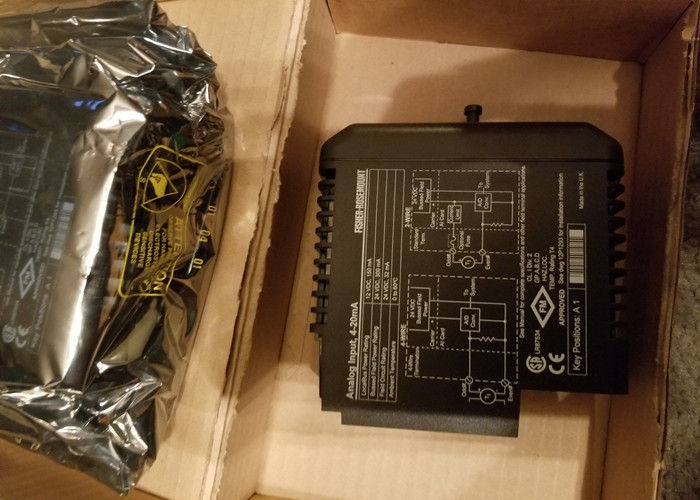

EMERSON DELTAV KJ3002X1-BC1 VE4003S1B2 12P0681X072 Analog Input 8 Ch 4-20mA
Power Specifications
| LocalBus power rating |
12 VDC at 600 mA |
|
Field circuit power per card
|
None |
Environmental Specifications
| Ambient Temperature |
-40 to 70oC
|
| Shock |
10g ½ Sinewave for 11 msec |
| Vibration |
1mm Peak to Peak from 5 to 16Hz;
0.5g from 16 to 150Hz
|
| Airborne
Contaminants
|
ISA-S71.04 –1985 Airborne
Contaminants Class G3
|
| Relative Humidity |
5 to 95% Non-Condensing IP 20 Rating
|
|
Terminal block key position
|
D3 |
Note:
Refer to the product label for serial number and location and date of manufacture. Refer also to
the wiring diagram on the left side of the card.
Warning:
This product has specific instructions for installation, removal and operation in hazardous areas. Refer to document 12P2046 "DeltaV Scalable Process System Zone 2 Installation Instructions".Other installation instructions are available in the "Installing Your DeltaV Automation System" manua.
Removal and Insertion
This unit cannot be removed or inserted with system power energized.
Maintenance and Adjustment
This unit contains no user serviceable parts and should not be disassembled for any reason.
Calibration is not required.
