AJ65SBTB2N-8S Mitsubishi Universal Model Redundant Power Supply Module

Name: AJ65SBTB2N-8S Mitsubishi Universal Model Redundant Power Supply Module
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: AJ65SBTB2N-8S
Price: 10000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Japan
Brand Name:	MITSUBISHI
Certification:	CE
Model Number:	AJ65SBTB2N-8S

Detail Information

Place of Origin:

Japan

Brand Name:

MITSUBISHI

Certification:

Model Number:

AJ65SBTB2N-8S

Brand:

MITSUBISHI

Modenl Number:

AJ65SBTB2N-8S

Country Of Origin:

Japan

Program Capacity:

8 K Steps

Basic Operation Processing Speed (LD Instruction):

0.12 μs

Input:

100 To 240 V AC

Output:

5 V DC/3 A

Type:

Redundant Power Supply Module

Highlight:

High Light

Highlight:

analog interface module

diode redundancy module

Trading Information

Minimum Order Quantity:

Price:

Contact

Packaging Details:

new and original

Delivery Time:

5-7 days

Payment Terms:

T/T, Western Union,paypal

Supply Ability:

100

Product Description

Mitsubishi Universal model Redundant Power Supply Module AJ65SBTB2N-8S

AJ65SBTB2N-8S Description

The AJ65SBTB2N-8S is a digital-analog converter module from Mitsubishi Electric’s MELSEC A series. Designed for the MELSECNET/H remote I/O network, it converts digital values from the PLC into precise analog voltage or current signals. This module enables accurate control of analog devices such as inverters, servo drives, valves, and actuators, making it essential for process control, motion systems, and industrial automation applications requiring reliable remote analog output.

AJ65SBTB2N-8S Features

High Resolution & Accuracy: Provides 16-bit resolution for precise analog output, ensuring stable and accurate control signals.
Dual Output Channels: Features 2 independent analog output channels, allowing simultaneous control of two different devices.
Flexible Signal Ranges: Supports user-selectable output ranges, including 0–10 V, ±10 V, 0–20 mA, and 4–20 mA.
MELSECNET/H Compatible: Integrates seamlessly as a remote I/O station, enabling long-distance, high-speed communication with the main PLC CPU.
Diagnostic Functions: Includes error detection, alarm output, and status indicators for easy troubleshooting and maintenance.
Compact & Modular Design: Saves DIN rail space and allows flexible system expansion within the MELSEC A series configuration.

AJ65SBTB2N-8S Material & Applications

Materials: High-quality flame-retardant plastic (UL94 V-0 rated) housing, corrosion-resistant metal terminals, and industrial-grade electronic components for durability.
Primary Applications:
- Speed and torque control of inverters and servo drives
- Proportional control of hydraulic/pneumatic valves
- Process variable control (temperature, pressure, flow)
- Remote analog output in distributed control systems (DCS)
- Factory automation and production line control

AJ65SBTB2N-8S Key Parameters

Parameter	Specification
Model	AJ65SBTB2N-8S
Series	MELSEC A Series (Remote I/O Module)
Function	Digital to Analog Converter (Output)
Number of Channels	2 channels
Output Resolution	16-bit (1/4000)
Output Signal Ranges	Voltage: 0–10 VDC, ±10 VDC Current: 0–20 mA, 4–20 mA
Accuracy	Voltage: ±0.3% of full scale (±0.5% for ±10V range) Current: ±0.5% of full scale
Conversion Speed	4 ms/channel (for 2 channels simultaneously)
External Connection	20-pin terminal block (removable)
Isolation	Photocoupler isolation between digital/analog circuits and channels
Power Supply	5 VDC (from main module, 120 mA max.)
Operating Temperature	0 to 55 °C
Storage Temperature	-25 to 75 °C
Humidity	5 to 95% RH (non-condensing)
Vibration Resistance	5.88 m/s² (0.6G) at 10–57 Hz
Shock Resistance	147 m/s² (15G) for 3 times in each axis
Weight	Approx. 0.2 kg
Compatible Network	MELSECNET/H remote I/O (via AJ65BTB2N-8S main base unit)
Certifications	CE, UL, cUL (Standards compliant: EMC Directive, Low Voltage Directive)

Our advantage Products:

【Honeywell】Module DCS / PLC

【Emerson】DeltaV Module / Servo Motor

【ABB】Input Output Module

【AB】Module / Touch Screen

【Rosemount】Pressure and Temperature Transmitter

【Yokogawa】Pressure Transmitter

【Yaskawa】Servo Drive / Servo Motor

【Mitsubishi】Servo Drive / Servo Motor

【GE】IC69 Series PLC/ Fanuc Servo Motor and Drive

(Modicon,SMC,SICK,NORGREN,Siemens etc.)

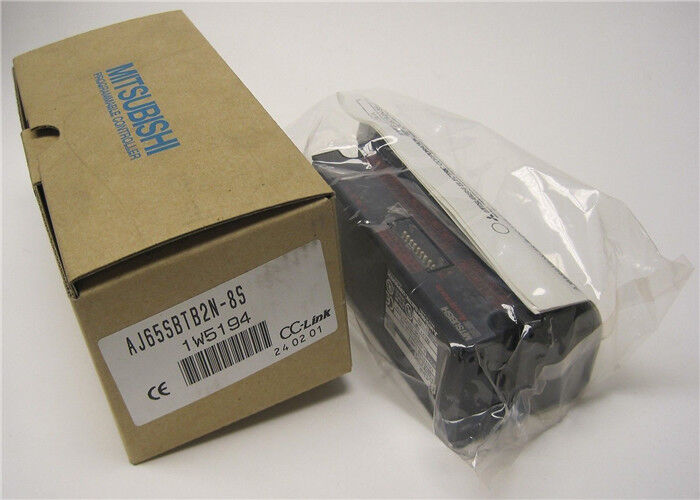

AJ65SBTB2N-8S Mitsubishi Universal Model Redundant Power Supply Module 0
