| Brand: | Panasonic | Model Number: | MCDHT3520 |
|---|---|---|---|
| Country Of Origin: | Japan | Type: | Servo Motor |
| Power - Rated: | 50W | Voltage - Rated: | 100, 200VAC |
| RPM: | 3000 RPM | Weight: | 0.705 Lb (319.78g) |
| Highlight: | ewing machine servo motor,electric servo motor |
||

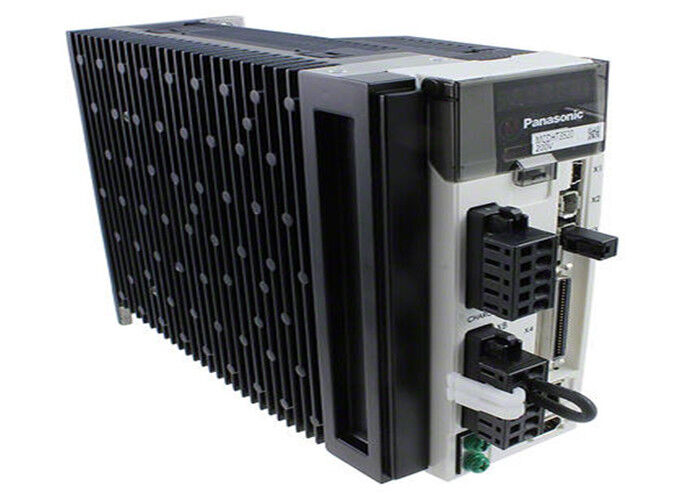

MCDHT3520 750W Panasonic servo motor Servo AC 200 ~ 240VAC Supply 30A 240 V Load
The Panasonic MCDHT3520 is a high-performance, multi-mode servo drive belonging to the MINAS A5 series. It's engineered for precise motion control in industrial automation applications. This 750W drive is designed to operate with a wide range of servo motors, offering flexibility for various mechanical setups, including those requiring high torque and precision positioning. It supports advanced control modes and features a robust communication interface for seamless integration into automated systems
Multi-Control Modes: Supports position control, speed control, torque control, and full-closed loop control, allowing for flexible adaptation to different application requirements
.
High-Resolution Feedback: Compatible with high-resolution absolute (17-bit/131,072 ppr) and incremental (20-bit/1,048,576 ppr) encoders, ensuring exceptional positioning accuracy and stable low-speed operation
.
Advanced Communication Interfaces: Equipped with USB, RS-232, and RS-485 ports for easy parameter configuration, monitoring, and integration into control networks (up to 31 drives via RS-485)
.
Comprehensive I/O Options: Features extensive digital and analog I/O (10 DI, 6 DO, 3 AI, 2 AO) and pulse inputs/outputs for flexible connectivity with various controllers and sensors
.
Built-in Safety Functions: Incorporates safety features meeting international standards, enhancing operational security in automated environments
.
High-Speed Performance: Offers a high-frequency response (2.3 kHz) and supports high-speed pulse input (Up to 4Mpps with line driver), enabling rapid and precise motion control
.
Material: The drive is constructed from industrial-grade electronic components and housed in a metal chassis for durability, effective heat dissipation, and protection against electromagnetic interference.
Usage: Primarily used in industrial automation for precise motion control. Common applications include:
Industrial Robots and CNC Machinery
Semiconductor Manufacturing Equipment (e.g., Die Bonders, Wire Bonders)
Packaging Machinery and Automated Assembly Lines
Precision Positioning Systems and X-Y Tables
Key technical specifications for the Panasonic MCDHT3520 servo drive are summarized in the table below.
|
Parameter Category |
Specification |
|
|---|---|---|
| Rated Output Power |
750 W
|
|
| Max. Output Current |
30 A
|
|
| Rated Output Current |
20 A |
|
| Supply Voltage (Main Circuit) |
Single/3-phase 200 V to 240 VAC (+10% -15%), 50/60 Hz
|
|
| Control Methods |
Position, Speed, Torque, Full-closed control |
|
| Encoder Support | Absolute |
17-bit (131,072 ppr)
|
| Incremental |
20-bit (1,048,576 ppr)
|
|
| Pulse Input Frequency | Line Driver |
Up to 4 Mpps
|
| Photocoupler |
Up to 500 kpps
|
|
| Communication Interfaces |
USB, RS-232, RS-485
|
|
| Digital Inputs (DI) |
10
|
|
| Digital Outputs (DO) |
6
|
|
| Analog Inputs (AI) |
3 (1x 16-bit, 2x 12-bit)
|
|
| Analog Outputs (AO) |
2
|
|
| Regeneration |
Built-in regenerative resistor (External enabled)
|
|
| Dimensions (W x H x D) |
65 mm x 150 mm x 170 mm |
|
| Weight |
1.6 kg |
|
| Operating Temperature |
0°C to 55°C
|
