Product Details:
Payment & Shipping Terms:
|
| Brand: | Panasonic | Model Number: | MSM022Q8V |
|---|---|---|---|
| Country Of Origin: | Japan | Type: | Servo Motor |
| Power Device Max. Current Rating: | 150A | Current Detector Current Rating: | 120A |
| Supply Voltage: | 3-phase 200 V | Frequency Response: | 2.3 KHz |
| Highlight: | ewing machine servo motor,ac servo motor |
||

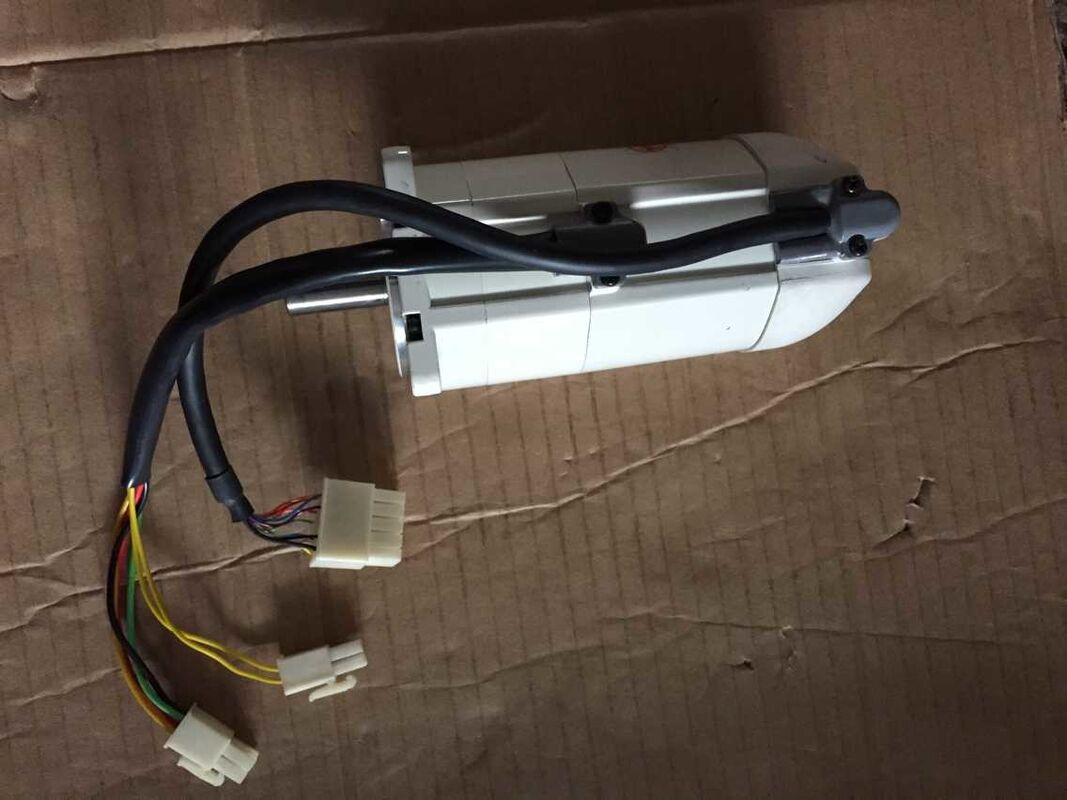

MSM012A2UE 100W AC Servo Motor for Panasonic 100W 200V 3000 1/min
The Panasonic MSM012A2UE is a high-performance, compact 100W AC servo motor belonging to the Minas A6 series. It is engineered for precision motion control in industrial automation applications. This motor is designed to deliver an exceptional torque-to-size ratio, fast response, and accurate positioning, making it ideal for space-constrained environments that demand reliable and efficient operation
High Precision Positioning: Equipped with a high-resolution 22-bit absolute encoder (providing 4,194,304 pulses per revolution), it ensures exceptionally accurate positioning and feedback
.
Compact and Robust Design: Features a space-saving footprint with a precision-machined aluminum housing, making it suitable for applications where space is limited without compromising on performance or durability
.
Superior Protection: Rated at IP67, the motor is fully sealed against dust and water ingress, ensuring reliable operation in harsh industrial environments
.
Smooth and Quiet Operation: Designed for low vibration and low noise characteristics, which is crucial for precision applications like medical devices or quiet working environments
.
High Efficiency: Features an optimized winding design for high efficiency (greater than 90%), reducing power consumption and heat generation
.
Excellent Dynamic Response: Low rotor inertia (0.0006 kg·m²) and low inductance allow for fast acceleration and deceleration, enabling high-speed and high-precision motion control
.
Thermal Protection: Includes a built-in temperature sensor for overload protection, safeguarding the motor from damage during continuous operation
.
Housing: Precision-machined aluminum with a protective coating, offering a strong yet lightweight structure
.
Bearings: Utilizes high-quality ball bearings designed for smooth, low-noise, and long-life operation
.
Sealing: Fully sealed design with IP67 rating, achieved through robust sealing materials to protect internal components from dust and moisture
.
Shaft: Standard keyway and set screw configuration for secure connection to mechanical components
.
This servo motor is versatile and commonly used in:
Semiconductor manufacturing equipment
Electronic component assembly machines
Precision machining centers
Medical device automation
Packaging machinery
Textile and printing equipment
Small robotics and automation systems
|
Parameter |
Specification |
|---|---|
| Motor Type | AC Servo Motor (Permanent Magnet) |
| Rated Output | 100 W |
| Rated Torque | 0.32 N·m |
| Max. Torque | 0.95 N·m |
| Rated Speed | 3000 rpm |
| Max. Speed | 5000 rpm |
| Rotor Inertia | 0.0006 kg·m² |
| Encoder | 22-bit absolute (4,194,304 ppr) |
| Protection Class | IP67 (Dust and Water Resistant) |
| Insulation Class | Class B (130°C) |
| Supply Voltage | 200 V AC |
| Current Rating | 1.6 A |
| Shaft Diameter | 8h6 mm |
| Weight | Approx. 1.2 kg |
| Cooling Method |
Natural convection
|
