| Brand: | Panasonic | Model Number: | MFDHTB3A2 |
|---|---|---|---|
| Country Of Origin: | Japan | Type: | Servo Motor |
| Power Device Max. Current Rating: | 150A | Current Detector Current Rating: | 120A |
| Supply Voltage: | 3-phase 200 V | Frequency Response: | 2.3 KHz |
| Highlight: | ac servo motor,electric servo motor |
||

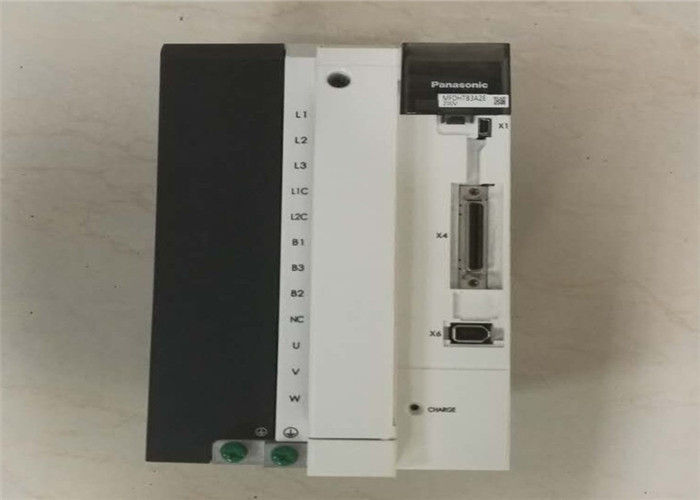

MFDHTB3A2 PANASONIC Servo drive MINAS A5 series
The Panasonic MFDHTB3A2 is a high-performance AC Servo Drive Module belonging to the MINAS A5 Series
. It is engineered to deliver precise control for industrial servo motors, supporting various control modes including position, speed, and torque
. This drive is designed for demanding applications that require high precision, intelligent motion control, and robust performance, often used in conjunction with Panasonic's MINAS A5 Series servo motors
.
High-Performance Control: Offers versatile control modes, including position control, speed control, torque control, and full-closed loop control for superior accuracy
.
Ultra-High Frequency Response: Features a high-frequency response of 2.3 kHz, enabling rapid and precise reaction to command changes
.
Advanced Communication Interfaces: Equipped with multiple connectivity options, including EtherCAT and USB for advanced industrial communication and easy setup
.
Integrated Safety Function: Includes a Safety Torque Off (STO) function compliant with European standards, enhancing operational safety in industrial environments
.
Real-Time Auto-Tuning: Automatically adjusts gain settings in real-time to optimize performance and stability under varying load conditions
.
|
Parameter Category |
Specification Details |
|---|---|
| Manufacturer |
Panasonic Industrial Automation Sales
|
| Series |
MINAS A5 / MINAS A5B
|
| Product Type |
Servo Drive Module
|
| Control Modes |
Position, Speed, Torque, Full-closed control
|
| Input Power (Main Circuit) |
3-phase 200 ~ 240 VAC (+10% / -15%), 50/60 Hz
|
| Max. Output Current |
150 A
|
| Load Voltage |
240 V
|
| Recommended Motor Power |
4 kW / 5 kW
|
| Feedback |
17-bit (131,072 resolution) absolute/incremental encoder support
|
| Communication Interfaces |
EtherCAT, USB, RS-232, RS-485
|
| Frequency Response |
2.3 kHz
|
| Safety Function |
Safety Torque Off (STO)
|
| Operating Temperature |
0°C to 55°C
|
| Mounting Type |
Chassis Mount / Base Mount
|
| Dimensions (W x H x D) |
130 mm x 220 mm x 214 mm
|
| Weight |
4.8 kg
|
While the specific internal materials (e.g., PCB substrate, semiconductor components) are not detailed in the available sources, the drive is built to industrial standards. It typically features a robust metal chassis for heat dissipation and physical protection
. Electrical connections and interfaces are designed for reliability, likely using materials such as gold-plated contacts (common in high-reliability connectors like other Panasonic BTB connectors)
and high-temperature plastics for insulation.
The MFDHTB3A2 servo drive is designed for high-precision industrial automation applications, including:
Industrial Robotics: Such as assembly robots and welding robots, where precise motion control is critical
.
High-Speed Machinery: Including packaging machines, printing presses, and high-speed winding machines
.
Machine Tools: For controlling spindle and axis movement in CNC machining centers, lathes, and grinders.
Precision Automation Equipment: Used in systems where accuracy, intelligent control, and safety are paramount
.
*
Description:
Star Automations is one of the leading Supplier of Panasonic servo systems.
Star Automations, specializes in development, manufacturingand sales of high-quality low-cost motion control products
The latest Panasonic servo series minas a5,
Panasonic minas a5 series servos provide high performanceand function for systems where precision, smart control, safety, and easyconfiguration are needed.
Precise control of position control at incredible prices!
Features:
s Ultra-high response frequency: 2 kHz and width
s Command input and pulse output: up to 4Mpps
s Real-time auto-gain tuning
s 4 notch filters: manual/auto
s 4 damping filters: manual/auto
s PANATERM V5.0 software upgrade with motion simulation
s STO safety function complies with Europeanstandards
s Low interference
Servo systems upgrade
If your servo drives, servo motor and Controller (any make) is obsolete?
We are Upgrades New series Panasonic servo drives &servo motors and Exchange your old servo drive and motor with 18monthswarranty.
If you are lookingfor Panasonic Servo Drive and motor, please call us .we will doour best to helpyou find the Panasonic MINAS Servo Drives that you are lookingfor at the mostcompetitive prices possible.
We service, repair, replace, built, rebuild, regrind, recondition, refurbish, remanufacture, retrofit and overhaul all servo drive and motor.
Most of our standard items are available ex-stock
We can provide Third Party Services all over world.
Please call or email to get more information about our capabilities.
