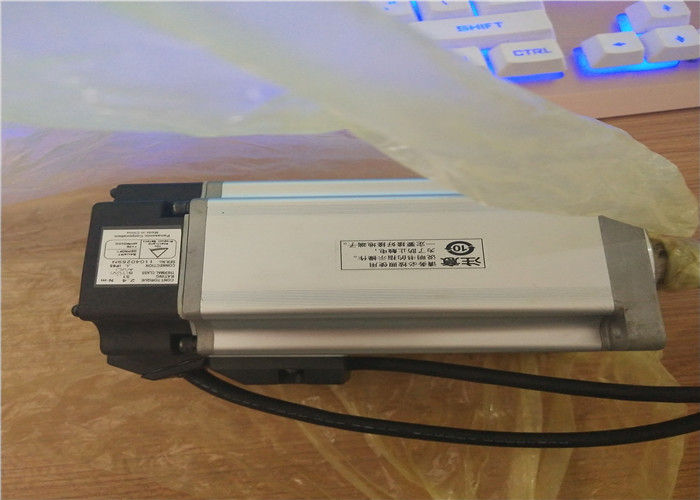

MHMD082G1V PANASONIC INDUSTRIAL DEVICES Industrial Servo Motor 100 200VAC
Product Details:
| Place of Origin: | Japan |
| Brand Name: | Panasonic |
| Certification: | CE |
| Model Number: | MHMD082G1V |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact |
| Packaging Details: | NEW AND ORIGINAL |
| Delivery Time: | 3-5DAYS |
| Payment Terms: | T/T, Western Unionm,PAYPAL |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Brand: | Panasonic | Model Number: | MHMD082G1V |
|---|---|---|---|
| Country Of Origin: | Japan | Type: | Servo Motor |
| Power - Rated: | 50W | Voltage - Rated: | 100, 200VAC |
| RPM: | 3000 RPM | Weight: | 0.705 Lb (319.78g) |
| Highlight: | ewing machine servo motor,ac servo motor |
||
Product Description
PANASONIC INDUSTRIAL DEVICES MHMD082G1V Industrial Servo Motor
MHMD082G1V Description
MHMD082G1V Features
- 1.
High Response Frequency: The motor and drive system can achieve a high-speed response frequency, with some sources indicating capabilities up to 2.0 kHz, enabling extremely fast and precise control loops for demanding applications. - 2.
Advanced Control Capabilities: When paired with its dedicated drive, the system offers features like resonance suppression and control functions to compensate for mechanical rigidity, real-time auto-tuning, and full-closed-loop control with an external high-precision scale for enhanced system accuracy. - 3.
Integrated Electromagnetic Brake: The motor comes with a built-in brake, which is essential for holding a position in the event of a power loss or for safely stopping vertical axes to prevent drops. - 4.
High Inertia Design: As a high-inertia model (MHMD series), this motor is well-suited for driving loads with higher inertia, providing better stability and control in such applications compared to low-inertia models - 5.
High Protection Rating: The motor boasts a protection rating of IP56, making it resistant to dust and powerful water jets, which enhances its durability and suitability for harsh industrial environments.
MHMD082G1V Material & Applications
- •
Applications: Commonly used in applications such as CNC machinery, robotic arms, packaging equipment, material handling systems, and automated assembly lines where precise positioning and high torque are necessary.
MHMD082G1V Key Technical Parameters
| Item | Specifications |
|---|---|
| Part Number | MHMD082G1V |
| Product details | High inertia, Lead wire type, IP65 |
| Family Name | MINAS A5 |
| Series | MHMD Series |
| Type | High inertia |
| Protection class | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 80 mm sq. |
| Flange size (mm) | 80 |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 1.3 |
| Voltage specifications (V) | 200 |
| Rated output (W) | 750 |
| Rated current (A rms) | 4.0 |
| Holding brake | with |
| Mass (kg) | 3.3 |
| Oil seal | with |
| Shaft | Key-way, center tap |
| Rated torque (N ⋅ m) | 2.4 |
| Momentary Max. peak torque (N ⋅ m) | 7.1 |
| Max. current (A 0-p) | 17.0 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Max. rotational speed (r/min) | 4500 |
| Inertia of rotor ( x10-4 kg ⋅ m²) | 1.61 |
| Recommended inertia ratio | 20 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 20-bit Incremental system |
| Rotary encoder: Resolution | 1048576 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 2.45 or more |
| Engaging time (ms) | 70 or less |
| Releasing time (ms) | 20 or less |
| Exciting current (DC) (A) | 0.42 |
| Releasing voltage (DC) (V) | 1 or more |
| Exciting voltage (DC) (V) | 24 ± 1.2 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 686 |
| During assembly: Thrust load A-direction (N) | 294 |
| During assembly: Thrust load B-direction (N) | 392 |
| During operation: Radial load P-direction (N) | 392 |
| During operation: Thrust load A, B-direction (N) | 147 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
