Panasonic MSD3A1P1E Industiral Servo Motor Original In Japan

Name: Panasonic MSD3A1P1E Industiral Servo Motor Original In Japan
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: MSD3A1P1E
Price: 10000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Certification:	CE
Model Number:	MSD3A1P1E

Detail Information

Place of Origin:

Japan

Brand Name:

Panasonic

Certification:

Model Number:

MSD3A1P1E

Brand:

Panasonic

Model Number:

MSD3A1P1E

Country Of Origin:

Japan

Type:

Servo Motor

Rated Power:

100W

Supply Voltage:

220 V

Frequency::

50/60Hz

Output (W):

0.18KW-315KW

Highlight:

High Light

Highlight:

ewing machine servo motor

ac servo motor

Trading Information

Minimum Order Quantity:

Price:

Contact

Packaging Details:

NEW AND ORIGINAL

Delivery Time:

3-5DAYS

Payment Terms:

T/T, Western Unionm,PAYPAL

Supply Ability:

1000

Product Description

Panasonic MSD3A1P1E Industiral servo motor original in Japan

Product Description

The Panasonic MSD3A1P1E is a high-performance, low-inertia AC servo motor belonging to the MINAS A5 series. Manufactured in Japan, it is designed for precision motion control in industrial automation applications. This motor is engineered to deliver high-speed and high-precision positioning, making it suitable for a wide range of automated machinery. It operates on a three-phase 200V AC supply and is certified to meet CE, UL, and TUV standards, ensuring reliability and safety in industrial environments .

Product Features

•
High-Precision Encoder: Equipped with a high-resolution 20-bit incremental encoder (providing 1,048,576 pulses per revolution), enabling extremely precise position control .
•
High-Speed Performance: Capable of achieving a maximum rotational speed of 6,000 rpm, facilitating rapid and efficient operation .
•
Rugged Construction: Features a high protection class of IP67, making it resistant to dust and capable of withstanding temporary immersion in water, which is ideal for harsh industrial environments .
•
Integrated Brake: Comes with an electromagnetic brake, enhancing safety by providing holding torque and preventing unintended movement when power is off .
•
Optimized Design: Part of the MINAS A5 series, it benefits from a design focused on reducing cogging torque and ensuring smooth operation even at low speeds .

Materials and Construction

The motor is built with industrial-grade materials to ensure durability and long-term performance. It features a Frame Size C and a standard straight shaft. The construction is robust, complying with IP67 standards, which indicates the use of high-quality seals and housing materials to protect against environmental contaminants. The internal components are designed for efficient heat dissipation and reliable operation in demanding applications .

Primary Applications

The MSD3A1P1E is versatile and is commonly used in various precision automation scenarios, including:

•
Industrial Robotics: For precise joint control in assembly and handling robots.
•
Packaging Machinery: Ensuring accurate positioning and speed control in filling and sealing machines.
•
Textile Machinery: Used in equipment like industrial sewing machines and looms.
•
Food Processing Equipment: Applicable in machines that require high hygiene standards and precise control.
•
Semiconductor Manufacturing Equipment: Providing the accuracy needed for production and handling of electronic components .

Important Parameters

The table below summarizes the key technical specifications of the Panasonic MSD3A1P1E servo motor.

Parameter	Specification
Model Number	Panasonic MSD3A1P1E
Series	MINAS A5
Rated Output Power	750 W
Rated Torque	2.4 N·m
Maximum Speed	6,000 rpm
Rated Speed	3,000 rpm
Voltage	200 V AC (3-phase)
Encoder Resolution	20-bit incremental
Frame Size	C
Inertia Ratio (x 10⁻⁴ kg·m²)	1.61
Brake	With Brake
Protection Class (IP Rating)	IP67

Description	*MSD3A1P1E* is a Drives-AC Servo produced by Panasonic
AC Servo Drive	MSD series
Output of the applicable motor	30W
Power source	1 ph. 100V
Rotary encoder	2500p/r
Design sequence	Standard
Series name	E
Special Specification	Blank

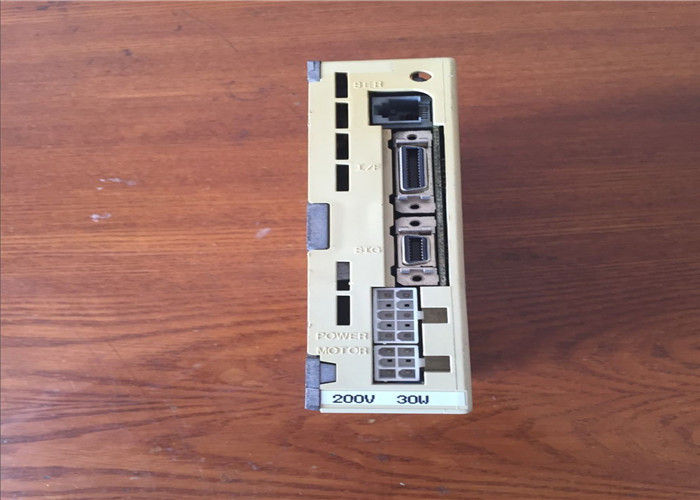

Panasonic MSD3A1P1E Industiral Servo Motor Original In Japan 0

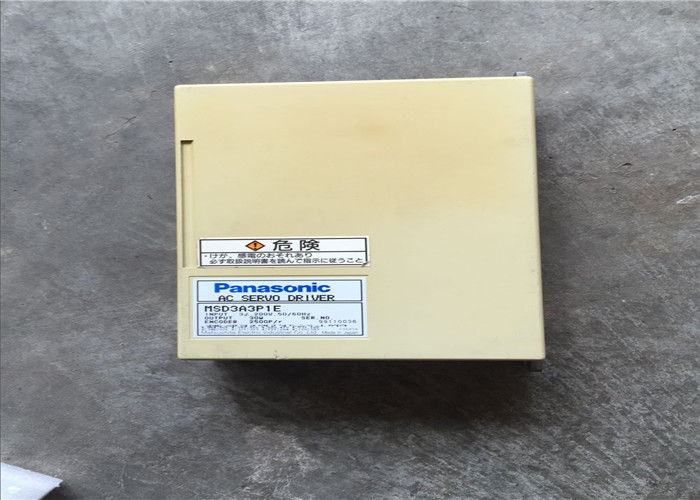

Panasonic MSD3A1P1E Industiral Servo Motor Original In Japan 1

Panasonic MSD3A1P1E Industiral Servo Motor Original In Japan 2
