| Brand: | MITSUBISHI | Modenl Number: | AJ65SBTC1-32DT |
|---|---|---|---|
| Country Of Origin: | Japan | Number Of Input Points: | 16 Points |
| Rated Input Voltage: | 24V DC (within 5% Ripple Rate) (permissible Voltage Range: 19.2 To26.4V DC) | Rated Input Current: | About 7 MA |
| ON Voltage / ON Current: | 14V Or More / 3.5mA Or More | OFF Voltage / OFF Current: | 6 V Or Less / 1.7 MA Or Less |
| Highlight: | plc power supply module,diode redundancy module |
||

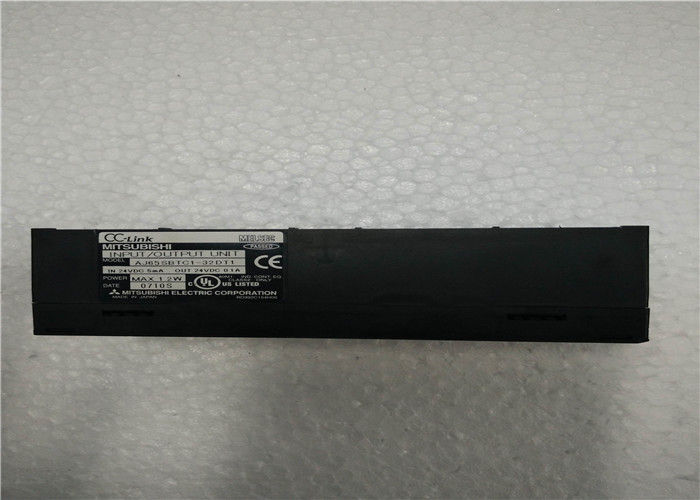

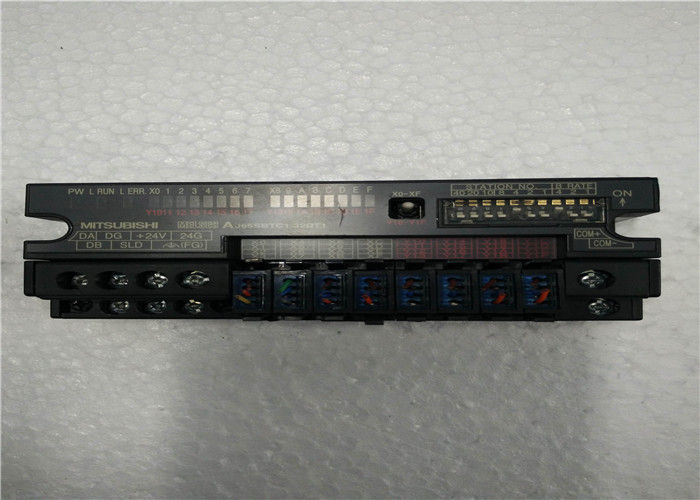

16 points 24V DC 7 mA Redundant Power Supply Module AJ65SBTC1-32DT Mitsubishi
Input specification
| Input format | DC input (plus common type) |
| Number of input points | 16 points |
| Rated input voltage | 24V DC (within 5% ripple rate) (permissible voltage range: 19.2 to26.4V DC) |
| Rated input current | About 7 mA |
| Maximum number of simultaneous input points | 100% |
| ON voltage / ON current | 14V or more / 3.5mA or more |
| OFF voltage / OFF current | 6 V or less / 1.7 mA or less |
| Input resistance | Approximately 3.3 kΩ |
| Input response time OFF → ON | 1.5 ms or less (DC 24 V) |
| Input response time ON → OFF | 1.5 ms or less (DC 24 V) |
| Input isolation method | Photocoupler isolation |
Output specification
| Output format | Transistor output (sink type) |
| Output points | 16 points |
| Rated load voltage | DC24V |
| Operating load voltage range | DC 19.2 to 26.4 V (within 5% ripple rate) |
| Maximum load current | 0.5A / 1 point, 3.6A / 1 common |
| Maximum inrush current | 1.0A 10ms or less |
| OFF current leakage current | A0.25 mA or less |
| Maximum voltage drop when ON | DC 0.3 V or less (TYP.) 0.5 A, DC 0.6 V or less (MAX.) 0.5 |
| Output response time OFF → ON | 0.5 ms or less |
| Output response time ON → OFF | 1.5 ms or less (resistive load) |
| Surge killer | Zener diode |
| Protection function | Over load protection function, over voltage protection function, over temperature protection function |
| Output unit external power supply voltage | DC 19.2 to 26.4 V (within 5% ripple rate) |
| Current | 30 mA or less (24 V DC, common) excluding external load current |
| Output isolation method | Photocoupler insulation |
|
|
Common specification
| Common method | 32 points 1 common (Terminal trapezoidal 1-wire type) |
| Dielectric breakdown voltage | Between DC external terminal block and ground: AC500V 1 minute |
| Insulation resistance | Between DC external terminal block and ground: 10 MΩ or more with DC 500 V insulation resistance tester |
| Protection grade | IP2X |
| Station type | Remote I / O station |
| Number of occupied stations | 1 station |
| Unit power supply voltage | DC 20.4 to 26.4 V (within 5% ripple rate) |
| Current | 60 mA or less (24 V DC, all points on) |
| External wiring connection method | Communication unit, unit power supply unit: 7-point 2-piece terminal block (M3 screw) Input / output power supply unit, input / output unit: 34-point direct mount terminal block (M3 screw) |
| Dimension height (H) | 50 mm |
| Width (W) | 179 mm |
| Depth (D) | 40 mm |
| mass | 0.25 kg |
|
Attribute |
Value |
|---|---|
|
For Use With |
MELSEC Q Series |
|
Number of I/O |
2048 |
|
Manufacturer Series |
MELSEC Q |
|
Input Type |
Analogue, Digital |
|
Voltage Category |
5 V dc |
|
Output Type |
Analogue, Digital |
|
Communication Port Type |
RS232C |
|
Program Capacity |
32 kB |
|
Programming Interface |
Computer, Operating Panel |
|
Length |
89.3mm |
|
Maximum Inputs/Outputs |
8192 |
|
Number of Communication Ports |
1 |
|
Width |
27.4mm |
|
Maximum Operating Temperature |
+55°C |
|
Dimensions |
89.3 x 27.4 x 98 mm |
|
Depth |
98mm |
|
Battery Backup |
Yes |
|
Minimum Operating Temperature |
0°C |
|
Mounting Type |
DIN Rail |
|
Memory |
94 kB |
