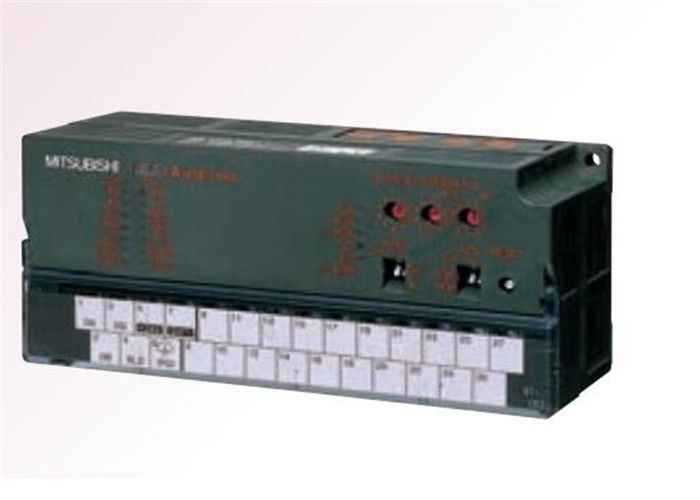

AJ65MBTL1N-16T Redundant Power Supply Module Mitsubishi Universal model
AJ65MBTL1N-16T Description
The AJ65MBTL1N-16T is a compact, embedded remote digital output module from Mitsubishi Electric’s MELSEC-A series, designed for CC-Link industrial fieldbus communication. It provides 16-channel sink-type transistor outputs for DC 12/24V load control, enabling reliable remote signal switching and actuator control in distributed automation systems. Integrated with CC-Link protocol (up to 10 Mbps) and optocoupler isolation, it ensures stable data transmission and electrical separation between control and load circuits. Ideal for cabinet-mounted, space-constrained industrial applications, it supports direct connection to solenoid valves, relays, indicator lights, and small actuators, with screw terminals for secure wiring and easy installation.
AJ65MBTL1N-16T Key Features
- 16-Channel Sink Transistor Outputs: 16 independent DC 12/24V sink-type (NPN) transistor outputs, rated 0.1A per channel, total common current 1.6A.
- High-Speed CC-Link Communication: Supports CC-Link fieldbus (Version 1.10) with 10 Mbps maximum transmission speed, 1 remote I/O station, seamless integration with Mitsubishi MELSEC PLCs.
- Optocoupler Isolation: Built-in photoelectric isolation (AC 500V, 1 minute withstand) between control and load circuits, enhancing noise immunity and system safety.
- Fast Response Time: ON/OFF response time ≤ 1.5 ms (resistive load), ensuring precise real-time control for high-speed automation processes.
- Compact & Space-Saving: Ultra-slim embedded design (53×31.5×22 mm), lightweight (0.03 kg), DIN-rail or direct cabinet mounting for tight control panels.
- Secure Screw Terminals: Screw-clamp terminal connections for reliable field wiring, supporting easy installation and maintenance.
- Comprehensive Protection: Built-in overcurrent, overheat, and surge suppression (zener diode) protection; reverse polarity protection for safe operation.
- Wide Environmental Tolerance: Operating temperature 0–55°C, humidity 10–90% RH (non-condensing), vibration/shock resistance compliant with IEC 61131-2 and JIS B3502 (15G).
- Certified Compliance: CE, UL, and RoHS certified, meeting global industrial safety and environmental standards.
AJ65MBTL1N-16T Materials & Applications
Materials
- Housing: High-strength, flame-retardant thermoplastic (UL94 V-0), impact-resistant, dust-proof, suitable for industrial cabinet environments.
- Terminals: Nickel-plated brass screw terminals, corrosion-resistant, ensuring stable electrical connections with high torque retention.
- Internal Components: High-reliability optocouplers, low-on-resistance power transistors, insulated PCB with conformal coating, and long-life ceramic capacitors for stable performance.
- Isolation Barriers: Reinforced insulation materials between control and load circuits, meeting high-voltage isolation requirements.
Typical Applications
- Industrial Automation: Solenoid valve control, relay driving, indicator lamp signaling in assembly lines, packaging machines, and conveyor systems.
- Manufacturing: Automotive production, electronic assembly, food & beverage processing, and textile machinery for remote actuator control.
- Building Automation: HVAC, pumping systems, and access control for distributed I/O signal switching.
- Material Handling: Warehouse logistics, sorting machines, and small motor control circuits.
- Machine Tools & Robotics: Auxiliary signal output for CNC machines, robotic arms, and precision equipment.
- Water & Wastewater: Pump control, valve actuation, and status indication in water treatment systems.
AJ65MBTL1N-16T Important Parameters
| Parameter |
Specification |
| Part Number |
AJ65MBTL1N-16T |
| Brand |
Mitsubishi Electric (MELSEC-A Series) |
| Product Type |
CC-Link Remote Digital Output Module (Embedded) |
| Output Configuration |
16-channel, sink-type (NPN) transistor output |
| Rated Load Voltage |
DC 12V / 24V (allowable range: DC 10.8–26.4V) |
| Rated Output Current |
0.1 A per channel; 1.6 A total (common terminal) |
| Leakage Current |
≤ 0.1 mA (OFF state) |
| Response Time |
OFF→ON / ON→OFF: ≤ 1.5 ms (resistive load) |
| Isolation Voltage |
AC 500V (1 minute, control-load side) |
| Communication Protocol |
CC-Link (Version 1.10), 10 Mbps max speed |
| Station Number |
1 remote I/O station |
| Power Supply |
DC 24V (allowable: DC 20.4–26.4V), internal consumption ≤ 35 mA |
| Terminal Type |
Screw-clamp terminals |
| Mounting |
Embedded cabinet mounting / DIN-rail compatible |
| Dimensions (W×H×D) |
53 × 31.5 × 22 mm |
| Weight |
Approx. 0.03 kg |
| Operating Temperature |
0°C to +55°C |
| Storage Temperature |
-20°C to +75°C |
| Humidity |
10–90% RH (non-condensing) |
| Vibration Resistance |
10–55 Hz, 0.5 mm amplitude (IEC 61131-2) |
| Shock Resistance |
147 m/s² (15G), 3 times per axis (JIS B3502) |
| Protection Degree |
IP2X (front face) |
| Certifications |
CE, UL, RoHS |
