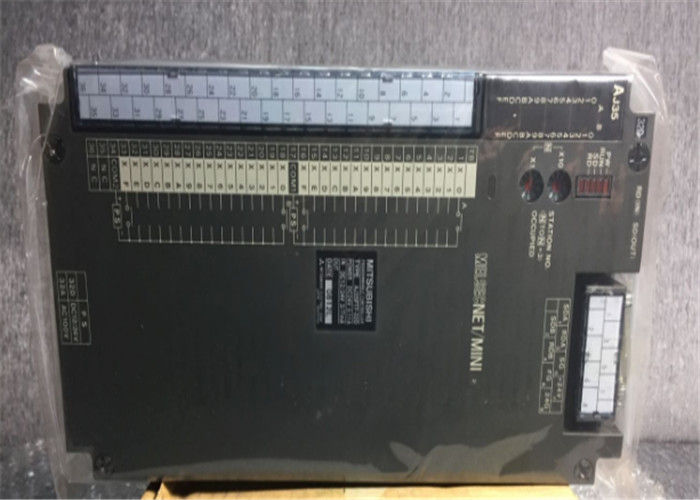

AJ35PTF-56AS Redundant Power Supply Module Mitsubishi Universal model

AJ35PTF-56AS Description

AJ35PTF-56AS Key Features

• Combined I/O Design: Integrates 32 AC input points and 32 AC triac output points, maximizing I/O density and saving installation space.
• Remote Bus Communication: Supports A2C NET/MINI protocol, enabling long-distance signal transmission and reducing on-site wiring complexity.
• AC Signal Compatibility: Input and output circuits are designed for AC voltage signals, suitable for industrial AC sensors and loads.
• Fast Response Speed: Short input and output response times, ensuring real-time signal collection and equipment control.
• Grouped Common Terminals: Inputs and outputs are arranged in common terminal groups (16 inputs/common, 8 outputs/common), simplifying field wiring.
• Industrial-grade Reliability: Stable operation under strong electromagnetic interference, with anti-vibration and shock resistance.
• Plug-and-play Installation: Standard terminal block connections, easy for installation, commissioning and maintenance.
• Wide Voltage Adaptation: Compatible with a broad range of AC supply voltages, adapting to different regional power grids.

AJ35PTF-56AS Materials & Applications

Materials

• Housing: High-strength flame-retardant engineering plastic (UL94 V-0 rated), with good insulation and heat resistance.
• Circuit Board: High-temperature resistant fiberglass epoxy board (FR-4), with stable electrical performance and corrosion resistance.
• Terminals: Copper alloy with nickel-plated surface, low contact resistance, oxidation resistance and reliable wiring.
• Internal Components: Industrial-grade electronic components, suitable for wide temperature ranges and long-term continuous operation.
• Indicator Lights: High-brightness LED lights, clearly displaying the on/off status of each I/O channel.

Typical Applications

• Manufacturing Automation: Assembly lines, packaging machines, conveyor systems and material handling equipment.
• Electronics Industry: Semiconductor fabrication, PCB processing, LED manufacturing and electronic component production.
• Food & Packaging: Food processing machinery, packaging equipment and filling systems.
• Textile & Printing: Textile machines, printing presses and paper processing equipment.
• Plastic & Rubber: Injection molding machines, extruders and rubber processing equipment.
• Metal Processing: CNC machine tools, stamping presses and metal forming machinery.
• Building Automation: HVAC control, pumping stations and environmental monitoring systems.

AJ35PTF-56AS Important Parameters
