120 VAC Positive Logic, 16 points IC200MDL240 GE VersaMax Discrete Input Module

Name: 120 VAC Positive Logic, 16 points IC200MDL240 GE VersaMax Discrete Input Module
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: IC200MDL240
Price: 10000.00 USD
Availability: InStock

Product Details:

Place of Origin:	USA
Brand Name:	GE
Model Number:	IC200MDL240

Detail Information

Place of Origin:

USA

Brand Name:

Model Number:

IC200MDL240

Brand:

Model:

IC200MDL240

Origin:

USA

Warranty:

1 Year

Highlight:

High Light

Highlight:

ewing machine servo motor

electric servo motor

Trading Information

Minimum Order Quantity:

Price:

negotiable

Packaging Details:

New in original box

Delivery Time:

5-8 work days

Payment Terms:

T/T

Supply Ability:

100

Product Description

120 VAC Positive Logic, 16 points IC200MDL240 GE VersaMax Discrete Input Module

Discrete Input Modules

Discrete input modules receive signals from input devices such as sensors, pushbuttons, and switches
that can have two states: on or off, open or closed . Modules require a carrier base (IC200CHSxxx) .

	IC200MDL144	IC200MDL240	IC200MDL241
Product Name	VersaMax Discrete Input Module 240 VAC Isolated, 4 points	VersaMax Discrete Input Module, 120 VAC Positive Logic, 16 points	VersaMax Discrete Input Module, 240 VAC Positive Logic, 16 points
Lifecycle Status	Active	Active	Active
Input Voltage	0-264 VAC	0-132 VAC	0-264 VAC
Number of Points	4	16	16
Channel to Channel Isolation	Yes	No	No
Input and Output Response Time- On/Off (ms)	1 cycle/2 cycles	1 cycle/2 cycles	1 cycle/2 cycles
Points per Common	4 groups of 1	2 groups of 8	2 groups of 8
On State Current	7 mA minimum	5 mA minimum	4 mA minimum
Off State Current	3 mA maximum	2 .5 mA maximum	1 .5 mA maximum
Input Impedance	38 .5 kOhms (reactive) at 60 Hz, typical; 46 .3 kOhms (reactive) at 50 Hz, typical	8 .6 kOhms (reactive) at 60 Hz, typical; 10 .32 kOhms (reactive) at 50 Hz, typical	38 .5 kOhms (reactive) at 60 Hz, typical; 46 .3 kOhms (reactive) at 50 Hz, typical
5V Backplane Current Consumption (mA)	30 maximum	110 maximum	110 maximum
LED Indicators	One LED per point shows individual point ON/OFF status . OK LED indicates backplane power is present	One LED per point shows individual point ON/OFF status . OK LED indicates backplane power is present	One LED per point shows individual point ON/OFF status . OK LED indicates backplane power is present
Dimensions (W x H x D)	110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x 50 mm (1 .956 in), not including the height of the carrier or the mating connectors	110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x 50 mm (1 .956 in), not including the height of the carrier or the mating connectors	110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x 50 mm (1 .956 in), not including the height of the carrier or the mating connectors

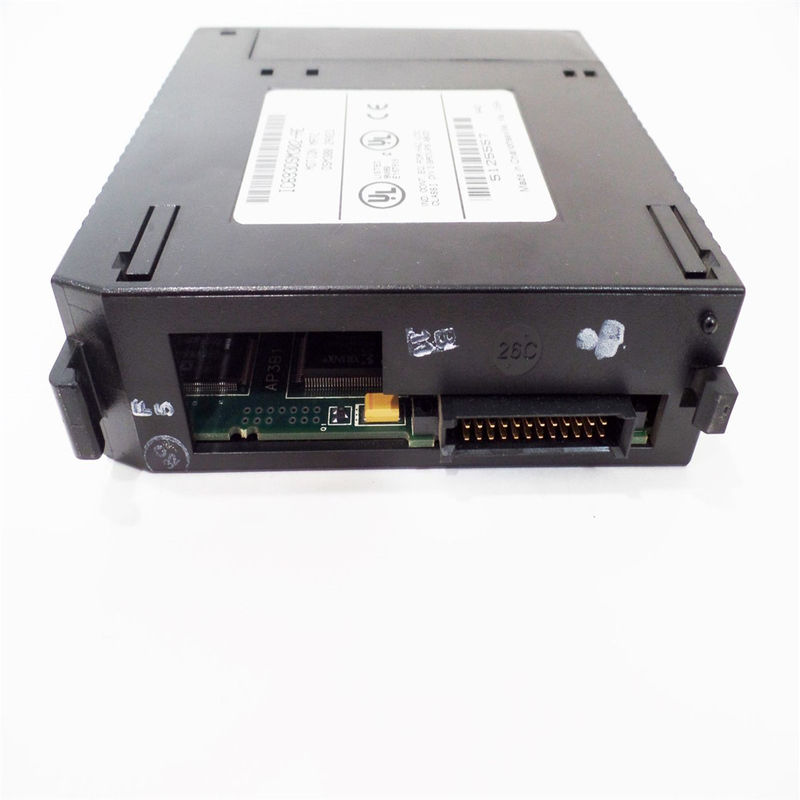

120 VAC Positive Logic, 16 points IC200MDL240 GE VersaMax Discrete Input Module 0

120 VAC Positive Logic, 16 points IC200MDL240 GE VersaMax Discrete Input Module 1
