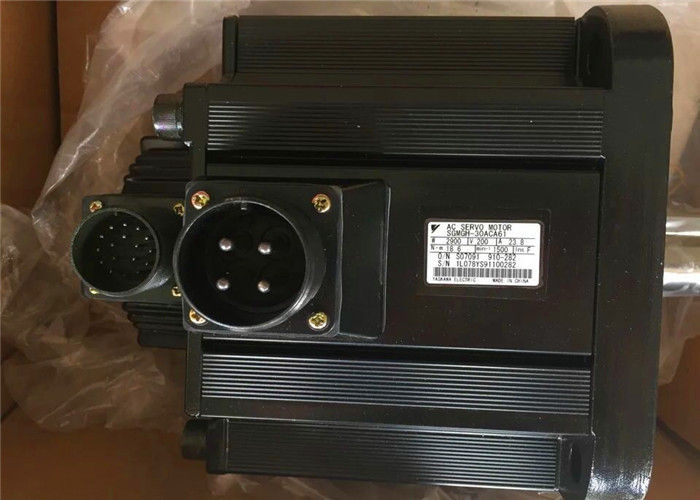

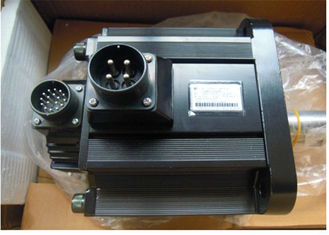

Industrial Servo Motor Yaskawa 18.6N.m 23.8A 200V AC Servo Motor SGMGH-30ACA61
Product Details:
| Place of Origin: | Japan |
| Brand Name: | Yaskawa |
| Certification: | CE |
| Model Number: | SGMGH-30ACA61 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |

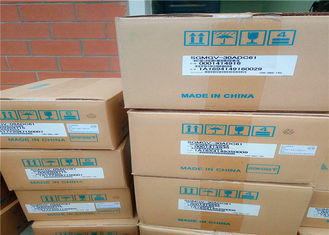

| Packaging Details: | New in original box |
| Delivery Time: | 2-3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 |
|
Detail Information |
|||
| Brand: | Yaskawa | Mdoel: | SGMGH-30ACA61 |
|---|---|---|---|
| Place Of Origin: | Japan | Power: | 2900W |
| Curent: | 23.8A | Voltage: | 200V |
| Ins: | F | MOQ: | 1 PIECE |
| Warranty: | 12 Months | ||
| Highlight: | ewing machine servo motor,ac servo motor |
||
Product Description
Industrial Servo Motor Yaskawa 18.6N.m 200V AC Servo Motor SGMGH-30ACA61
QUICK DETAILS
- Power : 2900W
- Voltage:200V
- Rated Current : 23.8A
DESCRIPTION
- AC Servo Motor
- SGMAV Sigma-5
- YASKAWA ELECTRIC
SEPCIFICATIONS
| Brand Name | Yaskawa |
| Model Number | Industrial Servo Motor Yaskawa 5.39N.m 200V AC Servo Motor SGMGH-30ACA61 |
| Place of Origin | Japan |
| Current | 23.8A |
| Voltage | 200V |
| Speed | 1500/min |
| Power | 2900W |
| Ins | F |
| N.m | 18.6 |
When a motor is Started at full voltage, as would happen in this case, high currents are generated, usually about six times the full load amps of the motor current. The VFD would see these high currents as being well beyond its capabilities and would go into a protective trip or fail altogether. A simple solution for this condition is to interlock the VFD run permissive circuit with the service disconnects via an auxiliary contact at the service disconnect. When the disconnect is closed, a permissive run signal restarts the VFD at low voltage and frequency.
* Are there power factor correction capacitors being switched or existing on the intended motor loads? Switching of power factor capacitors usually generates power disturbances in the distribution system. Many VFDs can and will be affected by this. Isolation transformers or line reactors may be required for these applications.
Power factor correction at VFD-powered motor loads is not necessary as the VFD itself does this by using DC internally and then inverting it into an AC output to the motor. All VFD manufacturers warn against installing capacitors at the VFD output.
Variable Frequency Drive Technologies
Three basic types of variable frequency drives offer certain advantages as well as disadvantages
depending on your motor application. The new flux vector drive is also discussed.
While all variable frequency drives (VFDs) control the speed of an AC induction motor by varying the motor's supplied voltage and frequency of power, they all do not use the same designs in doing so. There are three major VFD designs commonly used today: pulse width modulation (PWM), current source inverter
Installing the Servomotor
Servomotor SGM and SGMP types can be installed either horizontally or vertically. However, if the Servomotor is installed incorrectly or in an inappropriate location, the service life will be shortened or unexpected problems will occur. To prevent this, always observe the installation instructions described below.
Before installation:
Anticorrosive paint is coated on the edge of the motor shaft. Clean off the anticorrosive paint thoroughly using a cloth moistened with thinner.
NOTE
Avoid getting thinner on other parts of the Servomotor when cleaning the shaft.
Storage:
When the Servomotor is to be stored with the power cable disconnected, store it in the following temperature range:
Between −20°C and 60°C
Installation sites:
The Servomotor SGM and SGMP types are designed for indoor use.
Install Servomotor in an environment which meets the following conditions:
- Free from corrosive and explosive gases
- Well-ventilated and free from dust and moisture
- Ambient temperature of 0 to 40°C
- Relative humidity of 20% to 80% (non-condensing)
- Inspection and cleaning can be performed easily
If the Servomotor is used in a location subject to water or oil mist, install a shield cover over the Servomotor.
