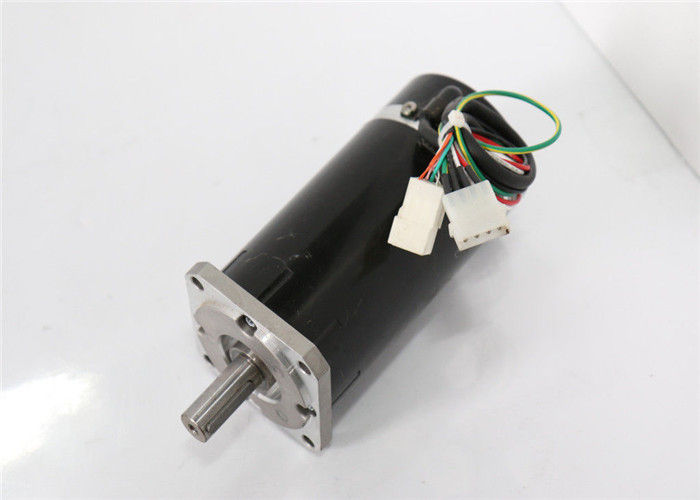

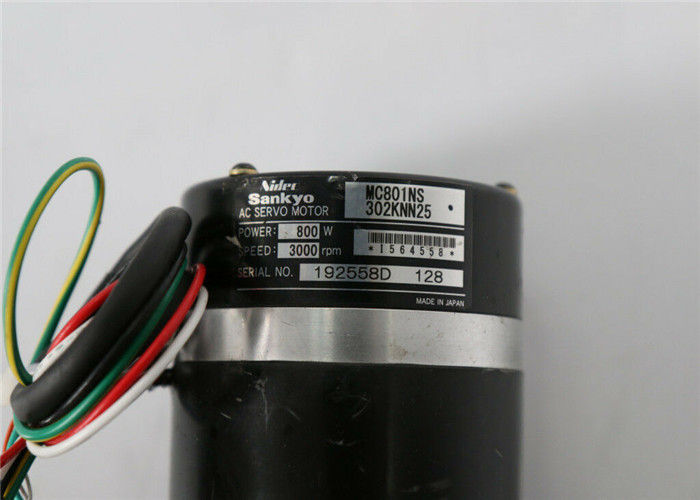

800W Nidec Sankyo Industrial AC Servo Motor MC801NS302KNN24 R16546307H1 for Robots

: Large Image : 800W Nidec Sankyo Industrial AC Servo Motor MC801NS302KNN24 R16546307H1 for Robots

Product Details:

Place of Origin:	Japan
Brand Name:	Nidec Sankyo
Certification:	CE
Model Number:	MC801NS302KNN24

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact us
Packaging Details:	New Original Box
Delivery Time:	In Stock
Payment Terms:	T/T / Paypal
Supply Ability:	50

Contact Now

Detailed Product Description

Category:	Industiral Servo Motor	Model:	MC801NS302KNN24
Rated Power:	800W	Rated Speed:	3000RPM
Condition:	NEW	Brand:	Nidec Sankyo
Highlight:	ewing machine servo motor , ac servo motor

800W Nidec Sankyo Industrial AC Servo Motor MC801NS302KNN24 R16546307H1 for Robots

Hot Sales Nidec Sankyo Servo Motors (Made in Japan)

MC401NS302KNN24 R00513311401 400W

MC801AS302KNN07 R1382500701 800W

MC801NS302KNN03 R1382500901 800W

MC801AS302KNN24 R16546307H1 800W

MT320NS302KNN03 R1854230201 3000W

MF501NS302KNN31 R1683130201 500W

MC801NS302KNN26 R16503327M1 800W

MC401NS302KNN39 RFU8021SM40

MC801NS302KNN24 R16546307H1

HAILH01 R0851332001

HAILI02 R1382501001

Types of Sankyo Industrial AC Servo Motor

Inertia	Low Inertia Middle Inertia High Inertia
Flange Size	40 mm x 40 mm 60 mm x 60 mm 80 mm x 80 mm 130 mm x 130 mm
Rotational Speed	Rated Motor Speed / Max. [r/min] 2,000 / 3,000 [r/min] 3,000 / 6,000 [r/min]
IP Code	IP65 IP67

Installing Precautions

Never remove the encoder or dismantle the motor body.

The motor shaft has anti-rust oil applied at the shipment. Please wipe off the oil before installing the motor. Make sure to perform centering (alignment) carefully and properly.

Operating the motor without sufficient alignments might cause vibrations or a shorter service life of the motor.

Industrial Servo Motor's Use Applications

Embroidery Machine,Textile Machine,Packaging Machine etc
Removal Robot
Conveyer Machine
Processing Machine

Features

Suitable for applications with high speed rotations.Can be used for most applications.
Suitable for applications with low mechanical rigidity such as drive belt machinery.

Others Industrial Sankyo Servo Motors

H24LK52	MP101N2AW25	MC801AS302KNN24	MF501NS302KNN31	MT302NS302KNN03
H27KG57	MC801NS302KNN03	H37KG51	H37LK52	HA1LH01
HA1LI02	MC101NS302SNN01	MC401AS302KNN38	MC401NS302KNN24	MC801AS302KNN07
H27KG51	MC801AS302KNN07	MC801NS302KNN03	MC801NS302KNN07	MF501NS302KNN31
TC0LH01	H37LK52	MC101NS302SNN01	MC401NS302KNN24	MC801AS302KNN07
H27LK52	MC801NS302KNN07	MC800NS302ANN09	MC401NS302KNN39	MC801AS302KNN22
H24LK52	MC401AS302KNN38	MC401AS302KNN31	MC800AS302ASN03	MC801NS302KNN23

Connecting with a Mechanical System

When connecting the motor to a load, use a coupling to absorb misalignments so that the motor shaft load remains.

Within the rated load to the motor shaft.

Improper use may cause a shorter service life of the motor bearing and damage the shaft.

We recommend the use of flexible couplings.

Installation Orientations and Oil Seals

The motor can be installed either vertically or horizontally. Please observe the following precautions.

Horizontal installation: Face the cable pull unit down in order to protect the motor against oil, water and dust.
Vertical installation : For a motor combined with a decelerator being on top of the motor shaft, use an oil sealed motor to prevent the decelerator oil from seeping into the motor.

Low Inertia Industrial Servo Motors

Middle Inertia Industrial Servo Motors

High Inertia Industrial Servo Motors

Inertia & Flange Size & Rotational Speed & IP Code

Motor Models

Dimension

Good Service in WTL:
> We offer high quality, fast delivery, competitive price for Servo Drives and Motors.
> Please send your RFQ to get the latest price.
> Normally, we will ship the items in 1-2 weeks after receive the payment.
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways.
> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices.

Liability:

WTL is not liable for any personal injury or property damage resulting from the use of this equipment. It is
buyer's responsibility as to the safe handling & operation of this equipment and to verify equipment is
compliance to their machinery.
