Product Details:
Payment & Shipping Terms:
|
| Brand: | GE | Model: | IC220PWR003 |
|---|---|---|---|
| Origin: | USA | Application: | Experience |
| Material: | ABS | Color: | Black |
| Highlight: | ac servo motor,electric servo motor |
||

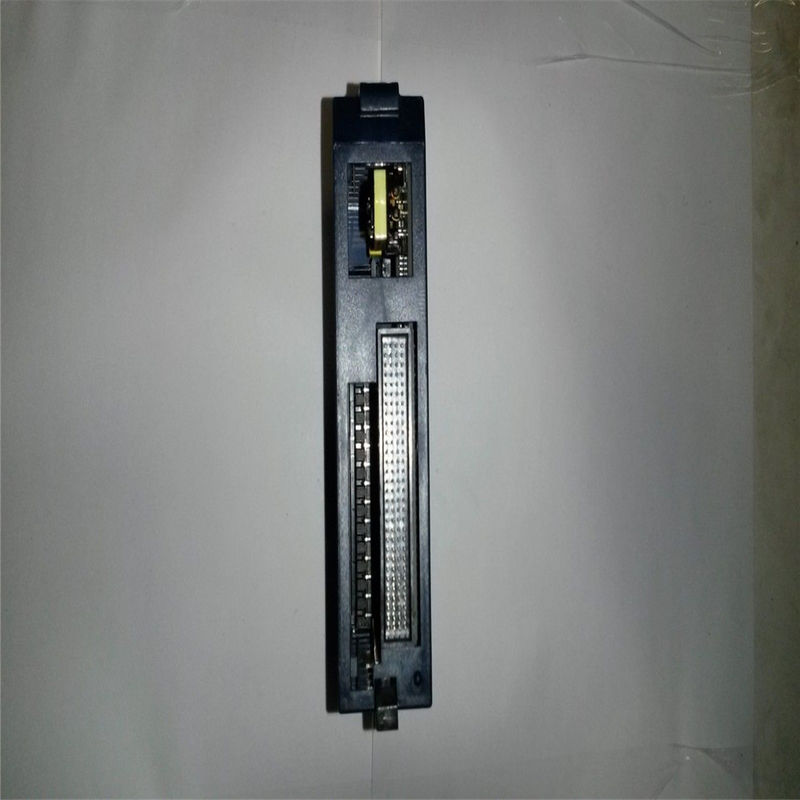

GE Fanuc Maximum IC220PWR003 Power Terminal Fused with Diagnostics 24 VDC
Product Describe
| IC220PWR001 | IC220PWR002 | IC220PWR003 | IC220PWR101 | IC220PWR201 | |
| Product Name | Power Terminal 24 VDC |
Power Terminal Fused 24 VDC |
Power Terminal Fused with Diagnostics 24 VDC |
Power Terminal 120 VAC |
Power Terminal 230 VAC |
| Lifecycle Status | Active | Active | Active | Active | Active |
| Input Voltage | 24 VDC | 24 VDC | 24 VDC | 120 VAC | 120 VAC |
| Input Voltage Range | 19 .2 - 30 VDC | 19 .2 - 30 VDC | 19 .2 - 30 VDC | 108 -135 VAC | 12 -253 VAC |
| Maximum Current | 8 Amps | 8 Amps | 6 .3 Amps | 8 Amps | 8 Amps |
| Overload/Short Circuit in Segment Circuit |
No | Fuse | Fuse | No | No |
| Surge Voltage/Over Voltage | Yes, suppressor diode for voltage limitation |
Yes, suppressor diode for voltage limitation |
Yes, suppressor diode for voltage limitation |
Yes, VAR 275 VAC | Yes, VAR 275 VAC |
| Polarity Reversal | Yes, diode connected in parallel as protection against polarity reversal |
Yes, diode connected in parallel as protection against polarity reversal |
Yes, diode connected in parallel as protection against polarity reversal |
N/A | N/A |
| Current Consumption from Local Bus UL (mA) |
N/A | N/A | 25 mA, maximum | N/A | N/A |
| LED Indicators | 24 VDC Voltage Present |
24 VDC Voltage Present and Blown Fuse |
Bus Diagnostics and Blown Fuse |
120 VAC supply Present |
230 VAC supply Present |
| Required Terminal Strip | (1) IC220TBK087 (Contains 10 strips) |
(1) IC220TBK087 (Contains 10 strips) |
(1) IC220TBK087 (Contains 10 strips) |
(1) IC220TBK204 | (1) IC220TBK204 |
Servo Control
Our advanced line of Digital Servo Motion (DSM) control integrated into the RX3i fosters high performance point-to-point applications. Motion Control modules can be flexibly applied to a variety of digital, analog, and stepper motion applications and support centralized, distributed or hybrid control system architectures. They are easy to program and configure and include extensive built-in diagnostics.
High Speed Counters
The High Speed Counters can be configured for a wide range of counter types (Types A, B, C, D, E, Z, and user-defined types of counters), generate Controller interrupts and Camming/PLS (Programmable Limit Switch).
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Similar Model Products
Analog Input Modules
| IC694ALG220 | Analog Input, Voltage/Current, (4 Channels) |
| IC694ALG221 | Analog Input, Current, (4 Channels) |
| IC694ALG222 | Analog Input, Voltage (16 Single ended /8 Differential Channels) |
| IC694ALG223 | Analog Input, Current, (16 Single Channels) |
| IC695ALG600 | Analog Input, Universal, Voltage/Current/RTD/TC/Strain Gauge, (8 Channels) |
| IC695ALG608 | Analog Input, Voltage/Current, Configurable, (8 Channels) |
| IC695ALG616 | Analog Input, Voltage/Current, Configurable, (16 Channels) |
| IC695ALG628 | Analog Input with HART Communications, Voltage/Current, Configurable, (8 Channels) |
| IC695ALG626 | Analog Input with HART Communications, Voltage/Current, Configurable, (16 Channels) |
| IC695ALG106 | Isolated Analog input module, configurable for voltage and current (6 Channels). |
| IC695ALG112 | Isolated Analog input module, configurable for voltage and current (12 Channels). |
| IC695ALG508 | Isolated RTD and resistance input channels. Supports 2, 3, 4 wire RTD or Resistance, (8 Channels) . |
| IC695ALG306 | Isolated Thermocouple Input, Supports type J, K, T, E, R, S, B, N, or C and Voltage: ±150 mV or ±50 mV. (6 Channels) |
| IC695ALG312 | Isolated Thermocouple Input, Supports type J, K, T, E, R, S, B, N, or C and Voltage: ±150mV or ±50mV. (12 Channels) |
