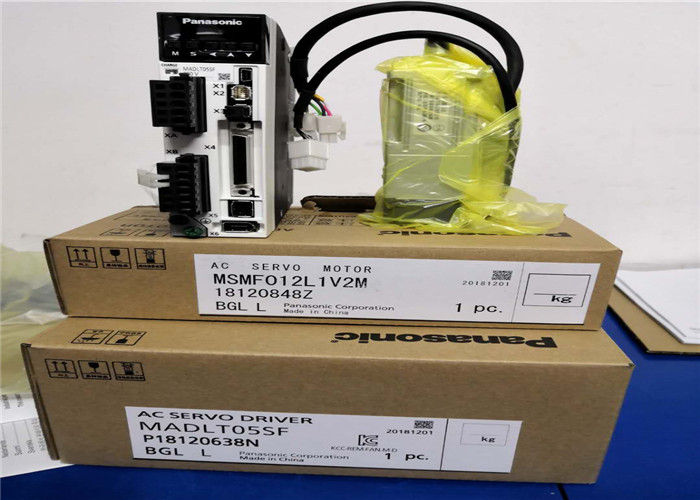

MSMF012L1V2M 3000rpm 400W Industrial Panasonic Servo Motor Panasonic 50/60Hz 400W

Name: MSMF012L1V2M 3000rpm 400W Industrial Panasonic Servo Motor Panasonic 50/60Hz 400W
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: MSMF012L1V2M
Price: 10000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Certification:	CE
Model Number:	MSMF012L1V2M

Detail Information

Place of Origin:

Japan

Brand Name:

Panasonic

Certification:

Model Number:

MSMF012L1V2M

Brand:

Panasonic

Modenl Number:

MSMF012L1V2M

Country Of Origin:

Japan

AC Voltage:

200V

Output Power::

400W

Frequency:

50/60Hz

Type:

Industrial Servo Motor

Rated Voltage:

200V

Rated Current:

4.0A

Rated Speed:

3000rpm

Highlight:

High Light

Highlight:

ewing machine servo motor

ac servo motor

Trading Information

Minimum Order Quantity:

Price:

Contact

Packaging Details:

new and original

Delivery Time:

5-7 days

Payment Terms:

T/T, Western Union,paypal

Supply Ability:

100

Product Description

3000rpm 750W MSMF012L1V2M Industrial Panasonic Servo Motor Panasonic

MSMF012L1V2M Description

The Panasonic MSMF012L1V2M is a high-performance, low-inertia AC servo motor designed for precise motion control applications. As part of Panasonic's MINAS SFL series, this motor is engineered to deliver exceptional responsiveness, high torque, and smooth operation even at low speeds. It is ideally paired with compatible Panasonic servo drivers to create a system perfect for automation equipment requiring high-speed positioning, such as in packaging, assembly, and semiconductor manufacturing machinery. Its compact and lightweight design allows for space-saving installations without compromising on power.

MSMF012L1V2M Key Features

•
High Performance & Low Inertia: Features a low rotor inertia, enabling rapid acceleration and deceleration for superior quick-response positioning and shorter cycle times.
•
High Resolution Encoder: Equipped with a high-resolution 24-bit encoder (4,194,304 p/rev), providing extremely precise position feedback for smooth rotation and outstanding stability.
•
High Torque Density: Offers high torque relative to its frame size, ensuring powerful and reliable performance in a compact package.
•
Smooth Rotation: Advanced design and manufacturing techniques minimize torque ripple, resulting in exceptionally smooth rotation even at low speeds, which is critical for precision applications.
•
Electromagnetic Brake: Includes an integral electromagnetic brake for holding a load in position when power is off, enhancing safety and functionality in vertical applications.
•
IP65 Protection Rating: The motor is built with an IP65 rating, making it resistant to dust and water jets, suitable for use in harsh industrial environments.

MSMF012L1V2M Material & Applications

•
Material: The motor housing is typically made from high-grade aluminum alloy for excellent heat dissipation and lightweight properties. The shaft is made of hardened steel for durability. Internal components include high-grade magnets and copper windings.
•
Primary Applications:
- •
  Industrial Robots and Robotic Arms
- •
  Automated Assembly Machines
- •
  Packaging Machinery
- •
  Semiconductor Manufacturing Equipment
- •
  CNC Machine Tools (for auxiliary axes)
- •
  Printing and Material Handling Systems

MSMF012L1V2M Key Parameters

The following table summarizes the most important technical specifications for the MSMF012L1V2M servo motor.

Parameter	Specification	Notes
Model	MSMF012L1V2M	-
Motor Series	MINAS SFL	-
Frame Size	60 mm	-
Output Power	1.2 kW	-
Rated Torque	3.8 N·m	-
Max. Torque	11.4 N·m	-
Rated Speed	3000 rpm	-
Max. Speed	6000 rpm	-
Rated Current	6.6 A	-
Max. Current	19.8 A	-
Voltage Constant	35 Vrms/krpm	-
Torque Constant	1.21 N·m/Arms	-
Rotor Inertia	1.44 x 10<sup>-4</sup> kg·m²	-
Encoder Resolution	24-bit (4,194,304 p/rev)	Absolute / Incremental
Protection Class	IP65	Dust-tight & protected against water jets
Brake	Included	Electromagnetic brake
Weight	Approx. 2.0 kg	-
