Product Details:
Payment & Shipping Terms:
|
| Rated Output:: | 400W | SRated Speed:: | 3000 RPM |
|---|---|---|---|
| Power Supply Specification: | 200-230VAC 3-phase | Brand: | Mitsubishi Industrial Servo Motor |
| Model Item: | HG-KN73J-S100 | Plan Of Original: | Japan |
| Frequency Response: | 2.3 KHz | Rated Output Capacity: | 2KW |
| Highlight: | ewing machine servo motor,ac servo motor |
||

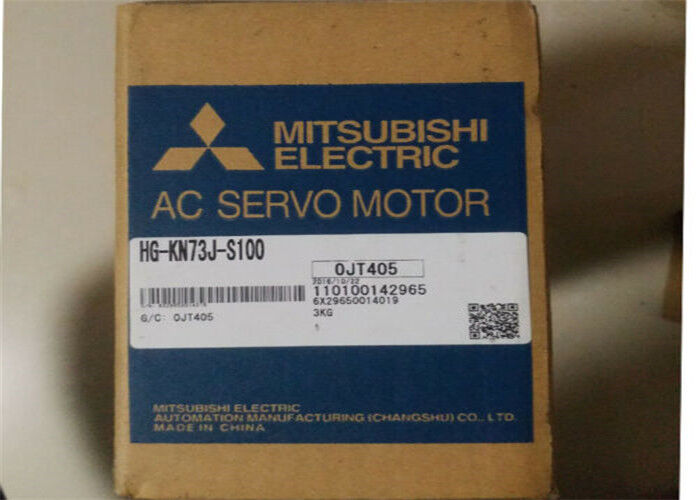

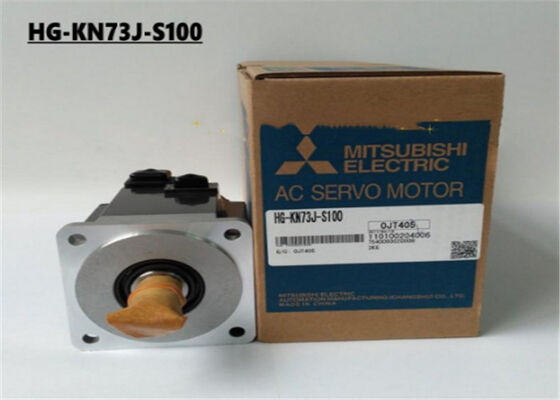

HG-KN73J-S100 Industrial Mitsubishi Servo Motor 0.75 kW 3000 r/min.
The Mitsubishi HG-KN73J-S100 is a low-inertia, small-capacity servo motor from Mitsubishi Electric's HG series. It's engineered for high-performance industrial automation applications requiring rapid response, precise positioning, and reliable operation. This motor is designed to excel in high-frequency operation and high-acceleration/deceleration scenarios, making it a versatile component in modern manufacturing and processing equipment
High Performance & Precision: Equipped with a high-resolution 17-bit incremental encoder (131,072 pulses/revolution), it ensures exceptional positioning accuracy and stable low-speed operation
.
Rapid Response: The low-inertia design allows for quick acceleration and deceleration, enhancing the dynamic performance of the system and shortening positioning time
.
Robust Construction: Features a fully enclosed, self-cooling structure with a protection rating of IP65, making it resistant to dust and oil jets, suitable for demanding industrial environments
.
Advanced Control Support: Supports various control modes including position control, speed control, torque control, and push control. It offers advanced functions like linear/circular interpolation, fixed-size feed control, and target position change
.
Easy Tuning and Vibration Suppression: Features advanced one-touch tuning for simplified gain adjustment and advanced vibration control II to suppress low-frequency vibrations, reducing settling time and improving production rhythm
.
Oil Seal: Comes with an oil seal on the shaft, enhancing its durability in environments where it might be exposed to oil mist or splashes
.
Material: While detailed material specifics (e.g., housing alloy, magnet type) are not explicitly listed in the search results, servo motors typically feature robust housings (often aluminum alloy), high-grade copper windings, and rare-earth magnets for optimal performance and durability.
Primary Applications: This motor is widely used in various industrial automation machinery where precision and reliability are critical
.
Machine Tools
Injection Molding Machines
Semiconductor Manufacturing Equipment
Large Material Handling/Conveyance Systems
Presses
The key technical parameters for the HG-KN73J-S100 are summarized in the table below.
|
Parameter Category |
Specification |
Unit |
|---|---|---|
| Rated Output | 0.75 | kW |
| Rated Torque | 2.4 | N·m |
| Maximum Torque | 7.2 | N·m |
| Rated Speed | 3000 | r/min |
| Maximum Speed | 5000 | r/min |
| Instantaneous Permissible Speed | 5750 | r/min |
| Rated Current | 4.8 | A |
| Maximum Current | 14 | A |
| Power Rate (at Continuous Rated Torque) | 44.5 | kW/s |
| Moment of Inertia (J) | 1.28 x 10⁻⁴ | kg·m² |
| Recommended Load Inertia Ratio | 15 times or less | - |
| Encoder Type & Resolution | Incremental, 17-bit (131,072 pulses/rev) | - |
| Protection Class | IP65 (Shaft through-part excluded) | - |
| Oil Seal | Yes | - |
| Thermal Class | 130 (B) | - |
| Weight | Approx. 3 | kg |
| Axis Allowable Load Radial Thrust | 392 147 | N N |
| Environmental Temperature Operating Storage | 0 to +40 -15 to +70 | °C °C |
Specifications
| Brand Name | Mitsubishi |
| Model Number | HG-KN73J-S100 |
| Rated output (kW) | 0.75 |
| Rated torque (N.m) | 2.4 |
| Maximum torque (N.m) | 7.2 |
| Rated speed (r/min) | 3000 |
| Maximum speed (r/min) | 5000 |
| Rated current (A) | 4.8 |
| Maximum current [A] | 14 |
| Speed/position detector | 17-bit encoder common to absolute position/incremental |
| Mass (kg) | 4.0 |
