Product Details:
Payment & Shipping Terms:
|
| Phase: | 3-phase | Brand: | Mitsubishi Industrial Servo Motor |
|---|---|---|---|
| Model Item: | HG-KN23BJ-S100 | Plan Of Original: | Japan |
| Power: | 0.2kw | Frequency: | 3000r/min |
| AC Voltage: | 9.4A | ||
| Highlight: | ac servo motor,electric servo motor |
||

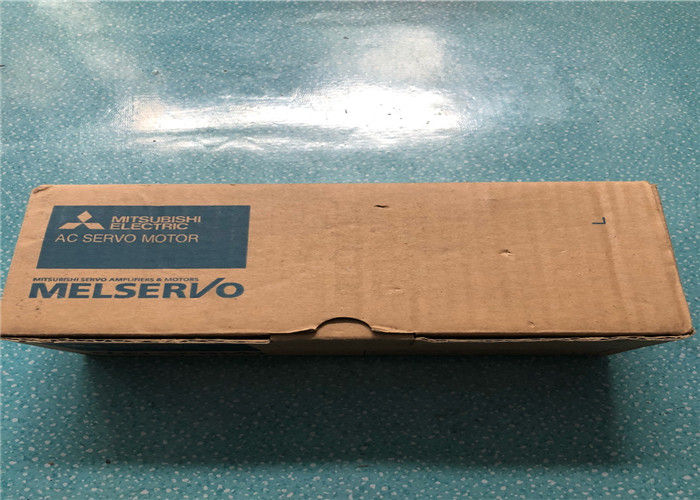

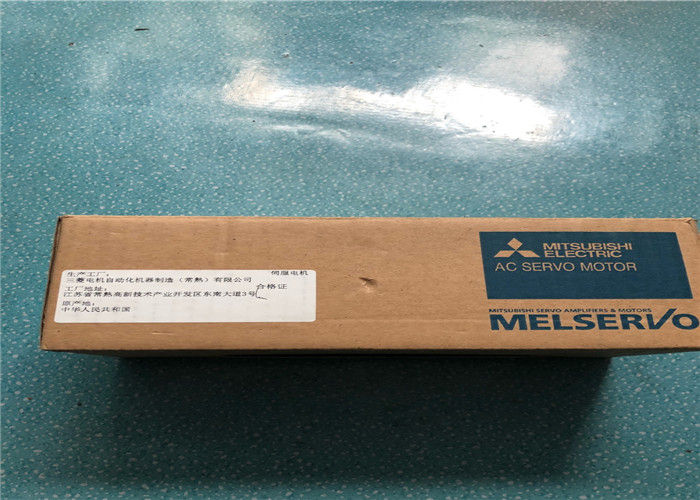

0.2kw 3000r/min HG-KN23BJ-S100 Industrial Servo Motor Mitsubishi
Specifications of Mitsubishi Servo HG-KN23BJ-S100:
Name Electric machinery
Model HG-KN23BJ-S100
Servo motor series low inertia,small capacity.
Rated output 0.2kw
Rated speed 3000r/min
Electromagnetic brake there
Oil seal have
Corresponding servo amplifier MR-JE-10B/MR-JE-10A.
Features of Mitsubishi Servo HG-KN23BJ-S100:
Mitsubishi Servo HG-KN23BJ-S100
Encoder for HC-SFS; HC-LFS; HC-RFS; 2000r/min HA-LFS; HC-UFS servo motor.
-H products have a long flex life.
Coding is not resistant to oil. "1 axis servo amplifier.
MITSUBISHI general AC servo amplifier MELSERVO-J4 serie
|
Servo motor Item |
HF-KN series (low inertia/small capacity) | ||||
| 13(B)J-S100 | 23(B)J-S100 | 43(B)J-S100 | 73(B)J-S100 | ||
| Power facility capacity [kVA] | 0.3 | 0.5 | 0.9 | 1.3 | |
| Continuous running duty | Rated output [W] | 100 | 200 | 400 | 750 |
| Rated torque [Nm] | 0.32 | 0.64 | 1.3 | 2.4 | |
| Maximum torque [Nm] | 0.95 | 1.9 | 3.8 | 7.2 | |
| Rated rotation speed [rpm] | 3000 | 3000 | 3000 | 3000 | |
| Maximum rotation speed [rpm] | 4500 | 4500 | 4500 | 4500 | |
| Instantaneous permissible speed [rpm] | 5175 | 5175 | 5175 | 5175 | |
| Rated current [A] | 0.8 | 1.3 | 2.7 | 4.8 | |
| Maximum current [A] | 2.4 | 3.9 | 8.1 | 14 | |
| Weight [kg] | 0.6 | 1.2 | 1.6 | 3.1 | |
| Servo Motor | |||
| Item | Model | Rated output | Rated speed |
| HG-KR series | HG-KR053 | 50 W | 3000 r/min |
| HG-KR13 | 100 W | 3000 r/min | |
| HG-KR23 | 200 W | 3000 r/min | |
| HG-KR43 | 400 W | 3000 r/min | |
| HG-KR73 | 750 W | 3000 r/min | |
| HG-KR series with brake | HG-KR053B | 50 W | 3000 r/min |
| HG-KR13B | 100 W | 3000 r/min | |
| HG-KR23B | 200 W | 3000 r/min | |
| HG-KR43B | 400 W | 3000 r/min | |
| HG-KR73B | 750 W | 3000 r/min | |
| HG-MR series | HG-MR053 | 50 W | 3000 r/min |
| HG-MR13 | 100 W | 3000 r/min | |
| HG-MR23 | 200 W | 3000 r/min | |
| HG-MR43 | 400 W | 3000 r/min | |
| HG-MR73 | 750 W | 3000 r/min | |
| HG-MR series with brake | HG-MR053B | 50 W | 3000 r/min |
| HG-MR13B | 100 W | 3000 r/min | |
| HG-MR23B | 200 W | 3000 r/min | |
| HG-MR43B | 400 W | 3000 r/min | |
| HG-MR73B | 750 W | 3000 r/min | |
| HG-SR series 2000 r/min | HG-SR52 | 0.5 KW | 2000 r/min |
| HG-SR102 | 1.0 KW | 2000 r/min | |
| HG-SR152 | 1.5 KW | 2000 r/min | |
| HG-SR202 | 2.0 KW | 2000 r/min | |
| HG-SR352 | 3.5 KW | 2000 r/min | |
| HG-SR502 | 5.0 KW | 2000 r/min | |
| HG-SR702 | 7.0 KW | 2000 r/min | |
| HG-SR series 2000 r/min | HG-SR52B | 0.5 KW | 2000 r/min with brake |
| HG-SR102B | 1.0 KW | 2000 r/min with brake | |
| HG-SR152B | 1.5 KW | 2000 r/min with brake | |
| HG-SR202B | 2.0 KW | 2000 r/min with brake | |
| HG-SR352B | 3.5 KW | 2000 r/min with brake | |
| HG-SR502B | 5.0 KW | 2000 r/min with brake | |
| HG-SR702B | 7.0 KW | 2000 r/min with brake | |
| HG-SR series 1000 r/min | HG-SR51 | 0.5 KW | 1000 r/min |
| HG-SR81 | 0.85 KW | 1000 r/min | |
| HG-SR121 | 1.2KW | 1000 r/min | |
| HG-SR201 | 2.0 KW | 1000 r/min | |
| HG-SR301 | 3.0 KW | 1000 r/min | |
| HG-SR421 | 4.2 KW | 1000 r/min | |
| HG-SR series 1000 r/min | HG-SR51B | 0.5 KW | 1000 r/min with brake |
| HG-SR81B | 0.85 KW | 1000 r/min with brake | |
| HG-SR121B | 1.2KW | 1000 r/min with brake | |
| HG-SR201B | 2.0 KW | 1000 r/min with brake | |
| HG-SR301B | 3.0 KW | 1000 r/min with brake | |
| HG-SR421B | 4.2 KW | 1000 r/min with brake | |
Similer item we can supply:
| HC-UFS13 | HC-UFS23 | HC-UFS73 | HC-UFS43 |
| HC-UFS72 | HC-UFS152 | HC-UFS202 | HC-UFS352 |
| HC-UFS502 | HC-SFS81 | HF-KP13 | HF-SP102B |
| HC-SFS121 | HC-RFS153 | HF-MP13B | HF-SP152B |
| HC-SFS201 | HC-RFS203 | HF-MP23B | HF-SP202B |
| HC-SFS301 | HC-RFS353 | HF-MP43B | HF-SP352B |
| HC-SFS52 | HC-RFS503 | HF-MP73B | HF-SP502B |
| HC-SFS102 | HA-LFS11K2 | HF-KP13B | HF-SP51 |
| HC-SFS152 | HA-LFS15K2 | HF-KP23B | HF-SP702B |
| HC-SFS202 | HA-LFS22K2 | HF-KP43B | HF-SP81 |
| HC-SFS352 | HA-LFS11K2B | HF-KP73B | HF-SP121 |
| HC-SFS502 | HA-LFS15K2B | HF-SP52 | HF-SP201 |
| HC-SFS702 | HA-LFS22K2B | HF-SP102 | HF-SP51B |
| HC-SFS53 | HF-MP053 | HF-SP152 | HF-SP81B |
| HC-SFS103 | HF-MP13 | HF-SP202 | HF-SP121B |
| HC-SFS153 | HF-MP23 | HF-SP352 | HF-SP201B |
| HC-SFS203 | HF-MP43 | HF-SP502 | HC-SFS202K |
| HC-SFS353 | HF-MP73 | HF-SP702 | HC-SFS201B |
| HC-RFS103 | HF-KP053 | HF-SP52B | HC-SFS202B |
