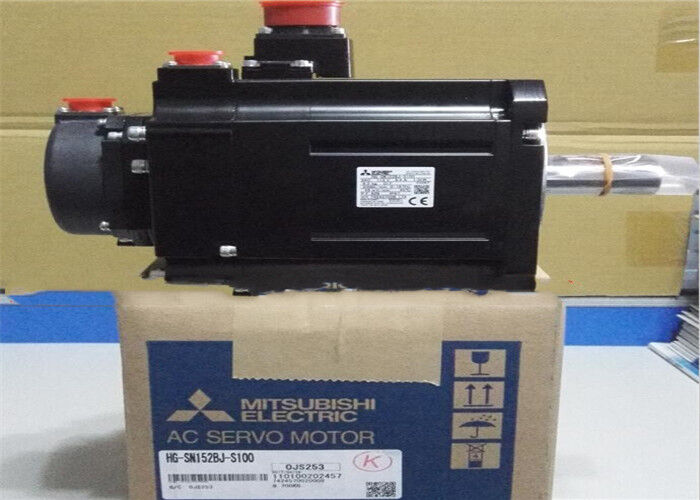

HG-SN152BJ-S100 Mitsubishi Industrial Servo Motor 2000r/Min 2.0kw

Mitsubishi Industrial Servo Motor HG-SN152BJ-S100 2000r/min 2.0kw

HG-SN152BJ-S100 Description

HG-SN152BJ-S100 Features

• •
  High Power and High Torque:​ Provides 1500W of output power with high torque at low speeds, enabling the driving of heavy loads and rapid acceleration/deceleration.
• •
  High Resolution Encoder:​ Features a 24-bit high-resolution encoder (over 16 million pulses/rev), ensuring extremely precise position control and smooth rotation at very low speeds.
• •
  High Efficiency:​ Incorporates high-efficiency magnet materials to reduce heat generation and energy consumption, contributing to a more sustainable and cost-effective operation.
• •
  Low Inertia:​ The low rotor inertia allows for exceptionally quick start/stop responses, which is critical for applications requiring high cycle times.
• •
  High Brake (Option):​ The suffix "-S100" indicates the inclusion of an electromagnetic holding brake. This brake engages when power is cut off to prevent vertical axis drops or hold a load in position, enhancing safety and functionality.
• •
  IP67 Protection Level:​ The motor shaft seal and connector housing provide a high degree of protection against dust and water jets (IP67), making it suitable for use in harsh environments.

HG-SN152BJ-S100 Material & Applications

• •
  Materials:​ The housing is made of high-strength aluminum alloy. The rotor uses high-performance rare-earth magnets (e.g., Neodymium). The shaft is made of hardened steel, and seals are made of synthetic rubber for high ingress protection.
• •
  Primary Applications:
  • •
    Industrial Robots:​ For precise joint control in articulated and SCARA robots.
  • •
    Packaging Machinery:​ Driving conveyor belts, fillers, and capping machines.
  • •
    Machine Tools:​ Controlling axes in CNC milling machines, lathes, and grinders.
  • •
    Semiconductor & Electronic Assembly:​ Precision placement and handling of delicate components.
  • •
    Material Handling:​ Controlling automated guided vehicles (AGVs) and conveyor systems.

HG-SN152BJ-S100 Important Parameters
