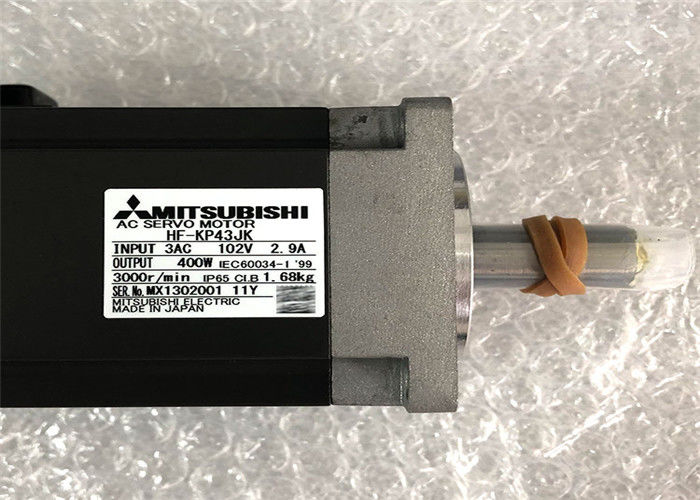

HF-KP43JK 102V SPEED 3000RPM Mitsubishi Melservo 400W AC Servo Motor

Name: HF-KP43JK 102V SPEED 3000RPM Mitsubishi Melservo 400W AC Servo Motor
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: HF-KP43JK
Price: 10000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Japan
Brand Name:	Mitsubishi
Certification:	CE
Model Number:	HF-KP43JK

Detail Information

Place of Origin:

Japan

Brand Name:

Mitsubishi

Certification:

Model Number:

HF-KP43JK

Category:

Industiral Servo Motor

Model:

HF-KP43JK

Rated Output Power:

400W

Rated Speed:

3000r/min

Series:

HC-KP Series

Brand:

Mitsubishi

Highlight:

High Light

Highlight:

ewing machine servo motor

ac servo motor

Trading Information

Minimum Order Quantity:

Price:

Contact

Packaging Details:

New Original Box

Delivery Time:

3-5days

Payment Terms:

T/T / Paypal

Supply Ability:

Product Description

102V SPEED 3000RPM Mitsubishi Melservo 400W AC Servo Motor HF-KP43JK

HF-KP43JK Description

The Mitsubishi HF-KP43JK is a standard-capacity, high-resolution model within the highly regarded HF-KP series of AC servo motors. Designed and manufactured by Mitsubishi Electric, it forms the core of precise and reliable motion control systems. This motor is engineered for integration with Mitsubishi's MR-J4 and MR-J5 series servo amplifiers, offering exceptional responsiveness, high torque, and smooth low-speed operation. It is perfectly suited for a wide range of industrial automation applications requiring accurate positioning, speed control, and rapid start-stop cycles.

HF-KP43JK Features

High Resolution & Precision: Equipped with a high-resolution 24-bit encoder (4,194,304 pulses/rev), enabling ultra-precise position control, minimal speed ripple, and excellent settling characteristics.
High Responsiveness: Features a high-speed serial communication protocol (SSCNET III/H or CC-Link IE TSN with corresponding amplifier) and advanced motor design, allowing for exceptionally high servo gains, fast settling times, and superior tracking performance.
Smooth Low-Speed Operation: Advanced control technology and high-resolution feedback ensure extremely smooth rotation even at very low speeds, essential for precise machining and assembly tasks.
High Brake Option: The "K" suffix indicates a built-in electromagnetic brake, which holds the motor shaft in position when power is off, preventing movement for safety and vertical load-holding applications.
Rugged & Reliable: Features IP65 rating (Drip-proof, Oil-proof) on the shaft end, making it resistant to dust, oil, and water splashes, ensuring reliability in harsh industrial environments.

HF-KP43JK Material & Primary Uses

Motor Material: High-grade electromagnetic steel laminations, high-temperature Class H (180°C) insulation copper windings, durable metal housing, and precision-ground steel shaft. Bearings are high-grade lubricated for long life.
Primary Uses:
- Industry: Factory Automation (FA), Semiconductor Manufacturing, Packaging Machinery, Machine Tools (non-cutting axes), Robotics, Printing Presses, Material Handling Systems.
- Function: Precise positioning of axes, speed synchronization, tension control, and any application requiring dynamic, accurate, and reliable rotary motion.

HF-KP43JK Important Parameters

The following table lists the key technical specifications for the HF-KP43JK model.

Parameter	Specification / Description
Series	Mitsubishi Electric HF-KP Servo Motor
Model	HF-KP43JK 43: Capacity Code (300W) J: Standard 24-bit High-Resolution Encoder K: With Electromagnetic Brake
Motor Type	Permanent Magnet Synchronous Motor (AC Servo Motor)
Rated Output	300 W
Rated Torque	0.95 N·m
Max. Torque	3.3 N·m
Rated Speed	3000 r/min
Max. Speed	6000 r/min
Encoder	Absolute / Incremental 24-bit High-Resolution (4,194,304 p/rev)
Brake	Electromagnetic Brake Included (Hold/Release type)
Shaft	Keyway (Standard)
Protection Class	IP65 (Shaft End)
Insulation Class	Class H (180°C)
Vibration Level	V-10
Matching Amplifier	MR-J4-B, MR-J5 Series (e.g., MR-J5-40B)
