Product Details:

Place of Origin: Japan
Brand Name: Mitsubishi
Certification: CE
Model Number: HF-KP73BG1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Contact
Packaging Details: New Original Box
Delivery Time: 3-5days
Payment Terms: T/T / Paypal
Supply Ability: 50
Get Best Price Contact Now

Detail Information
Category: Industiral Servo Motor Model: HF-KP73BG1
Rated Output Power: 750W Rated Speed: 3000r/min
Series: HF-KP Series Brand: Mitsubishi

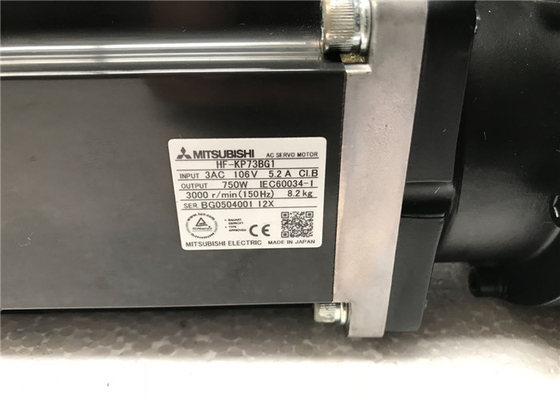

Rated Iutput: 3AC 106V 5.2A
Highlight:

ac servo motor

,

electric servo motor

Product Description

OUTPUT 750W 3000 R/MIN 150 Hz HF-KP73BG1 Industrial Servo Motor Mitsubishi





HF-KP73BG1 Description

The Mitsubishi HF-KP73(BG1) is a high-performance, low-inertia AC servo motor designed for the MELSEC Servo System. It is part of the MR-J4 series compatible motor lineup and is engineered to provide exceptional speed control, high torque, and precise positioning. This motor is ideal for applications requiring rapid acceleration/deceleration and high-accuracy motion control, such as in industrial robots, semiconductor manufacturing equipment, CNC machines, and high-speed packaging machinery. The "BG1" suffix indicates a specific electromagnetic brake option, which holds the motor shaft in place when power is off, preventing movement for safety and vertical axis control.

HF-KP73BG1 Features

  1. 1.
    ​​High Performance:​​ Features high torque and low inertia, enabling quick starts and stops with minimal overshoot, which is critical for high-cycle automation.
  2. 2.
    ​​High Resolution Encoder:​​ Equipped with a 24-bit high-resolution encoder (over 16 million pulses/rev), providing extremely precise position feedback for accurate motion control.
  3. 3.
    ​​Electromagnetic Brake (BG1 model):​​ Includes a fail-safe brake that automatically engages when power is cut, ensuring safety by holding loads and preventing drops on vertical axes.
  4. 4.
    ​​High Efficiency:​​ Utilizes high-energy neodymium magnets and an optimized design for high efficiency, reducing heat generation and energy consumption.
  5. 5.
    ​​Rugged Construction:​​ Built with a robust housing and high-grade bearings to withstand harsh industrial environments, including oil mist and dust.
  6. 6.
    ​​Smoother Operation:​​ Advanced control algorithms when paired with a MR-J4 servo amplifier minimize vibration at low speeds, resulting in smoother rotation and better performance.

HF-KP73BG1 Material & Applications

  • •
    ​​Material:​​ The motor housing is made of high-strength aluminum alloy. The shaft is made of hardened steel. The internal components include high-energy neodymium-iron-boron (NdFeB) permanent magnets and Class F or higher insulation materials.
  • •
    ​​Primary Applications:​​ This servo motor is used in a wide range of high-precision automation equipment:
    • •
      ​​Industrial Robots:​​ Articulated arm and Cartesian robot actuators.
    • •
      ​​Semiconductor Equipment:​​ Wafer handling, wire bonding, and pick-and-place machines.
    • •
      ​​Machine Tools:​​ Tool changers, feed axes for CNC machines.
    • •
      ​​Packaging Machinery:​​ High-speed filling, capping, and labeling systems.
    • •
      ​​Any application requiring a holding brake​​ for vertical (Z-axis) movement or safety-related stopping.

HF-KP73BG1 Important Parameters

The key specifications for the Mitsubishi HF-KP73(BG1) servo motor are summarized in the table below.
Parameter
Specification
​​Model​​
HF-KP73(BG1)
​​Series​​
MR-J4 Compatible Servo Motor
​​Motor Type​​
Low Inertia, AC Servo Motor with Electromagnetic Brake
​​Rated Output​​
0.75 kW
​​Rated Torque​​
2.4 N⋅m
​​Max. Torque​​
7.1 N⋅m
​​Rated Speed​​
3000 min⁻¹ (rpm)
​​Max. Speed​​
6000 min⁻¹ (rpm)
​​Rotor Inertia (J)​​
1.46 × 10⁻⁴ kg⋅m²
​​Brake Type​​
Electromagnetic (Hold-on type)
​​Brake Voltage​​
Typically 24 V DC (Refer to manual for exact specs)
​​Encoder​​
24-bit Absolute Position Encoder (16,777,216 pulses/rev)
​​Frame Size​​
60 mm
​​Protection Class​​
IP67 (Drip-proof, dust-tight, and protected against temporary immersion)
​​Insulation Class​​
Class F (155 °C)
​​Vibration Level​​

V15 or less



仕様

シリーズ名
指令インタフェース
電圧クラス
回転型サーボモータ形名
対応サーボアンプ CC-Link IE
フィールドネットワーク
インタフェース
SSCNETⅢ/H
インタフェース
2軸一体SSCNETⅢ/H
インタフェース
3軸一体SSCNETⅢ/H
インタフェース
汎用インタフェース
SSCNETⅢ
インタフェース
SSCNETⅢ
(フルクローズド制御)
CC-Link対応
位置決め機能内蔵
2軸一体SSCNETⅢ
インタフェース
電源設備容量(注1) [kVA]
連続特性 定格出力 [kW]
定格トルク(注9) [N・m]
最大トルク(トルクアップ時)(注8) [N・m]
最大トルク [N・m]
定格回転速度 [r/min]
最大回転速度 [r/min]
瞬時許容回転速度 [r/min]
連続定格トルク時のパワーレート [kW/s]
定格電流 [A]
最大電流(トルクアップ時)(注8) [A]
最大電流 [A]
回生ブレーキ頻度(注2) [回/分]
慣性モーメントJ [× 10-4 kg・m2]
推奨負荷慣性モーメント比(注4)
速度・位置検出器
装備品
絶縁階級
構造
環境条件(注7) 周囲温度
周囲湿度
雰囲気
標高
耐振動(注6)
質量 [kg]
注釈について
MELSERVO-J3シリーズ
SSCNETⅢインタフェース
SSCNETⅢ(フルクローズド制御)
汎用インタフェース
CC-Link対応位置決め機能内蔵
200V
HF-KP73BG1 1/5
-
-
-
-
MR-J3-70A
MR-J3-70B
MR-J3-70B-RJ006
MR-J3-70T
MR-J3W-77B
MR-J3W-1010B
1.3
0.75
2.4
8.36
7.2
3000
6000
6900
39.9
5.2
18.2
15.6
140
1.63
15倍以下
アブソリュート・インクリメンタル共用18ビットエンコーダ(サーボモータ１回転あたりの分解能:262144 p/rev)
－(オイルシール付モータも対応可能です.(HF-KP□J))
B種
全閉自冷(保護等級:IP65)(注5)
0～40℃(凍結のないこと),保存:-15～70℃(凍結のないこと)
80％RH以下(結露のないこと),保存:90％RH以下(結露のないこと)
屋内(直射日光が当たらないこと),腐食性ガス・引火性ガス・オイルミスト・塵埃のないこと
海抜1000ｍ以下
X:49m/s2 Y:49m/s2
3.9
仕様比較時には注釈が表示されないため,各機種の仕様をご覧ください.
