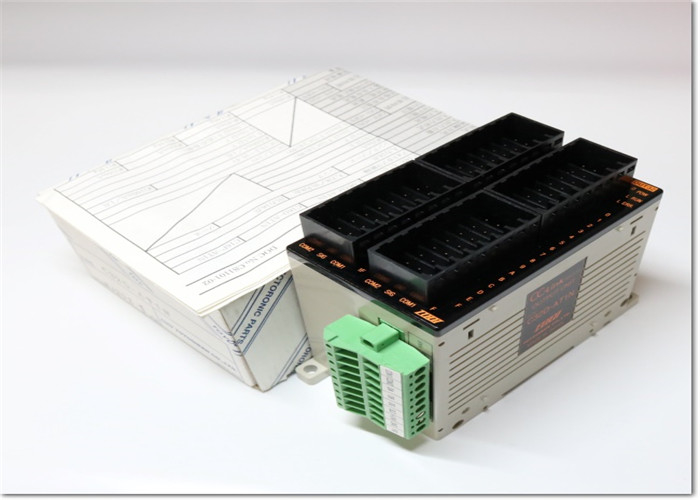

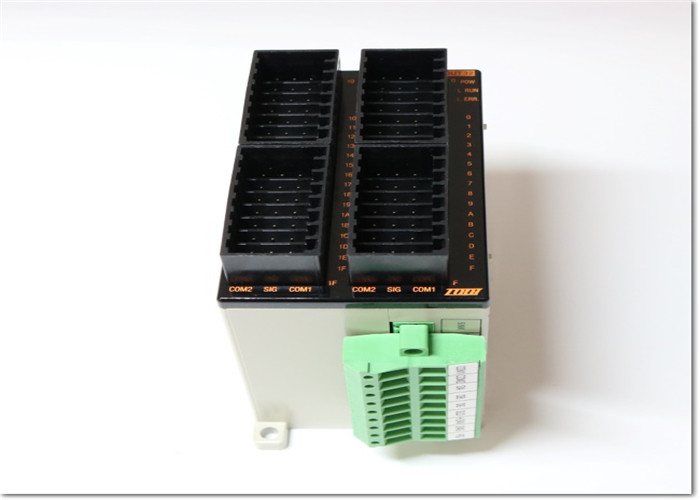

C32D-AT1N Redundant Power Supply Module TOYOGIKEN CC LONK

Large Image :  C32D-AT1N Redundant Power Supply Module TOYOGIKEN CC LONK

Product Details:

Place of Origin: Japan
Brand Name: TOYOGIKEN
Certification: CE
Model Number: C32D-AT1N

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1-10000USD
Packaging Details: New Original Package
Delivery Time: 5-8DAYS
Payment Terms: T/T PAYPAL
Supply Ability: 10
Detailed Product Description
Condition: Brand New Model: C32D-AT1N
Country/Region Of Manufacture: Japan Field Circuit Rating: DC12 / 24V
Revision: REV G/REV D Series: SER 2
Highlight:

plc power supply module

,

diode redundancy module

C32D-AT1N Redundant Power Supply Module TOYOGIKEN CC LONK




C32D-AT1N Overview​

The C32D-AT1N is a ​​32-point DC output module​​ manufactured by TOYOGIKEN (Togi Electric Industry Co., Ltd.), designed for CC-Link industrial networks. It serves as a remote I/O station, converting digital signals from a PLC into DC outputs to control actuators (e.g., solenoids, relays) in automated systems. With its compact design and high noise immunity, it is widely used in manufacturing, process control, and machinery automation to simplify wiring and enhance reliability

.




C32D-AT1N  ​Key Features​

  1. 1.

    ​High-Speed Response and Precision​

    • Supports ​​sink-type (NPN) outputs​​ with a fast response time: ​​OFF→ON ≤0.5 ms​​ and ​​ON→OFF ≤1.5 ms​​ (resistive load).

    • Operates within a voltage range of ​​DC 10.2–26.4 V​​ (ripple rate ≤5%) and provides a maximum load current of ​​500 mA per point​​ (150 mA per point when all points are ON)

      .



  2. 2.

    ​Robust Isolation and Noise Resistance​

    • Features ​​photocoupler isolation​​ between communication, power, and output circuits, ensuring protection against electrical noise and surges.

    • Withstands ​​noise immunity up to ±900 Vp-p​​ (noise width: 1 μs, frequency: 45 Hz) and meets ​​AC 500 V for 1 minute​​ (external terminals to ground) insulation standards

      .



  3. 3.

    ​Efficient Wiring and Compatibility​

    • Utilizes ​​push-in spring clamp terminals​​ for tool-less wiring, reducing installation time and maintenance efforts.

    • Compatible with ​​CC-Link networks​​ (occupies 1 station with 32-point allocation) and operates on a ​​DC 20.4–26.4 V​​ unit power supply (65 mA consumption at DC 24 V, all points ON)

      .



  4. 4.

    ​Compact and Durable Design​

    • Compact dimensions (​​50 × 118 × 40 mm​​; weight: ​​210 g​​) with ​​DIN rail mounting​​ (35 mm) for space-efficient integration into control panels

      .



  5. 5.

    ​Industrial-Grade Reliability​

    • Designed for harsh environments with an operating temperature range of ​​0–55°C​​ and compliance with international standards (e.g., CE, RoHS)

      .




C32D-AT1N  ​Material and Applications​

  • ​Material​​: Constructed with ​​industrial-grade plastics​​ and ​​metal components​​, featuring ​​photocoupler isolation​​ and ​​spring clamp terminals​​ for EMI shielding and mechanical durability

    .



  • ​Primary Applications​​:

    • ​Factory Automation​​: Control of robotic arms, conveyor systems, and packaging machinery.

    • ​Energy Management​​: Switching and control in power distribution units.

    • ​Process Industries​​: Actuator control in chemical and pharmaceutical production lines.


C32D-AT1N  ​Technical Parameters​

​Parameter​

​Specification​

​Output Channels​ 32 points (sink-type/NPN)
​Output Type​ DC 12/24 V
​Rated Load Voltage​ DC 12/24 V
​Operating Voltage Range​ DC 10.2–26.4 V (ripple rate ≤5%)
​Max. Load Current​ 500 mA/point (150 mA/point when all points ON); 4.8 A/common terminal
​Inrush Current​ 1.0 A (for 10 ms max)
​Leakage Current (OFF)​ ≤0.1 mA
​Response Time​ OFF→ON ≤0.5 ms; ON→OFF ≤1.5 ms (resistive load)
​Isolation​ Photocoupler isolation (output circuits)
​Power Supply​ DC 20.4–26.4 V (unit power); 65 mA consumption (at DC 24 V, all points ON)
​Noise Immunity​ ±900 Vp-p (noise width: 1 μs, frequency: 45 Hz)
​Withstand Voltage​ AC 500 V for 1 minute (external terminals to ground)
​Insulation Resistance​ ≥10 MΩ (at DC 500 V, external terminals to ground)
​External Connection​ Push-in spring clamp terminals
​Weight​ 210 g
​Dimensions (H × W × D)​ 50 × 118 × 40 mm

Data sourced from TOYOGIKEN specifications and technical documentation

.



Detailed Product Description


Specifications Control system type input / output points connection terminals, etc.
output
CC-Link
32 outputs
Spring lock (push-in terminal block)
NPN output
Output section Insulation method Rated load voltage Operating voltage range Load current Inrush current Leakage current output type Response time (ON → OFF) Response time (OFF → ON) Surge killer
Photocoupler insulation
DC12 / 24V
DC 10.2 to 26.4 V (ripple ratio within 5%)
Approximately 500mA / point (150mA / point when all points are ON), 4.8A / common
1.0A 10ms or less
0.1mA
Sink type
1.5 ms or less (resistive load)
0.5 ms or less
None
Common method Number of occupied stations I / O unit power supply (voltage) I / O unit power supply (current) Noise withstand voltage Withstand voltage Insulation resistance Mass External connection method
32 points per common
1 station 32 points allocation
DC20.4 ~ 26.4V (ripple ratio within 5%)
65mA or less (24VDC, all points ON)
DC type noise voltage ± 900Vp-p, noise width 1μs, noise frequency 45Hz, by noise simulator
DC external terminals collectively-ground AC500V for 1 minute
DC external terminal lump-earth DC500V 10MΩ or more with insulation resistance meter
340g
7-pole 2-piece connector (transmission path, unit power supply terminal, FG terminal)





Toyo Technics CC-link model



C16X-AT1N, C16P-AT1N C16D-AT1N
C16X-AT1N-C C16D-AT1N-C C32X-AT1N
C32D-AT1N C32X-AT1N-C C32D-AT1N-C
C08XD-AT1N C16XD-AT1N C16XD-AT1N-C
C16X-AT1V C16P-AT1V C16D-AT1V
C16X-AT1V-C C16D-AT1V-C C32X-AT1V
C32X-AT1V-C C32D-AT1V C32P-AT1V
C32D-AT1V-C C16XD-AT1V C16XD-AT1V-C
C16X-CT1V C16P-CT1V C16D-CT1V
