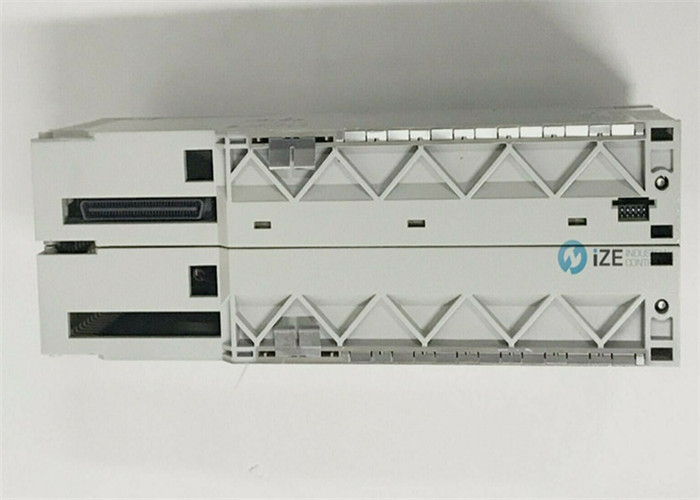

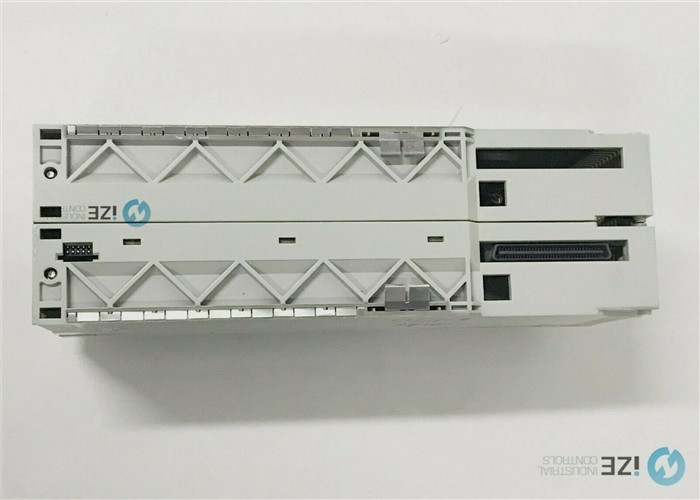

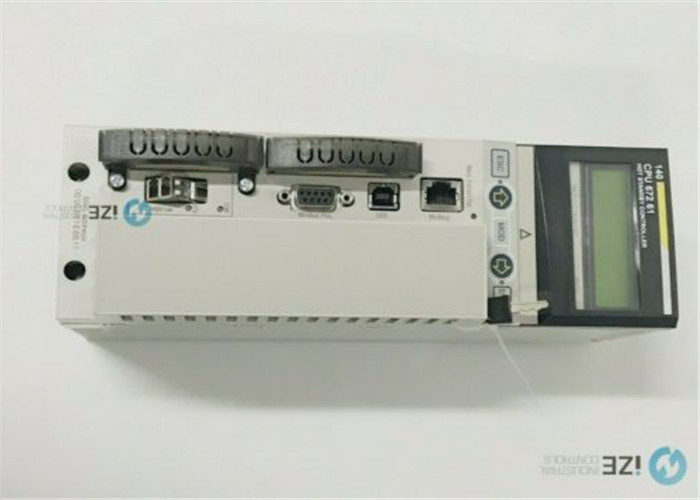

Schneider electric 140CPU67261 3072 KB 266 MHz long distance quantum standby
140 CPU 67x61 modules, 9/125 μm, duplex LC, single mode glass fiber (usually referred to as OS1 or G652 type fiber).
This type of fiber is rated at maximum attenuation of 0.35 dB per km (maximum, at 1300 nm).
This cable can be ordered from a Fiber Optic distributor by the following: LC/LC 9/125 Singlemode Duplex Fiber Patch Cable at the desired length.
Product Details
Main
range of product
Modicon Quantum automation platform
product or component type
Unity processor
Complementary
mode of transmission
Single mode
clock frequency
266 MHz
number of slots
16
10
6
2
4
number of racks
2 - local
number of distributed I/O station
63 1 3 Modbus Plus
number of remote I/O station
31 - 2 S908 remote I/O
31 - 2 ethernet Quantum remote I/O
31 - 2 ethernet X80 remote I/O
discrete I/O number
31744 inputs, 31744 outputs - remote
8000 inputs, 8000 outputs - distributed - per network Modbus Plus
Unlimited (31 drops of 28 slots max) - ethernet remote I/O
0 - local - forbidden in Hot Standby application
analogue I/O number
500 inputs, 500 outputs - distributed - per network Modbus Plus
Unlimited (31 drops of 28 slots max) - ethernet remote I/O
1984 inputs,1984 outputs - remote
0 - local - forbidden in Hot Standby application
application specific I/O
Serial link
Accurate time stamping
High-speed interrupt inputs
Counter
communication service
Ethernet router
number of optional modules
6 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
maximum number of connections
1 USB
2 AS-Interface - distributed
4 AS-Interface - remote
6 Ethernet TCP/IP - local
6 Modbus Plus - local
6 Profibus DP - local
1 Modbus RS232/485 Modbus/ASCII)
integrated connection type
1 Modbus Plus
1 Modbus
1 USB
1 optic fibre Hot Standby
checks
Hot standby
Process control
memory description
Expandable 7168 kB - program with PCMCIA card
Expandable 8 MB - file storage with PCMCIA card
Internal RAM 3072 kB - 1536 kB for data
switch function
Key switch memory port on/off
application structure
1 periodic fast task - forbidden in Hot Standby application
128 I/O interrupt tasks - forbidden in Hot Standby application
128 interrupt tasks - forbidden in Hot Standby application
32 timer interrupt tasks - forbidden in Hot Standby application
4 auxiliary tasks - forbidden in Hot Standby application
1 cyclic/periodic master task -
number of instructions per ms
10.28 Kinst/ms 100 % Boolean
10.07 Kinst/ms 65 % Boolean and 35 % numerical
system overhead
0.2 ms fast task
1 ms master task
bus current requirement
2760 mA
local signalling
Ethernet activity (COM) 1 LED green)
Ethernet collision 1 LED red)
electrical connection
1 female connector SUB-D 9 for connecting to the Modbus Plus network
1 connector RJ45 for connecting Modbus bus
1 connector LC (single mode fiber optic) for interconnecting primary and secondary PLCs up to 16 km
Environment
product certifications
Misc (Marine)
GOST
UL
CE
CSA
standards
HazLoc
Ordering and shipping details
Category
18150 - QUANTUM CONTROLLERS,HSBY,COMM.
Discount Schedule
PC21
GTIN
00785901743019
Package weight(Lbs)
1.46 kg (3.21 lb(US))
Returnability
No
Country of origin
FR
Offer Sustainability
Sustainable offer status
Green Premium product
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause cancer and birth defects or other reproductive harm.For more information go to www.p65warnings.ca.gov
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Environmental Disclosure
Product Environmental Profile
Circularity Profile
End of Life Information
Contractual warranty
Warranty
18 months
OTHER SUPERIOR PRODUCTS
| Yasakawa Motor, Driver SG- |
Mitsubishi Motor HC-,HA- |
| Westinghouse Modules 1C-,5X- |
Emerson VE-,KJ- |
| Honeywell TC-,TK- |
GE Modules IC - |
| Fanuc motor A0- |
Yokogawa transmitter EJA- |
Contact person: Anna
E-mail: wisdomlongkeji@163.com
Cellphone: +0086-13534205279
Similar Products
140CRA21110 140CRA93100 140CRA93101 140CRA93200
140CRP81100 140CRP93100 140CRP93200 140DAI35300
140DAI54000 140DAI54300 140DAI55300 140DAO84000
140DAO84000 140DAO84010 140DAO84210 140DAO84210
140DAO85300 140DDO15300 140DRC83000 140NOM25200
140DDI35300 140DDI45400 140DDI84100 140DDI85300
140DDO35300 140DDO84300 140DDM39000 140DRA84000
140ECH10500 140EHC20200 140NOE25100 140NOM21100
140SHS94500 140XBP00400 140XBP00600 140XBP01000
140XCP50000 140XCP51000 140XTS00200 140XTS10215
140ACI04000 140DDM39000 140DDM69000 140DDO15310
140DDO35300 140DDO88500 140ACI03000 140XBP01600
140DDO35301 140DDO35310 140DDO36400 140DDO84300
140DII33000 140DIO33000 140DRA84000 140DRC83000
140DVO85300 140EDK77100 140 EHC10500 140EHC20200
140EIA92100 140NOM25200 140DSI35300 140DSI35300
140ERT85410 140ESI06210 140HLI34000 140MSB10100
140MSC10100 140NOA61100 140NOE31100 140NOE35100
140NOE51100 140NOE55100 140NOE77101 140NOE77110
140NOL91100 140NOL91120 140NOM21100 140NOM21200
140SHS94500 140XBE10000 140XBP00200 140XBP00300
140XBP00400 140XBP00600 140XBP01000 140XBP0160
MODICON QUANTUM PAC
- Numerous built-in ports (USB port, Ethernet TCP/IP port with Web server, Modbus Plus and at least one Modbus serial port) on the front panel
- In-rack connectivity to Profibus® DP
- Embedded Ethernet Router
- Increase the availability of your architecture by using Quantum Ethernet I/O modules (QEIO) that support deterministic Remote I/O (RIO)
- The Modicon X80 I/O expands your architecture and easily integrates your distributed devices in the same network (such as HMI, variable speed drives, I/O islands…)
- Supports the Highway Addressable Remote Transducer (HART), the protocol for sending and receiving digital information across analog wires between smart devices and a control or monitoring system
Benefits
Choose performance
Offering a large range of processors, Modicon Quantum is ideal for complex processes. The power of its processors results in optimum cycle times, while integrating even more communication functions, diagnostics, memory flexibility and data storage. The Quantum Safety system is now available, certified by TÜV Rheinland, simple to use and ready to be integrated in your automated system. >SIL3 Modicon Quantum Safety PLC
More flexibility
Choose the best topology, daisy chain loop, ring, star, bus… for the design of your Ethernet architecture.
Higher availability
Hot-standby CPUs and daisy chain loop topology improve the availability of your process. In the event that the cable is broken, the recovery time is less than 50 ms for an entire Quantum Ethernet I/O architecture.
Application
Process control
Safety
Infrastructure
Oil & Gas
Chemical
Petrochemical
Transportation
Water Wastewater
Food & Beverage
Metals
