Main
range of product
Modicon Premium Automation platform
product or component type

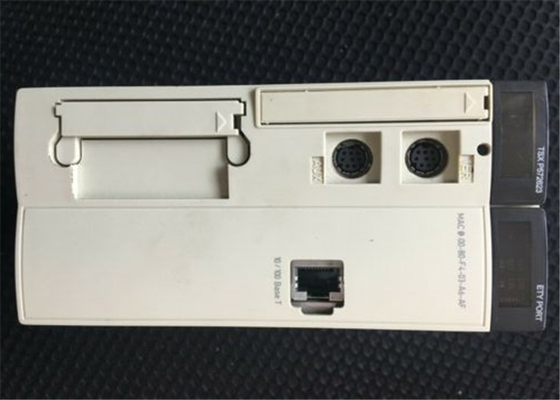

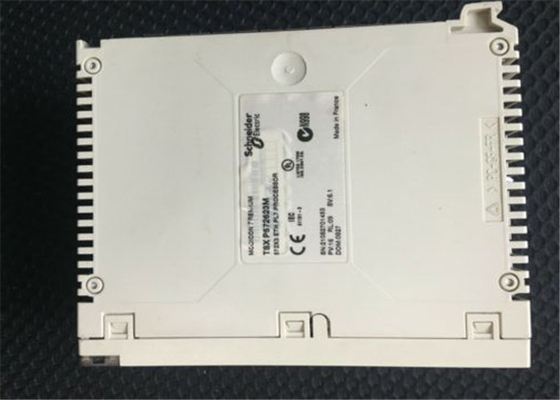

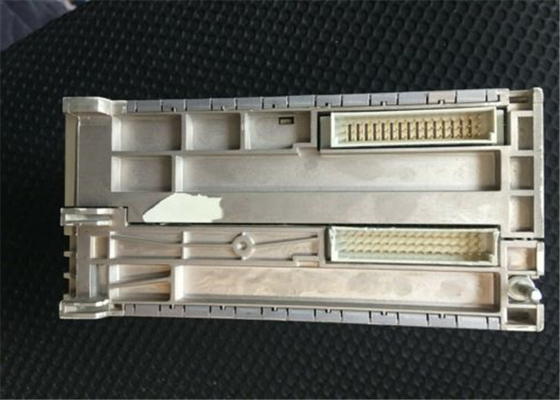

Double-format PL7 processor
software designation
PL7 Junior/Pro
Complementary
concept
Transparent Ready
number of racks
16 4/6/8 slots
8 12 slots
number of slots
64
96
128
discrete I/O processor capacity
1024 I/O
analogue I/O processor capacity
80 I/O
number of application specific channel
24
number of process control channel
10 up to 30 simple loops
integrated connection type
Non isolated serial link 2 female mini DIN connector (19.2 kbit/s)
Ethernet TCP/IP RJ45 connector (10/100 Mbit/s)
communication module processor capacity
1 fieldbus module (none if CANopen used)
4 AS-Interface bus modules
1 CANopen
memory description
Internal RAM (with PCMCIA card) 48 Kwords data
Internal RAM (without PCMCIA card) 48 Kwords program and data
PCMCIA card 160 Kwords program
PCMCIA card 2688 Kwords additional data storage
maximum size of object areas
30.5 %MWi internal words located internal data
32 %KWi constant words located internal data
8132 %Mi located internal bits
application structure
1 master task
1 fast task
64 event tasks
execution time per instruction
0.19 µs Boolean without PCMCIA card
0.21 µs Boolean with PCMCIA card
0.25 µs word or fixed-point arithmetic without PCMCIA card
0.42 µs word or fixed-point arithmetic with PCMCIA card
2.6 µs floating points with PCMCIA card
2.6 µs floating points without PCMCIA card
number of instructions per ms
2.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card
3.57 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card
3.7 Kinst/ms 100 % Boolean with PCMCIA card
4.76 Kinst/ms 100 % Boolean without PCMCIA card
system overhead
0.35 ms for fast task
1 ms for master task
marking
CE
local signalling
1 LED (green)Ethernet TCP/IP port ready (RUN):
1 LED (green)processor running (RUN):
1 LED (red)collision detection (COL):
1 LED (red)Ethernet TCP/IP port fault (ERR):
1 LED (red)I/O module or configuration fault (I/O):
1 LED (red)processor or system fault (ERR):
1 LED (yellow)activity on the terminal port (TER):
1 LED (yellow)Ethernet link diagnostics (STS):
1 LED (yellow)reception activity (RX):
1 LED (yellow)transmission activity (TX):
current consumption
1110 mA at 5 V DC
module format
Double
Environment
standards
CSA C22.2 No 142
IEC 61131-2
CSA C22.2 No 213 Class I Division 2 Group D
73/23/EEC
CSA C22.2 No 213 Class I Division 2 Group A
CSA C22.2 No 213 Class I Division 2 Group B
93/68/EEC
92/31/EEC
UL 508
89/336/EEC
CSA C22.2 No 213 Class I Division 2 Group C
product certifications
BV
DNV
RMRS
ABS
GL
LR
RINA
ambient air temperature for operation
0…60 °C
ambient air temperature for storage
-25…70 °C
relative humidity
10…95 % without condensation for operation
5…95 % without condensation for storage
operating altitude
0...2000 m
protective treatment
TC
IP degree of protection
IP20
