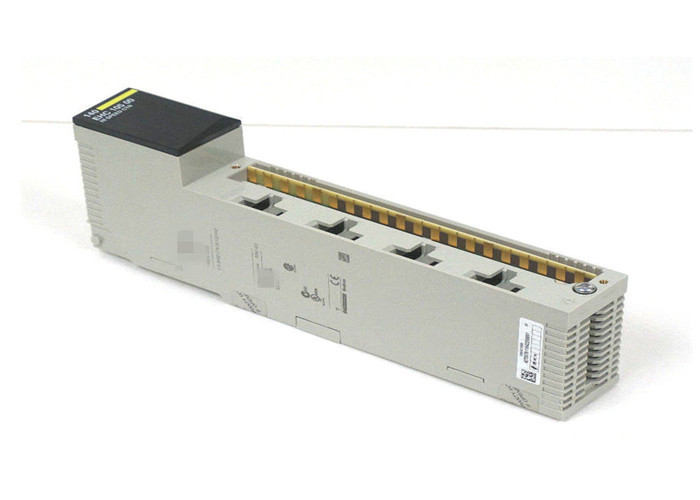

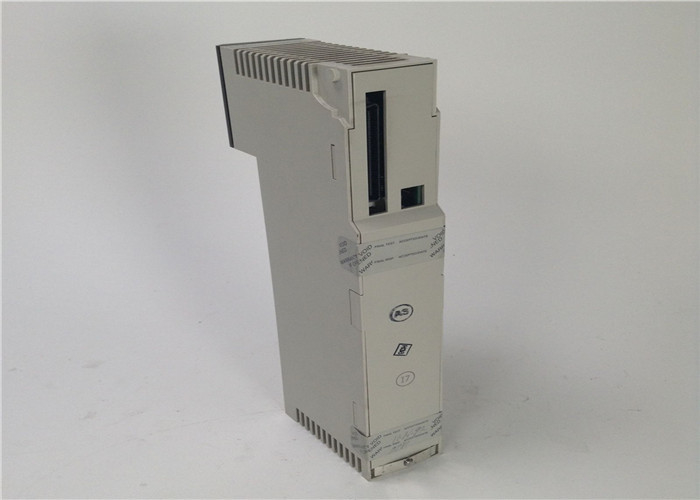

Schneider 140EHC10500 High speed counting module 100kHz 5 VDC 35kHz 24VDC 5 channels

: Large Image : Schneider 140EHC10500 High speed counting module 100kHz 5 VDC 35kHz 24VDC 5 channels

Product Details:

Place of Origin:	France
Brand Name:	Schneider
Certification:	CE
Model Number:	140EHC10500

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	1-1000USD/pc
Packaging Details:	new original package
Delivery Time:	2-3 working days
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	10 pcs/month

Contact Now

Detailed Product Description

Range Of Product:	Modicon Quantum Automation Platform	Country Of Origin:	France
Brand:	Schneider	PN:	140EHC10500
Condition:	Brand New	Type:	QUANTUM PROCESSOR
MOQ:	1 PIECE	Warranty:	1 Year
Highlight:	modicon quantum processor , modicon quantum cpu

Schneider 140EHC10500 High speed counting module 100kHz 5 VDC 35kHz 24VDC 5 channels

Main
range of product	Modicon Quantum automation platform
product or component type	High-speed counter module
number of channels	5

Complementary
number of inputs	8
addressing requirement	12 output words 12 input words
data format	2147483647 dec 32 bits 65535 dec 16 bits
counting input voltage	30 V DC max
counting input current	7 mA
counting input type	Discrete incremental counter
counting frequency	100000 Hz
duty cycle	1/1 counter input
discrete input current	5 mA
operating threshold	15...30 V single ended mode 24 V REF DC at state on 3...5 V single ended mode 24 V REF DC at state off
discrete output number	8
discrete output type	Field Effect Transistor (FET)
discrete output voltage	0 V switch off DC 20...30 V switch on DC
load current	0.21 A
maximum leakage current	0.1 mA state off
maximum voltage drop	<1.25 V state on
isolation between channels and bus	500 Vrms for 60 s
fault type	Loss of output field power
output short-circuit protection	Internal
power dissipation	>= 6 W
bus current requirement	250 mA
external power requirement	19.2...30 V
rack type	Local Distributed Remote
local signalling	5 LEDschannel status:
marking	CE
current consumption	<= 1140 mA at 24 V DC external power supply
module format	Standard

Environment
resistance to electrostatic discharge	4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2
resistance to electromagnetic fields	10 V/m 80…1000 MHz conforming to IEC 801-3
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-40…85 °C
relative humidity	95 % without condensation
operating altitude	<= 5000 m
standards	UL 508
product certifications	RINA UL GOST LR CSA Class 1 Division 2 RRS ABS GL DNV C-Tick

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
