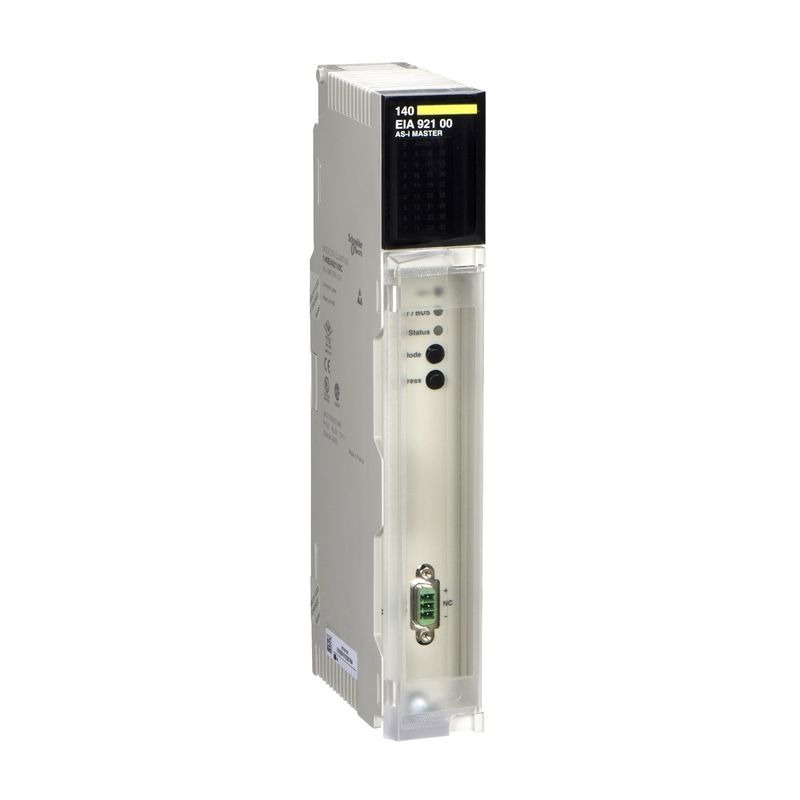

140EIA92100 Schneider Quantum AS-i MASTER Template 1 Channel New Original
Mainrange of product
Modicon Quantum automation platform
product or component type
AS-Interface master module
Complementaryrange compatibility
AS-Interface cabling system
AS-i version
V1
actuator sensor interface profile [AS-i]
M2
addressing
Standard
maximum cycle time
5 ms
bus length
0.00…328.08 ft (0…100 m) without repeater
discrete input number
124
discrete output number
124
number of slave
31
number of module per PLC
2 per Quantum PLC distributed drop
4 per Quantum PLC local drop
4 per Quantum PLC remote drop
supply
Via AS-Interface line
[Us] rated supply voltage
30 V DC
AS-i cabling system cycle time
156 x (n + 1) µs 31
156 x (n + 2) µs
transmission rate
167 kbit/s
reverse polarity protection
Internal
local signalling
Slave addresses and state of slave I/O bits 32 LEDs
electrical connection
1 male connector SUB-D 3 pins AS-Interface link
current consumption
<= 100 mA
typical current consumption
60 mA 30 V DC
marking
CE
net weight
0.99 lb(US) (0.45 kg)
EnvironmentIP degree of protection
IP20
ambient air temperature for operation
32…140 °F (0…60 °C)
product certifications
FM
CSA
GOST
C-Tick
UL
Ordering and shipping detailsCategory
18155-QUANTUM I/O & POWER SUPPLIES
Discount Schedule
PC21
GTIN
00785901785286
Package weight(Lbs)
1.04 lb(US) (0.472 kg)
Returnability
No
Country of origin
FR
Offer SustainabilitySustainable offer status
Green Premium product
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause cancer and birth defects or other reproductive harm.For more information go to www.p65warnings.ca.gov
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Environmental Disclosure
Product Environmental Profile
Circularity Profile
End of Life Information
