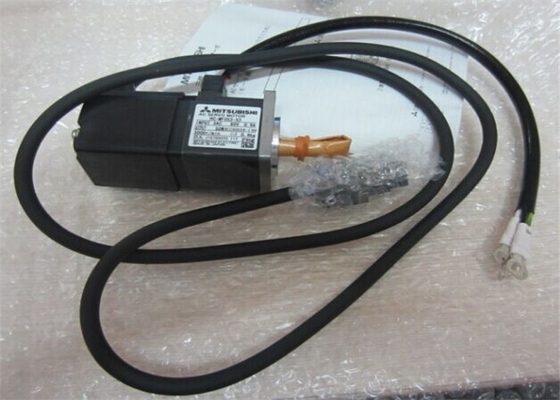

HC-MF053-S3 Mitsubishi Small Servo Motor Power 50W 3 PHASE CNC Industrial Electric Motor
Product Details:
| Place of Origin: | Japan |
| Brand Name: | Mitsubishi |
| Certification: | CE |
| Model Number: | HC-MF053-S3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact us |
| Packaging Details: | New Original Box |
| Delivery Time: | In Stock |
| Payment Terms: | T/T / Paypal |
| Supply Ability: | 100 |
|
Detail Information |
|||

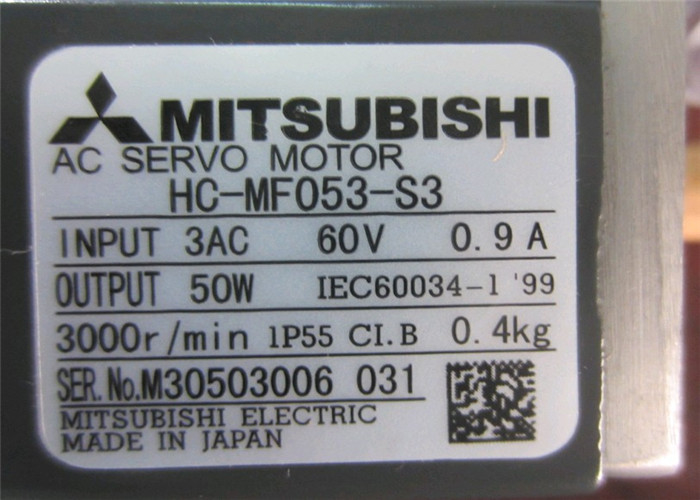

| Category: | Industiral Servo Motor | Model: | HC-MF053-S3 |
|---|---|---|---|
| Rated Output Power: | 50W | Rated Speed: | 3000r/min |
| Series: | HC-MF Series | Brand: | Mitsubishi |
| Input: | 3AC 60V | ||
| Highlight: | ewing machine servo motor,ac servo motor |
||
Product Description
Mitsubishi small servo motor HC-MF053-S3 Power 50W 3 PHASE CNC Industrial electric motor
HC-MF053-S3 Description
HC-MF053-S3 Features
- •
Low Inertia, High Responsiveness:The rotor is designed with low inertia, enabling extremely quick starts and stops. This minimizes settling time and allows for higher machine throughput. - •
High-Resolution Encoder:Features a 24-bit high-resolution encoder (over 16 million pulses/rev), providing exceptional positional accuracy and ultra-smooth low-speed rotation without cogging. - •
High Rigidity:The motor is built with high rigidity to withstand high loads and maintain stability during demanding operation, minimizing torque loss and vibration. - •
Compact and Lightweight:The slim and lightweight design saves space in machinery, allowing for more compact equipment layouts. - •
IP67 Protection Level (Oil Resistant & Waterproof Model):The "S3" designation indicates a high degree of protection against oil and water ingress, making it suitable for harsh environments where coolants or washdowns are present. - •
Comprehensive Safety Features:Supports various safety functions when paired with a compatible MR-J4 servo amplifier (e.g., Safe Torque Off - STO), enhancing machine safety and compliance with international standards.
HC-MF053-S3 Material & Application
- •
Frame & Housing:Constructed from high-strength Aluminum Alloyfor excellent heat dissipation and lightweight properties. - •
Shaft:Made from Hardened Steelto ensure durability and resistance to wear from belts, pulleys, or gears. - •
Windings:Utilizes High-Grade Copper Magnet Wirewith Class F (155°C)or higher insulation for reliable operation in elevated temperatures. - •
Bearings:High-precision, long-life bearings suitable for high-speed operation. - •
Seals:Special seals and gaskets are used to achieve the IP67 rating.
HC-MF053-S3 Primary Applications:
- •
Industrial Robots and Cartesian Gantry Systems - •
Packaging and Wrapping Machinery - •
Semiconductor and Electronic Assembly Equipment - •
Printing and Material Handling Machines - •
Food and Beverage Machinery (requiring washdown)
HC-MF053-S3 Important Parameters
INSTALLTION of Protection from oil and water
(1) Next, the servo motor is not waterproof (IP44). Do not subject the servo motor to oil and water.
Especially for the HC-MF / HC-KF / HC-AQ / HC-KFS / HC-MFS and HA-FF series, do not subject the
shaft-through portion to oil.
(2) When the gear box is mounted horizontally, the oil level in the gear box should always be lower than
the oil seal lip on the servo motor shaft. If it is higher than the oil seal lip, oil will enter the servo motor, leading to a fault. The HC-MF / HC-KF / HC-AQ / HC-MFS and HC-KFS series servo motor is not equipped with an oil seal and cannot be used with the gear box as described above. Oil should be shut off on the gear box side.
(3) When installing the servo motor horizontally, face the power cable and encoder cable downward. When installing the servo motor vertically or obliquely, provide a trap for the cable.
(4) Do not use the servo motor with its cable soaked in oil or water. (Figure on the right)
(5) When the servo motor is to be installed with the shaft end at top, provide measures so that it is not
exposed to oil and water entering from the machine side, gear box, etc.
(6) If the servo motor is exposed to oil such as coolant, the sealant, packing, cable and others may be
affected depending on the oil type.
(7) In the environment where the servo motor is exposed to oil mist, oil, water, grease and/or like, the
servo motor of the standard specifications may not be usable. Contact us.
(8) In the case of the servo motor with oil seal, the oil seal may sound during operation. It poses no
problems in function.
