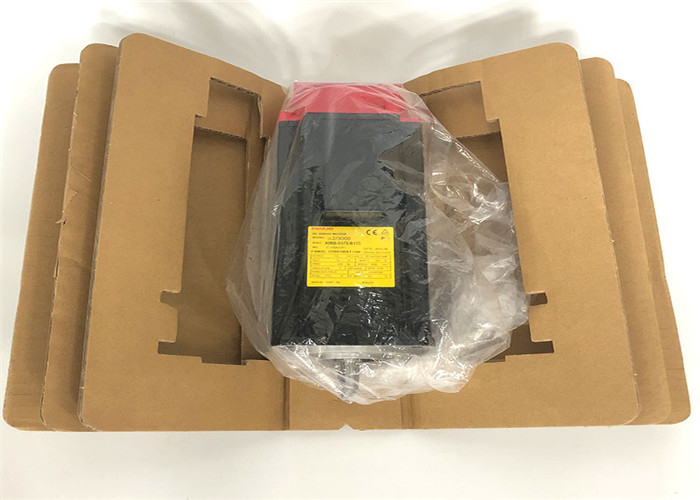

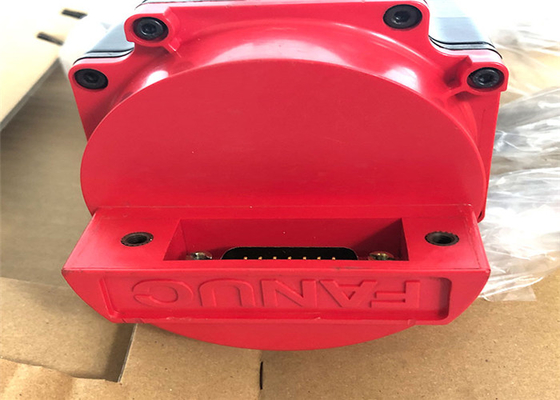

A06B-0373-B175 Industrial Servo Motor Fanuc Alpha 2/3000 3000rpm 200-230V

Industrial Servo Motor A06B-0373-B175 Fanuc Alpha 2/3000 3000 rpm 200-230V

A06B-0373-B175 Description​​

The FANUC A06B-0373-B175 is an AC servo motor from FANUC's Alpha series, specifically the "Model Alpha 2/3000" line

. It is designed for integration into industrial automation systems, particularly those requiring robust and precise motion control, such as CNC machinery, robotics, and various automated manufacturing equipment

. This motor is part of a comprehensive system that works in conjunction with FANUC's proprietary drives and controllers to deliver high-performance operation

.

​​A06B-0373-B175 Features​​

• •

  ​​High-Performance Drive System:​​ As part of the Alpha series, this motor is engineered to work seamlessly with FANUC's advanced servo amplifiers and CNC systems, ensuring high precision and responsiveness in motion control applications.

• •

  ​​Model Variants:​​ The search results indicate the existence of a variant, the A06B-0373-B175-R, suggesting potential differences in specifications or options such as a brake or specific feedback system

  .



• •

  ​​Industrial Application Focus:​​ The motor is built for demanding industrial environments, aiming to provide reliability and durability in continuous operation scenarios common in automation and machining centers

  .



• •

  ​​System Integration:​​ It is designed for full integration into FANUC's ecosystem, allowing for streamlined setup, parameter tuning, and diagnostics through compatible control units

  .



​​A06B-0373-B175 Material and Application​​

The specific materials used in the construction of the A06B-0373-B175 are not detailed in the provided search results. However, industrial servo motors of this type typically utilize high-grade electrical steel laminations for the stator and rotor, high-strength permanent magnets (often rare-earth like Neodymium), copper windings, and a robust housing made from aluminum alloy or steel for effective heat dissipation and mechanical protection.

Its primary application is in high-precision industrial motion control systems. This includes:

• •

  ​​CNC Machining Centers:​​ For controlling spindle movement, tool changers, and axes drives.

• •

  ​​Industrial Robotics:​​ Providing the actuation for robotic joints and arms.

• •

  ​​Factory Automation Equipment:​​ Used in automated assembly lines, packaging machinery, and material handling systems.

• •

  ​​Other Precision Machinery:​​ Where accurate control of position, speed, and torque is critical

  .



​​Important Parameters​​

The search results provide very limited specific technical parameters for this exact model. The model designation "Alpha 2/3000" suggests it is likely a 2kW motor with a maximum speed of 3000 RPM

. The following table summarizes what can be inferred, but ​​for absolute accuracy, consulting the official FANUC technical manual for this specific model is strongly recommended.​​

Manufactured by FANUC

• FANUC
• A06B-0373-B175
• A06B0373B175
• DISCONTINUED BY MANUFACTURER
• SERVO MOTOR
• AC SERVO MOTOR A2/3000 A64 WITH BRAKE
• AC SERVO TYPE A2/3000

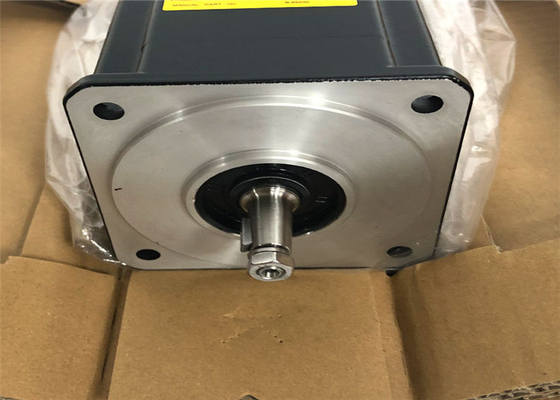

• TAPERED SHAFT
• BRAKE
• A64
• 2.6AMP
• 200-230V
• 50/60HZ
• 3 PHASE
• 3000RPM

A06B-0373-B175 Fanuc Alpha 2/3000 Servo Motor

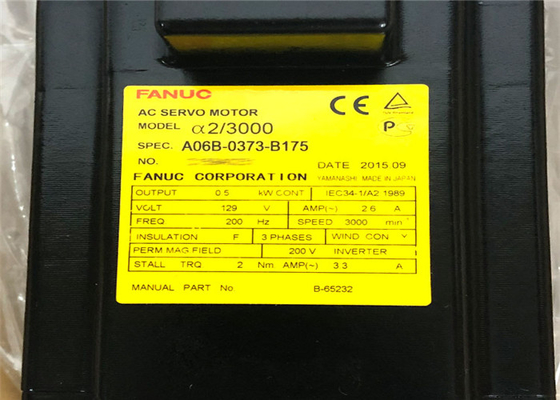

Model 2/3000 Fanuc Alpha Servo Motor A06B-0373-B175. This motor series stats are the following: 0.4 KW – 2Nm TRQ, 2.6 Amp, 3 phase 129V @ 200Hz, Max 3000 RPM motors, with a tapered shaft, with brake, and with IP67 standard seals fitted onto the 2/3000 motors. Of this generation the 0373 Alpha series red cap Model 2/3000 motor was fitted on small to medium sized machine tool.
