Balluff Proximity switch BES M18MI-NSC80B-S04K BES007M Sensor

Name: Balluff Proximity switch BES M18MI-NSC80B-S04K BES007M Sensor
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: M18MI-NSC80B-S04K BES007M
Price: 10000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hungary
Brand Name:	Balluff
Certification:	CE
Model Number:	M18MI-NSC80B-S04K BES007M

Detail Information

Place of Origin:

Hungary

Brand Name:

Balluff

Certification:

Model Number:

M18MI-NSC80B-S04K BES007M

Highlight:

High Light

Highlight:

servo motor amplifier

servo drive amplifier

Trading Information

Minimum Order Quantity:

Price:

Discuss

Packaging Details:

Original packing

Payment Terms:

Western Union、T/T、Paypal

Supply Ability:

1000pcs per year

Product Description

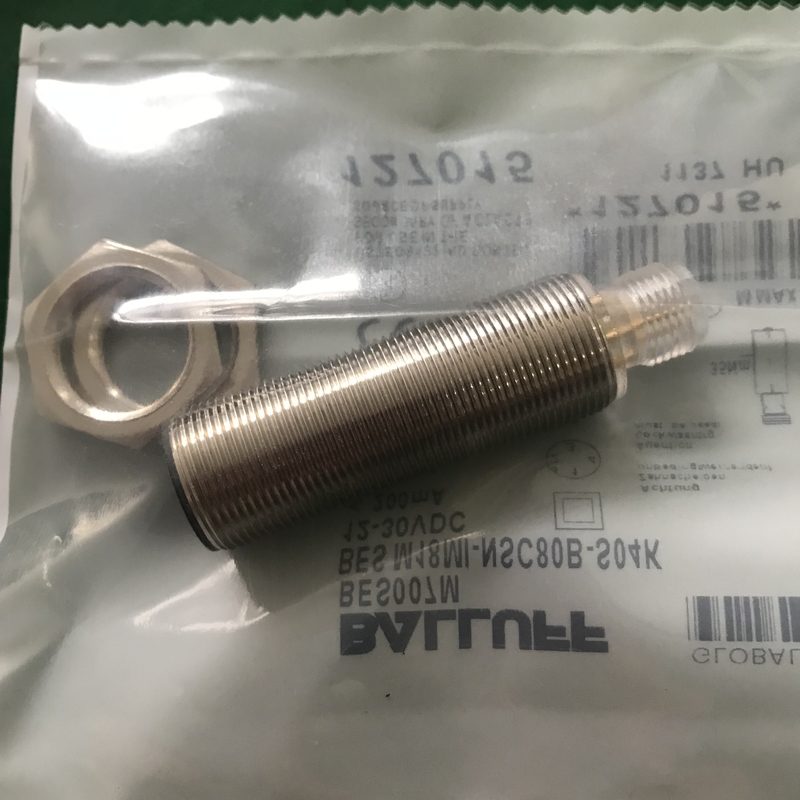

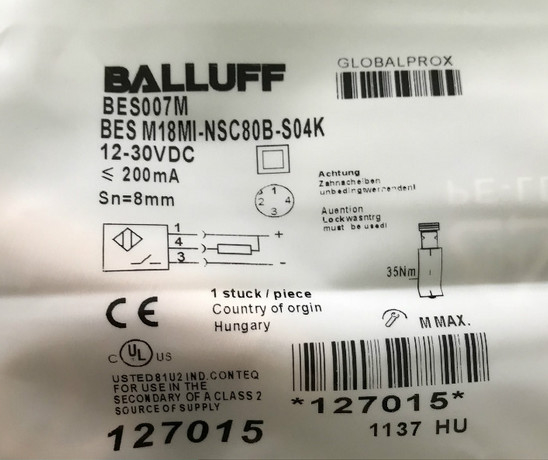

Balluff Proximity switch BES M18MI-NSC80B-S04K BES007M Sensor

Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions.
The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.

Key features:

Dimension: Ø 18 x 65 mm

Style: M18x1

Installation: for flush mounting

Range: 8 mm

Switching output: NPN Normally open (NO)

Switching frequency: 150 Hz

Housing material: Brass

Surface protection: nickel plated

Material sensing surface: PA 12

Connection: Connector, M12x1-Male, 4-pin

Operating voltage Ub: 12...30 VDC

Ambient temperature: -25...70 °C

IP rating: IP68

Approval/Conformity: CE, cULus, EAC, WEEE
