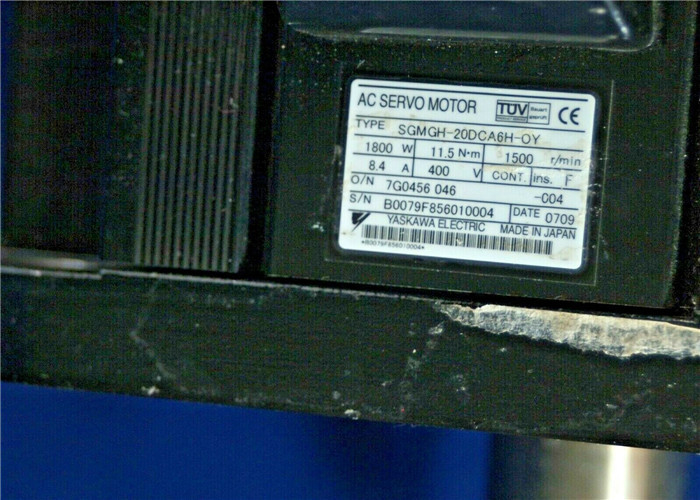

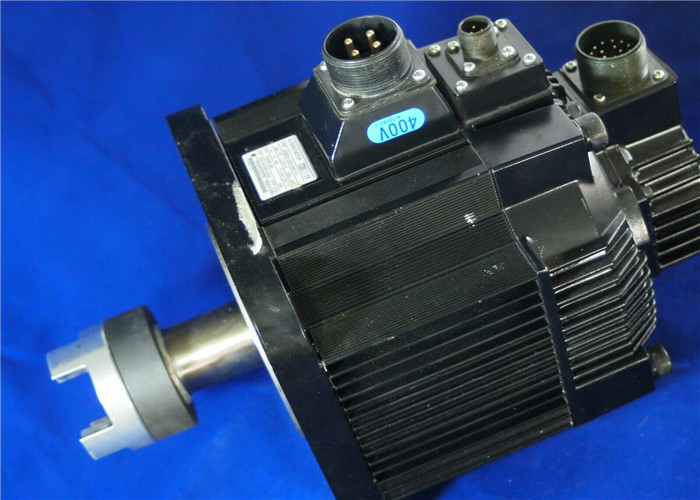

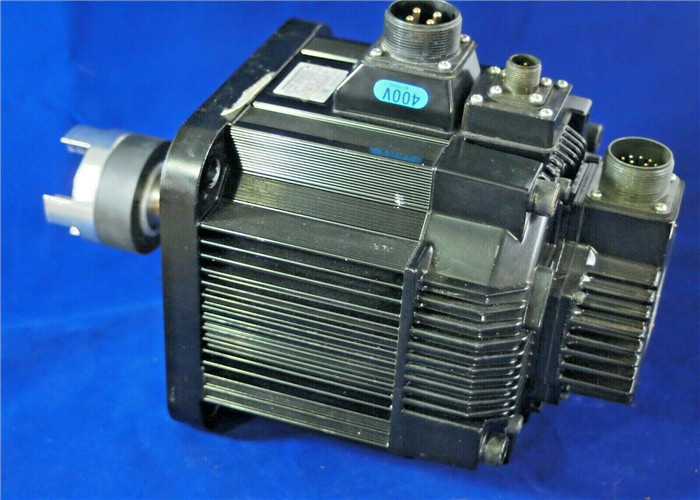

Industrial Yaskawa Electric AC servo motor SGMGH 20DCA6H OY 1.8KW 400V Made in Japan
SPECIFITIONS
1800W
11.5N.m
1500r/min
8.4A
400C
Ins F
Features
6 Different Designs
Automatic Motor Recognition by Servo Drive
Peak Torque 300% of Nominal During 3 Seconds
Why Choose WTL?
12 Month Warranty
Experienced repair engineers
State of the art workshops
Custom Built Test Rigs
Time Rating: Continuous
Ambient Humidity: 20 to 80% (non-condensing)
Insulation: Class F
Rated Speed: 3000rpm
Vibration: 15mm or less
Maximum Speed: 5000rpm
Withstand Voltage: 1500VAC
Excitation: Permanent magnet
Insulation Resistance: 10MW
minimum at 500VDC Drive Method: Direct drive
Enclosure: Totally-enclosed, self-cooled IP67 (except for shaft opening)
Mounting: Flange-mounted
Ambient Temperature: 0 to 40ºC
Painting Color: Muncell notation N1
The SGMSH Sigma II servo motor is a legacy product and no longer promoted in the Americas. The SGMSH servo motor series had a high torque-to-inertia ratio and incorporated the segmented stator design, which dramatically reduced overall size. These servo motors were well suited for high-cycle-rate applications.
rensiz 2,84 0,45 SGDH-05DE-OY XD-05-TN SGMGH-05DCA6F-OY
5,39 0,85 SGDH-10DE-OY XD-10-TN SGMGH-09DCA6F-OY
8,34 1,3 SGDH-15DE-OY XD-15-TN XD-20-TN SGMGH-13DCA6F-OY
11,50 1,80 SGDH-20DE-OY SGMGH-20DCA6F-OY
18,60 2,90 SGDH-30DE-OY XD-30-TN SGMGH-30DCA6F-OY
28,40 4,40 SGDH-50DE-OY XD-50-TN SGMGH-44DCA6F-OY
35,00 5,50 SGDH-60DE-OY - SGMGH-55DCA6F-OY
48,00 7,50 SGDH-75DE-OY - SGMGH-75DCA6F-OY
70,00 11,50 SGDH-1ADE-OY - SGMGH-1ADCA6F-OY
95,40 15,00 SGDH-1EDE-OY - SGMGH-1EDCA6F-OY
Frenli 2,84 0,45 SGDH-05DE-OY XD-05-TN SGMGH-05DCA6H-OY
5,39 0,85 SGDH-10DE-OY XD-10-TN SGMGH-09DCA6H-OY
8,34 1,30 SGDH-15DE-OY XD-15-TN SGMGH-13DCA6H-OY
11,50 1,80 SGDH-20DE-OY XD-20-TN SGMGH-20DCA6H-OY
18,60 2,90 SGDH-30DE-OY XD-30-TN SGMGH-30DCA6H-OY
28,40 4,40 SGDH-50DE-OY XD-50-TN SGMGH-44DCA6H-OY
35,00 5,50 SGDH-60DE-OY - SGMGH-55DCA6H-OY
48,00 7,50 SGDH-75DE-OY - SGMGH-75DCA6H-OY
70,00 11,50 SGDH-1ADE-OY - SGMGH-1ADCA6H-OY
95,40 15,00 SGDH-1EDE-OY - SGMGH-1EDCA6H-OY
düz şaft Frensiz 2,84 0,45 SGDH-05DE-OY XD-05-TN SGMGH-05D2A6F-OY
5,39 0,85 SGDH-10DE-OY XD-10-TN SGMGH-09D2A6F-OY
8,34 1,3 SGDH-15DE-OY XD-15-TN SGMGH-13D2A6F-OY
11,50 1,80 SGDH-20DE-OY XD-20-TN SGMGH-20D2A6F-OY
18,60 2,90 SGDH-30DE-OY XD-30-TN SGMGH-30D2A6F-OY
28,40 4,40 SGDH-50DE-OY XD-50-TN SGMGH-44D2A6F-OY
35,00 5,50 SGDH-60DE-OY - SGMGH-55D2A6F-OY
48,00 7,50 SGDH-75DE-OY - SGMGH-75D2A6F-OY
70,00 11,50 SGDH-1ADE-OY - SGMGH-1AD2A6F-OY
95,40 15,00 SGDH-1EDE-OY - SGMGH-1ED2A6F-OY
Frenli 2,84 0,45 SGDH-05DE-OY XD-05-TN SGMGH-05D2A6H-OY
5,39 0,85 SGDH-10DE-OY XD-10-TN SGMGH-09D2A6H-OY
8,34 1,30 SGDH-15DE-OY XD-15-TN SGMGH-13D2A6H-OY
11,50 1,80 SGDH-20DE-OY XD-20-TN SGMGH-20D2A6H-OY
18,60 2,90 SGDH-30DE-OY XD-30-TN SGMGH-30D2A6H-OY
28,40 4,40 SGDH-50DE-OY XD-50-TN SGMGH-44D2A6H-OY
35,00 5,50 SGDH-60DE-OY - SGMGH-55D2A6H-OY
48,00 7,50 SGDH-75DE-OY - SGMGH-75D2A6H-OY
70,00 11,50 SGDH-1ADE-OY - SGMGH-1AD2A6H-OY
95,40 15,00 SGDH-1EDE-OY - SGMGH-1ED2A6H-OY
