Mitsubishi Electric MR-J4-100A AC Servo Amplifier 3-phase AC170 V

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

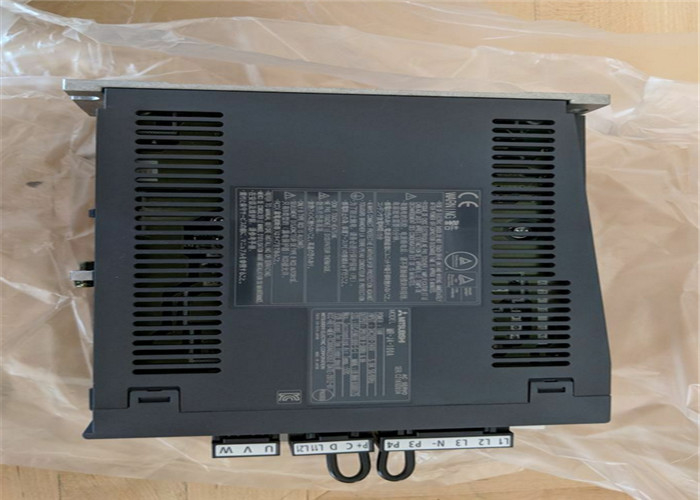

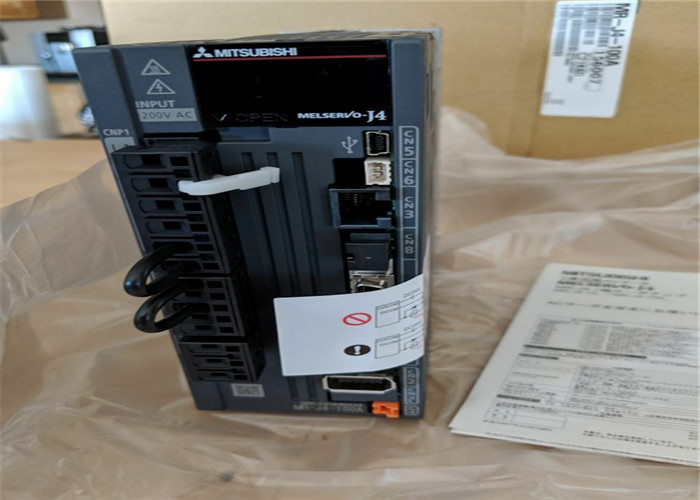

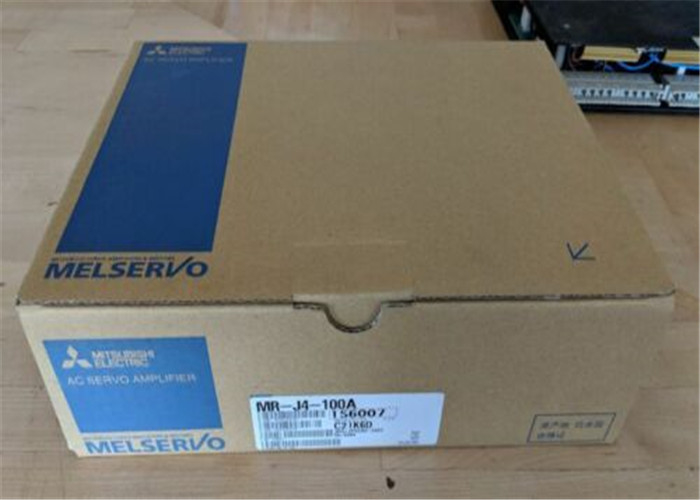

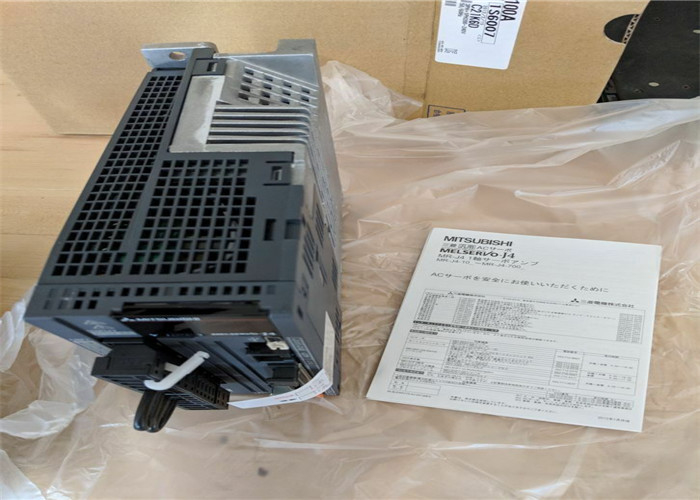

Mitsubishi Electric MR-J4-100A AC Servo Amplifier 3-phase AC170 V

Large Image :  Mitsubishi Electric MR-J4-100A AC Servo Amplifier 3-phase AC170 V

Product Details:

Place of Origin: Japan
Brand Name: Mitsubishi
Certification: CE
Model Number: MR-J4-100A

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: contact
Packaging Details: new and original
Delivery Time: 3-5days
Payment Terms: Western Union, T/T,paypal
Supply Ability: 1000
Detailed Product Description
Manufacturer: Mitsubishi Product No: MR-J4-100A
Product Type: AC Servo Amplifier Series Name :: MELSERVO-J4 Series
Voltage Class: 200V Motor Rated Output: 1kw
Rated Voltage: Three-phase AC170 V Rated Current: 6.0A
Allowable Frequency Fluctuation: Within ± 5%
High Light:

servo motor amplifier

,

servo drive amplifier

Mitsubishi Electric MR-J4-100A AC Servo Amplifier 3-phase AC170 V


Product Details:



Manufacturer Mitsubishi Electric
Product No MR-J4-100A
Product type Servo Amplifier
Series name MELSERVO-J4 series
Command interface General-purpose interface
Voltage class 200V
Motor rated output 1KW
Servo amplifier form name MR-J4-100A
Rated voltage Three-phase AC170 V
Rated current 6.0A
Allowable frequency fluctuation Within ± 5%
Rated current 0.2A
Shipping Weight 2.5 Kg









Product Description:





The Mitsubishi MR-J4-100A (MRJ4100A) is a 200V servo amplifier from the Melservo MR-J4 series that produces 1kW. The servo amplifier input has a 3-phase voltage of 200 to 240VAC with the permissible voltage flux between 170 to 264VAC. The input frequency is 50/60Hz and a current of 5.0A. The output of the MR-J4-100A has a voltage of 170V and a frequency between 0-360Hz while the output current is 6.0A. The MR-J4-100A amplifier itself weighs 3.1 pound (1.4kg).

The protective structure of the MR-J4-100A servo amplifier has an IP rating of IP20. This rating gives it a protection against finger contact or the contact with other foreign objects. The MR-J3-100A amplifier should abode in a room that retains the ambient temperature between 32 and 131°F (0 to 55°C), in storage, it can remain in temperatures between -4 and 149°F (-20 to 65°C) to keep the proper operations.

The MR-J4-100A servo amplifier has can be utilized as an amplifier for three rotary servo motors from the HG series; and it may be employed for the TM-RFM018E20 direct drive motor from the TM-RFM series. The servo motor itself can be concatenated to the amplifier by an encoder cable to the CN2 port and a servo motor power to the U, V, and W terminals.

The MR-J4-100A servo amplifier can be linked to a GOT series operator interface by a RS-422/RS-485 cable to the CN3 port. Additionally, a USB communication connector (MR-J3USBCBL3M) can connect a personal computer to the CN5 utilizing the MR configurator.









Combinations of 1-Axis Servo Amplifier and Servo Motor








MR-J4 Servomotors and Amplifiers:


With a capacity range of 50W to 7kW (200V only), both the amplifier and motor size is reduced. We added a high resolution encoder of 4 million pulse/rev, with a speed frequency response of 2500Hz. Additional fetures include advanced one-touch auto tuning and advanced vibration suppression control II functions. The MR-J4 motors ahve the same flance size as J3 notors with the lenght of the motor bing the same or smaller than the J3. The same cables for power, encoder and brake can be used for the MR-J3 and MR-J4. MR-J4 Series has four models: MR-J4A (analog/pulse train), MR-J4B, (SSCNET III/H), MR-J4W2B (Dual axis amplifier with SSCNET III/H) and ME-J4W3B (Three axis in one amplifier with SSCNET III/H). In addition, MR-J4 has three motor models available: HG-KR similar to HF-KP, HG-MR similar to HF-MP, and HG-SR similar to HF-SP Series. M-Size software is used to size HG Series motors and setup is made easy using MR-Configurator.
