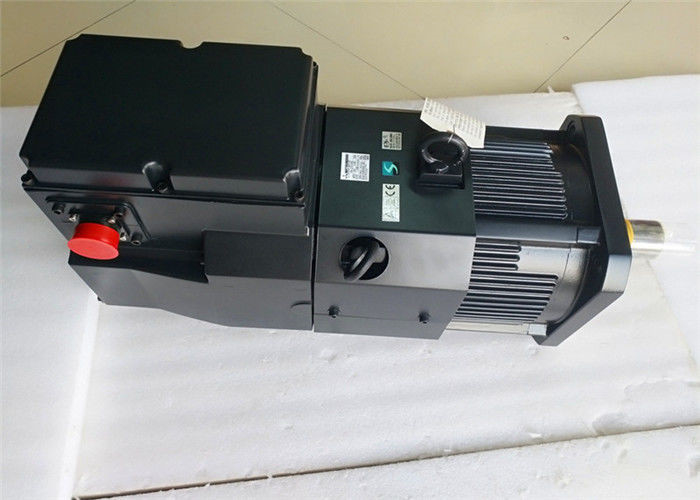

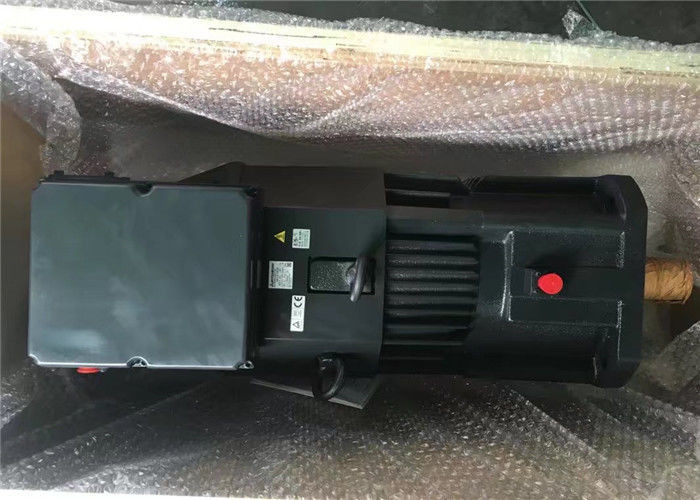

Mitsubishi 37kw HA-LP Series Industrial AC Servo Motor HA-LP37K24K

Name: Low inertia medium / high power servo motor
Model: HA-LP37K2
Servo motor series: low inertia, medium / high power.
Rated output: 37.0kw.
Rated speed: 2000r/min.
Electromagnetic brake: No.
Shaft end specification: Standard (straight axis).
Features: low inertia has low medium and high speed three models, suitable for different applications as a standard, 30KW and above servo motor can be installed flange or bracket.
IP level: IP44.
Application example:
1, injection molding machine.
2, semiconductor manufacturing equipment.
3, large material handling system.
4, stamping machine.
Abundant motor product line can optimize the performance of the machine.
Has a rich motor product line including a rotary servo motor, linear servo motor and direct drive motor.

Motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 15.0kw.
Interface type: SSCNET type III fiber communication.
Full closed loop control.

Servo Amplifier <MR-J3-11KB to MR-J3-22KB> & Servo Motor <HA-LP Series>

The servo amplifiers, large capacity (11 to 22kW), 200V series have now been added to the MELSERVO-J3 series SSCNET III compatible (new high-speed serial bus).
The 22kW servo amplifier has been downsized from the existing model (25% smaller compared to MR-J2S), allowing the users' system more compact.
The compatible servo motors, low-inertia HA-LP series, are equipped with a high-resolution absolute encoder 262144p/rev as standard specifications.
Typically suitable for the following applications: injection-molding machines, semiconductor manufacturing devices, large material handling systems and printing machines.
The servo amplifiers, MR-J3-11KB to 22KB and the servo motors, HA-LP series also conform to the global standards (EN, UL, cUL standards)
