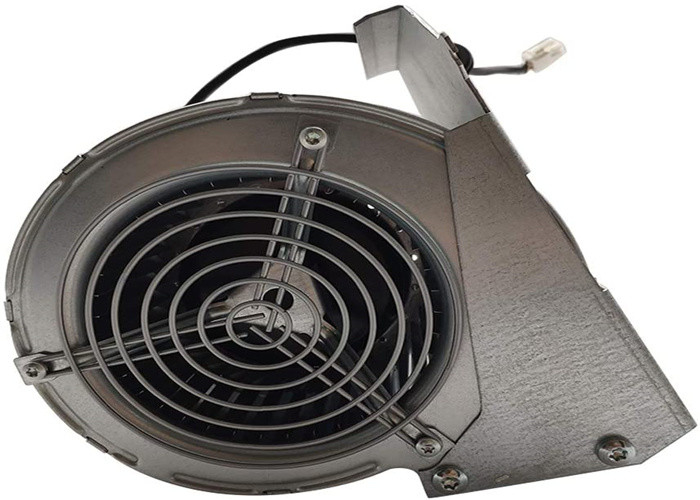

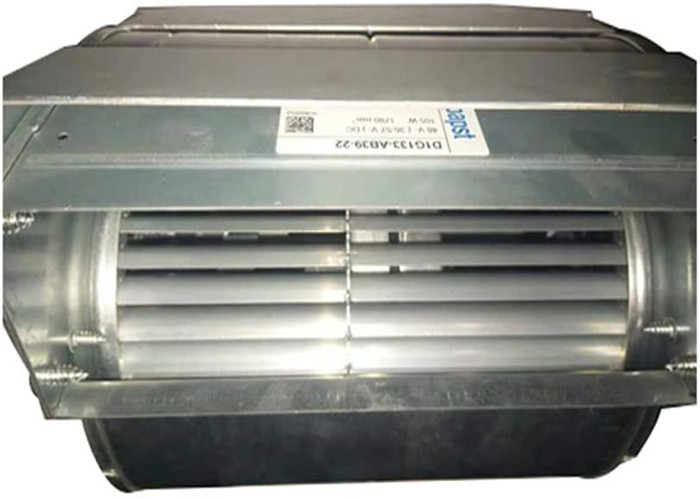

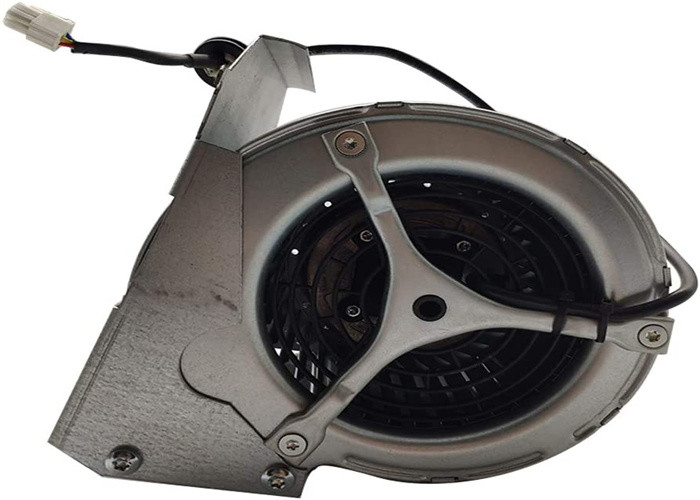

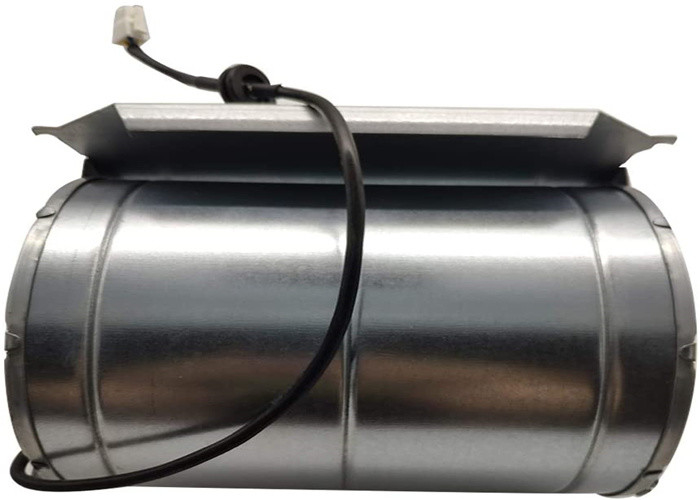

EBM Forward Leaning Industrial Centrifugal Fan D1G133-AB39-22 D1G133-AB39-52

EBM papst D1G133-AB39-22/D1G133-AB39-52 Forward Leaning Centrifugal Fan 48V 105W

Item specifics
Type D1G133-AB39-52
Motor M1G074-BF
Nominal voltage VDC 48
Nominal voltage range VDC 36 .. 57
Frequency Hz -
Type of data definition rfa
Speed min-1 1780
Power input W 105
Current draw A 2.8
Max. ambient temperature °C 60

Technical features
General description Integrated electronics
Size 133 mm
Operation mode Continuous operation (S1)
Direction of rotation Clockwise, seen on rotor
Mounting position Any
Humidity class F0
Insulation class "B"
Cable exit Variable
Motor bearing Ball bearing
Mass 3.3 kg
Material of electronics housing Rotor: Coated in black
Material of impeller Sendzimir galvanized sheet steel
Motor protection Reverse polarity and locked-rotor protection
Type of protection IP 42
Protection class I
Technical features Control input 0-10 VDC / PWM, tach outp
