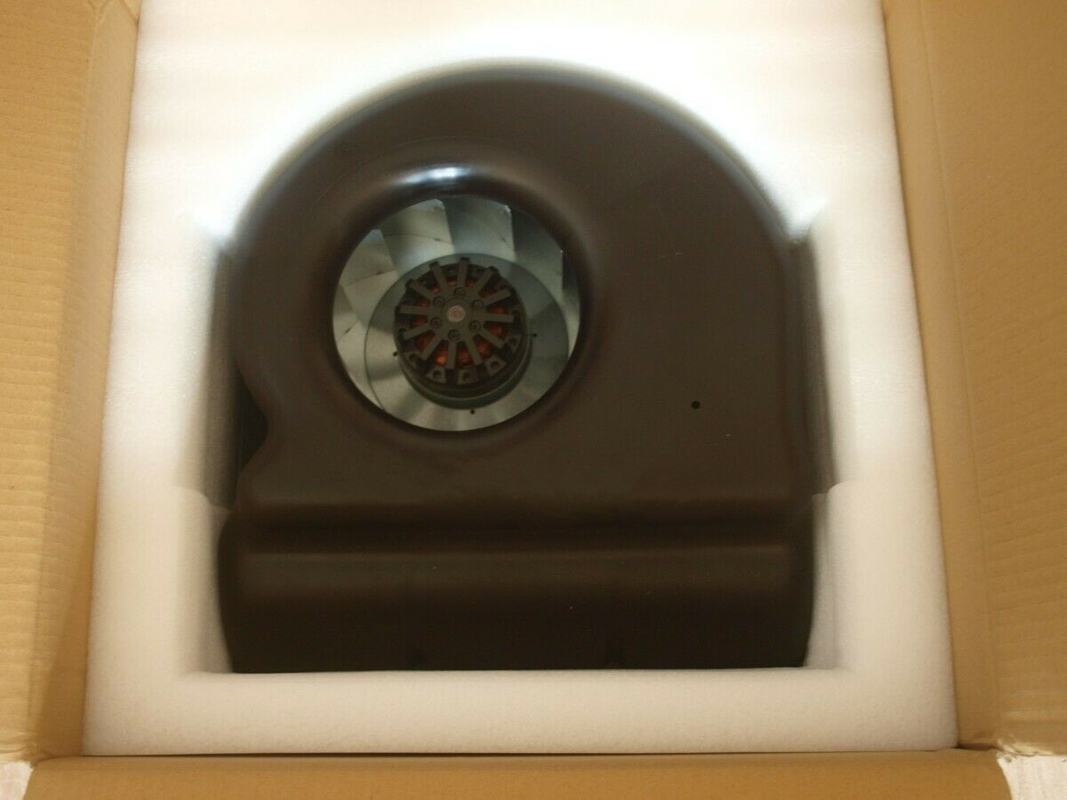

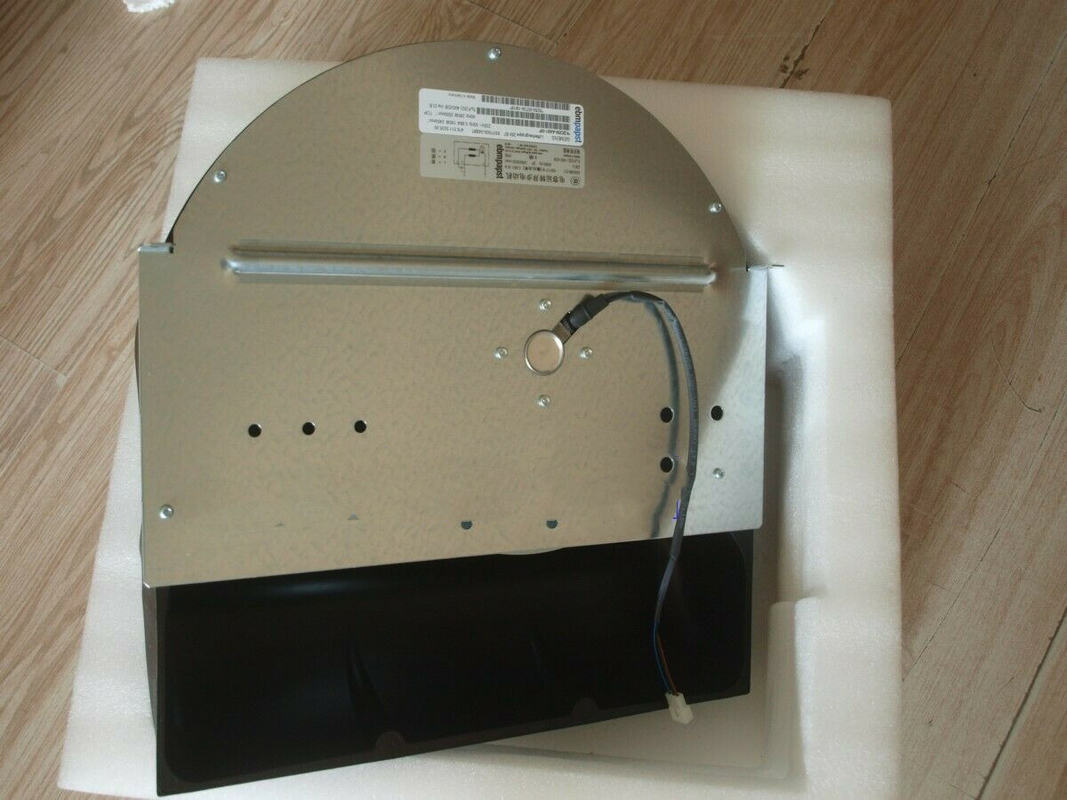

New EBM Fan K2E250-AA01-09 230VAC 275W 2450RPM Inverter VFD Cooling Fan

New EBM Fan K2E250-AA01-09 230VAC 275W 2450RPM Inverter VFD Cooling Fan

Descripition
Model Number: 6SY70000AB67
DISCONTINUED BY MANUFACTURER
The impeller diameter Phi 250mm
motor speed]: 2650 + 10% RPM
working frequency: 50/60 Hz
working voltage: 230VAC
voltage range: 180V... 240V AC
working current: 0.86A
input power: 195/285W
maximum wind: 1450 m3/h
motor speed: 2450/2500min-1
starting capacitor: 6.0uF /450V
working temperature: -20.. 60 C
maximum wind pressure: 0.. 580 Pa

service life: L10 life expectancy is 30000 hours at 40 C.
noise index: 76.5 dBA
insulation level: F level (155)
protection grade: IP20

SAFETY REGULATIONS AND INFORMATION
Read these operating instructions carefully before starting work on the  device. Observe the following warnings to prevent malfunctions or
danger to persons.
These operating instructions are to be regarded as part of the device.
The device is only to be sold or passed on together with the operating  instructions.
These operating instructions may be duplicated and distributed to inform about potential dangers and their prevention.

DANGER
Indicates an imminently hazardous situation which will result in death or serious injury if the specified actions are not taken.
Compliance with the instructions is imperative.

WARNING
Indicates a potentially hazardous situation which can result in death or serious injury if the specified actions are not taken.
Exercise extreme caution while working.

CAUTION
Indicates a potentially hazardous situation which can result in minor or moderate injury or damage to property if the specified
actions are not taken.

NOTE
A potentially harmful situation can occur and, if not avoided, can lead to property damage
