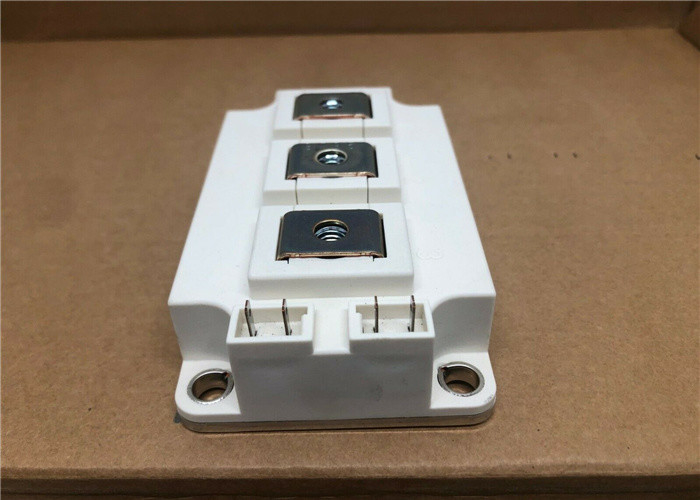

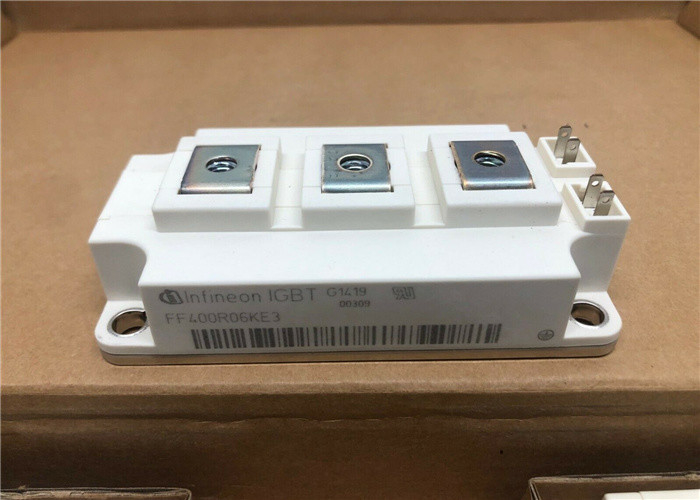

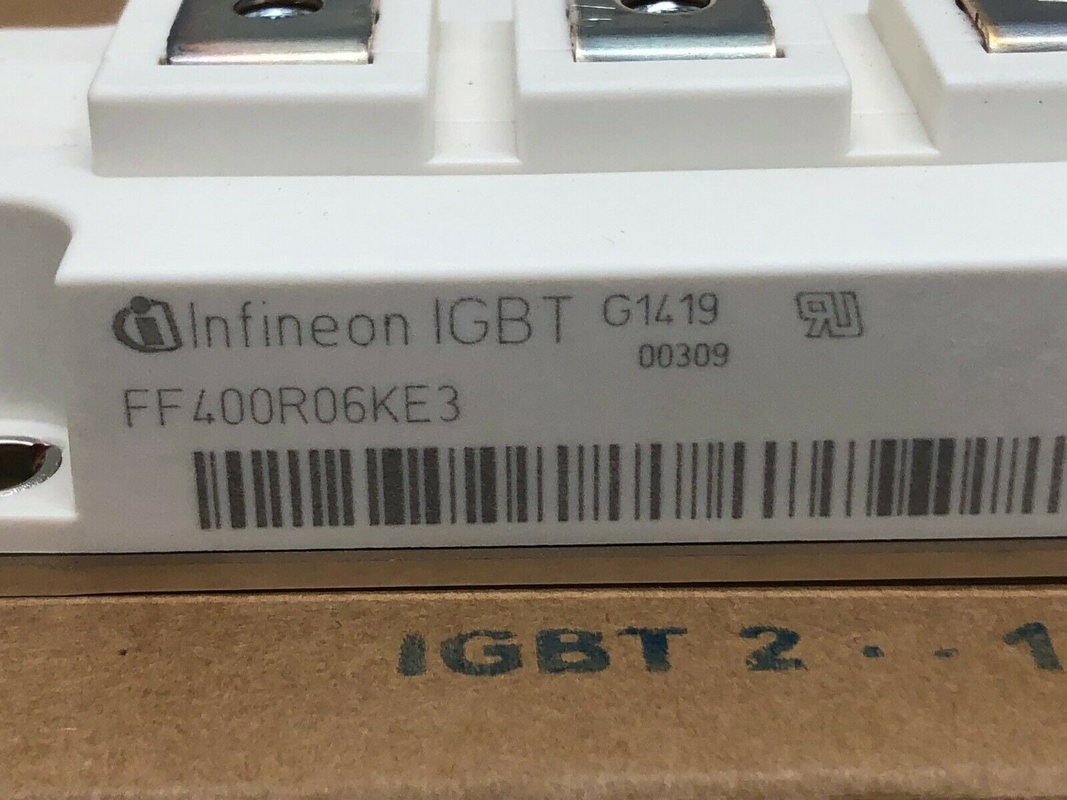

IGBT FF400R06KE3 62mm C-Serien Modul mit Trench Infineon Technologies AG
Summary of Features
•Superior solution for frequency controlled inverter drives
•UL/CSA Certification with UL1557 E83336
•Operating temperature up to 150 °C
•Optimized switching characteristic like softness and reduced switching losses
•Existing packages with higher current capability
•RoHS compliant
Benefits
•PrimeSTACKs available for fast development with minimum effort
•Flexibility
•Optimal electrical performance
•Highest reliability
Specifications
Product Attribute Attribute Value Search Similar
Manufacturer: Infineon
Product Category: IGBT Modules
RoHS: N
Product: IGBT Silicon Modules
Configuration: Dual
Collector- Emitter Voltage VCEO Max: 600 V
Continuous Collector Current at 25 C: 500 A
Package / Case: 62 mm
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 150 C
Packaging: Tray
Height: 30.9 mm
Length: 106.4 mm
Series: Trenchstop IGBT3 - E3
Technology: Si
Width: 61.4 mm
Brand: Infineon Technologies
Mounting Style: Chassis Mount
Maximum Gate Emitter Voltage: 20 V
Product Type: IGBT Modules
Factory Pack Quantity: 10
Subcategory: IGBTs
Tradename: TRENCHSTOP
Part # Aliases: SP000085375 FF400R06KE3HOSA1
Unit Weight: 12 oz
