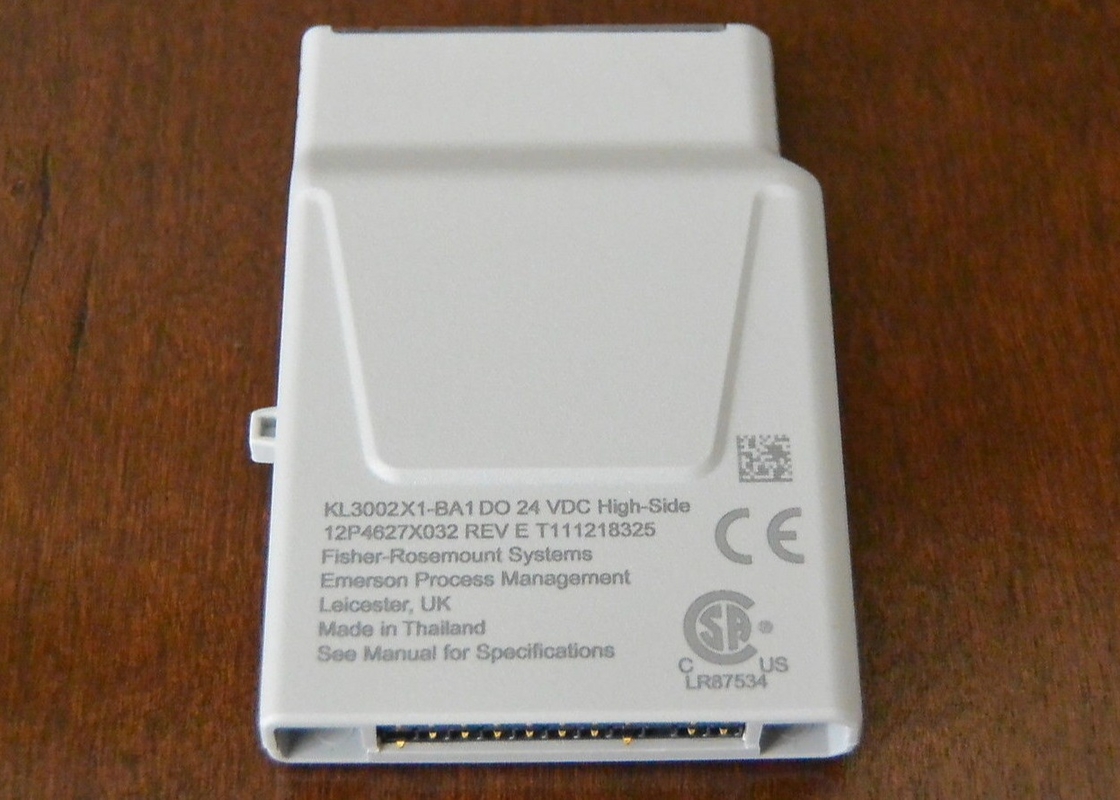

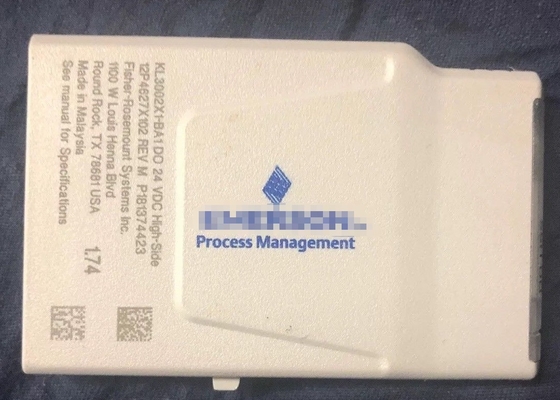

EMERSON KL3002X1-BA1 1mm Peak 13.2Hz DO 24 VDC HIGH SIDE CHARM

EMERSON KL3002X1-BA1 1mm Peak 13.2Hz DO 24 VDC HIGH SIDE CHARM

Nore information:

CHARM Bus power rating +6.3 VDC at 32 mA
Field circuit rating +24 VDC at 5 mA

Ambient Temperature:- 40 to 70o C
Shock:10g ½ Sinewave for 11 msec
Vibration:1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
Airborne Contaminants:ISA-S71.04 –1985
Airborne Contaminants Class:G3
Relative Humidity :5 to 95% Non-Condensing IP 20
Rating Terminal block key position:3C

Note: Refer to the product label for serial number and location and date of manufacture.

Warning: This product has specific instructions for installation, removal and operation in hazardous areas. Refer to document 12P5403 "DeltaV Electronic Marshalling Digital Automation System (CHARM I/O Subsystem) Zone 2 Installation Instructions". Other installation instructions are available in the " DeltaV S-series and CHARMs Hardware Installation" manual.

This unit cannot be removed or inserted with system power energized.

Non-sparking field circuits MUST be de-energized before removing and inserting a CHARM.

For non-sparking circuits, the fuse on a CHARM terminal block cannot be removed when field power is energized.

A keying system ensures compatibility between a CHARM and the CHARM terminal block when the CHARM is installed on the terminal block.

The terminal block keys are automatically set the first time the CHARM is installed on the terminal block. To install another CHARM type on a terminal block, reset the keys by removing the terminal block and releasing the keys from the locked position.
