Product Overview

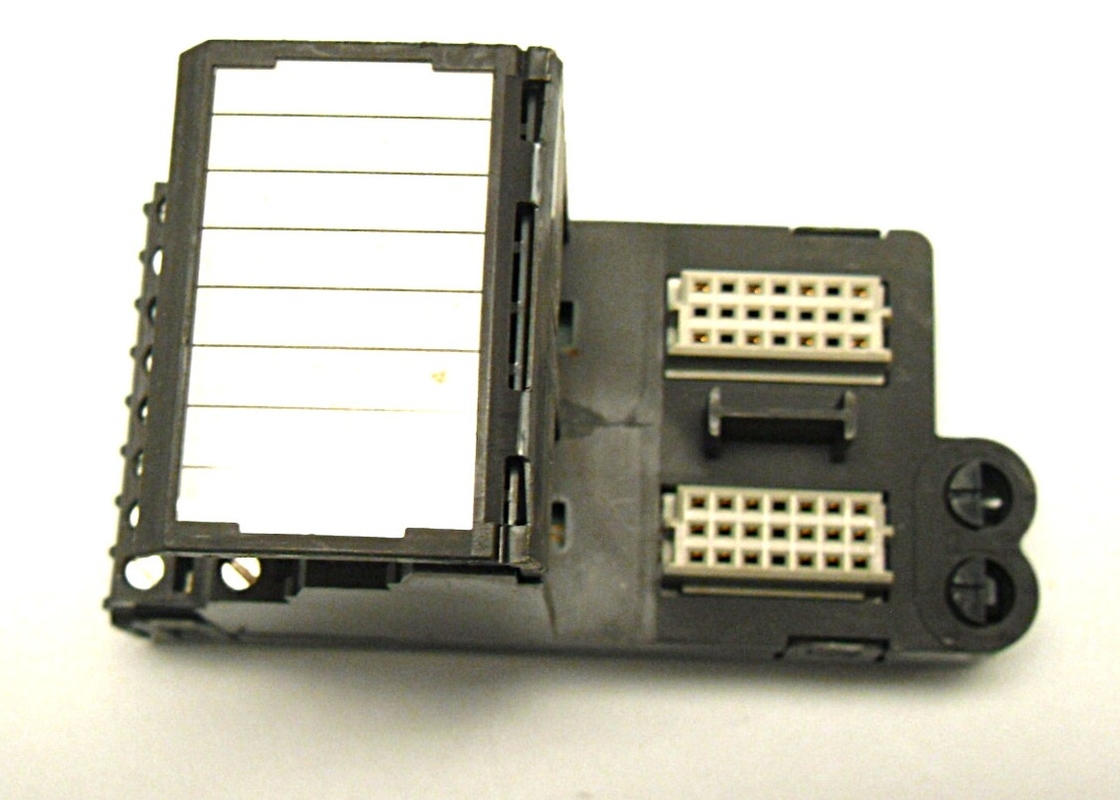

The Emerson DeltaV KJ4001X1-CJ1 is a 32-channel terminal block engineered for hazardous environments, holding certification for operation in Zone 2 hazardous areas. It boasts a voltage rating of 30 VDC and a maximum current capacity of 1 A. Specifically designed to work with DeltaV I/O cards, this terminal block supports tool-free installation and removal, streamlining maintenance and setup processes.


Hazardous Atmosphere Classification

• II 3 G
• Nemko Certification No.: 02ATEX431U
• EEx nA IIC T4
• Additional safety certification: Approved under LR87534 for use in hazardous locations categorized as Class I Division 2, with a temperature rating of T4.

Power Specifications

• Voltage Rating: 30 VDC
• Maximum Current: 1 A
• Environmental Specifications
• Ambient Temperature Range: 0 to 60°C
• Shock Resistance: 10g (½ sinewave, duration of 11 msec)
• Vibration Tolerance: 1mm peak-to-peak (frequency range: 5 to 16 Hz); 0.5g (frequency range: 16 to 150 Hz)
• Airborne Contaminants Class: Compliant with ISA-S71.04 – 1985 Airborne Contaminants Class G3
• Relative Humidity: 5 to 95% (non-condensing)
• IP Rating: IP 20

Additional Details

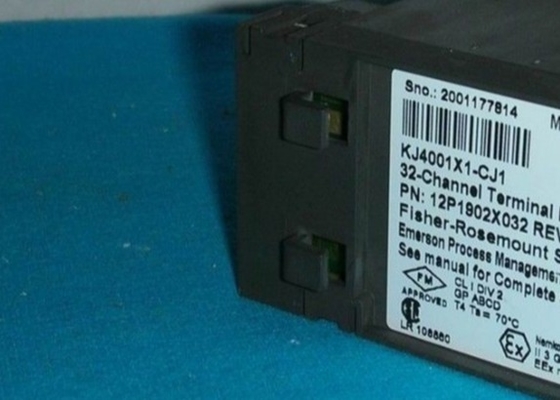

For information including the serial number, production date, and installation site, refer to the product label.
A rotary keying system is integrated to guarantee compatibility between I/O cards and the terminal block.
Important Note: This unit is not intended for user-performed maintenance or adjustments. It contains no user-serviceable components and must not be disassembled.
Calibration is not required for this product.

More information:

Ambient Temperature:0 to 60o C Shock 10g ½ Sinewave for 11 msec
Vibration:1mm Peak to Peak from 5 to 16Hz; 0.5g from 16 to 150Hz
Airborne Contaminants:ISA-S71.04 –1985 Airborne；Contaminants Class G3
Relative Humidity:5 to 95% Non-Condensing IP 20 Rating

Note: Refer to the product label for serial number and location and date of manufacture.

Warning: This product has specific instructions for installation, removal and operation in hazardous areas. Refer to document 12P2046 "DeltaV  Scalable Process System Zone 2 Installation Instructions". Other installation instructions are available in the "Installing Your DeltaV Automation System" manual.

A rotary keying system ensures compatibility between I/O cards and terminal blocks after installation is complete. This terminal block must have the keys set for the I/O card it is to be used with.
